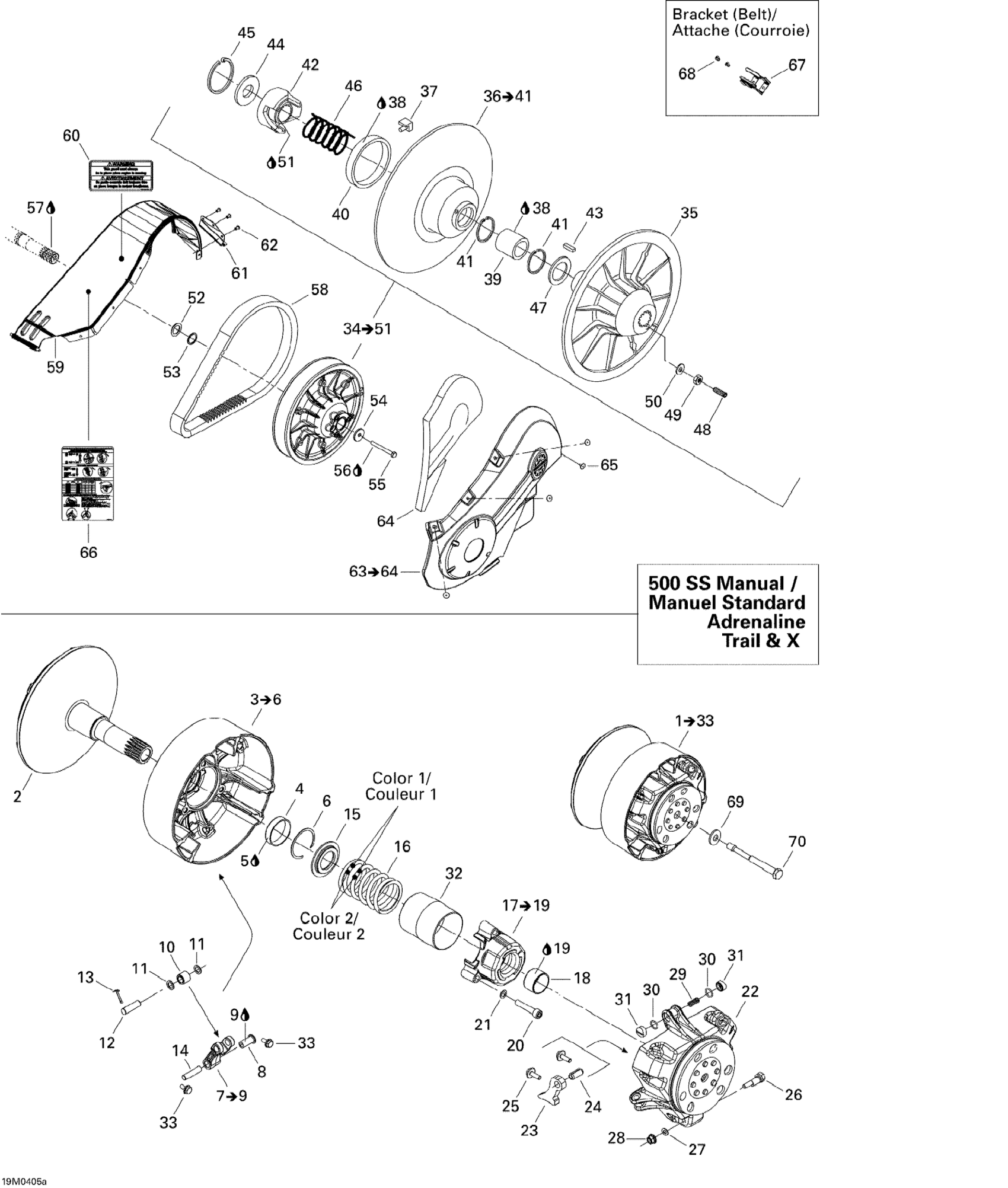

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 05- Pulley System 500 Ss Manual Std Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Pin

417004308

$13.99

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

SPRING, GREEN/WHITE - Call your local BRP dealership

417222371

Unavailable

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

Governor Cup

417222213

Unavailable

23

Ramp 412

417222515

$39.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

Spring

417005700

$4.76

30

O-Ring

732401030

$0.98

31

Slider Shoe This part replaces 420460045.

417223021

$5.90

32

Guard

417009205

$21.99

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Fixed Flange

417126499

Unavailable

36

Sliding Flange Ass’Y | Includes items 36 to 41

417126501

Unavailable

37

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

38

Loctite 609, 10 ml

413703100

$26.99

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Cushion

417126514

Unavailable

41

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

42

CAME - Call your local BRP dealership

417126718

Unavailable

43

Key

414820800

Unavailable

44

Washer

417126555

Unavailable

45

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

46

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

47

Thrust Washer

504141900

Unavailable

48

Socket Set Screw M6 X 30

206263044

Unavailable

49

Hex. Nut M6

232061414

$0.53

50

WASHER - Call your local BRP dealership

420245370

Unavailable

51

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

52

Spacer

504149100

$12.99

53

Shim

504112000

$8.59

54

Strength Washer

517302322

$12.63

55

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

58

Drive Belt

417300586

$154.99

59

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

60

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

61

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

62

Pop Rivet 3/16"

390402200

$0.35

63

Side Protector Ass'y | Includes 49 to 50

417300248

Unavailable

64

Foam

417300246

Unavailable

65

Pop Rivet 3/16"

293150103

$0.55

66

Decal, Suspension Adjustment

516001639

Unavailable

67

Bracket

517281905

$18.49

68

Pop Rivet 3/16"

390402200

$0.35

69

Spring Washer 14 mm

250200006

$6.99

70

Drive Pulley Bolt

417120000

$65.49
