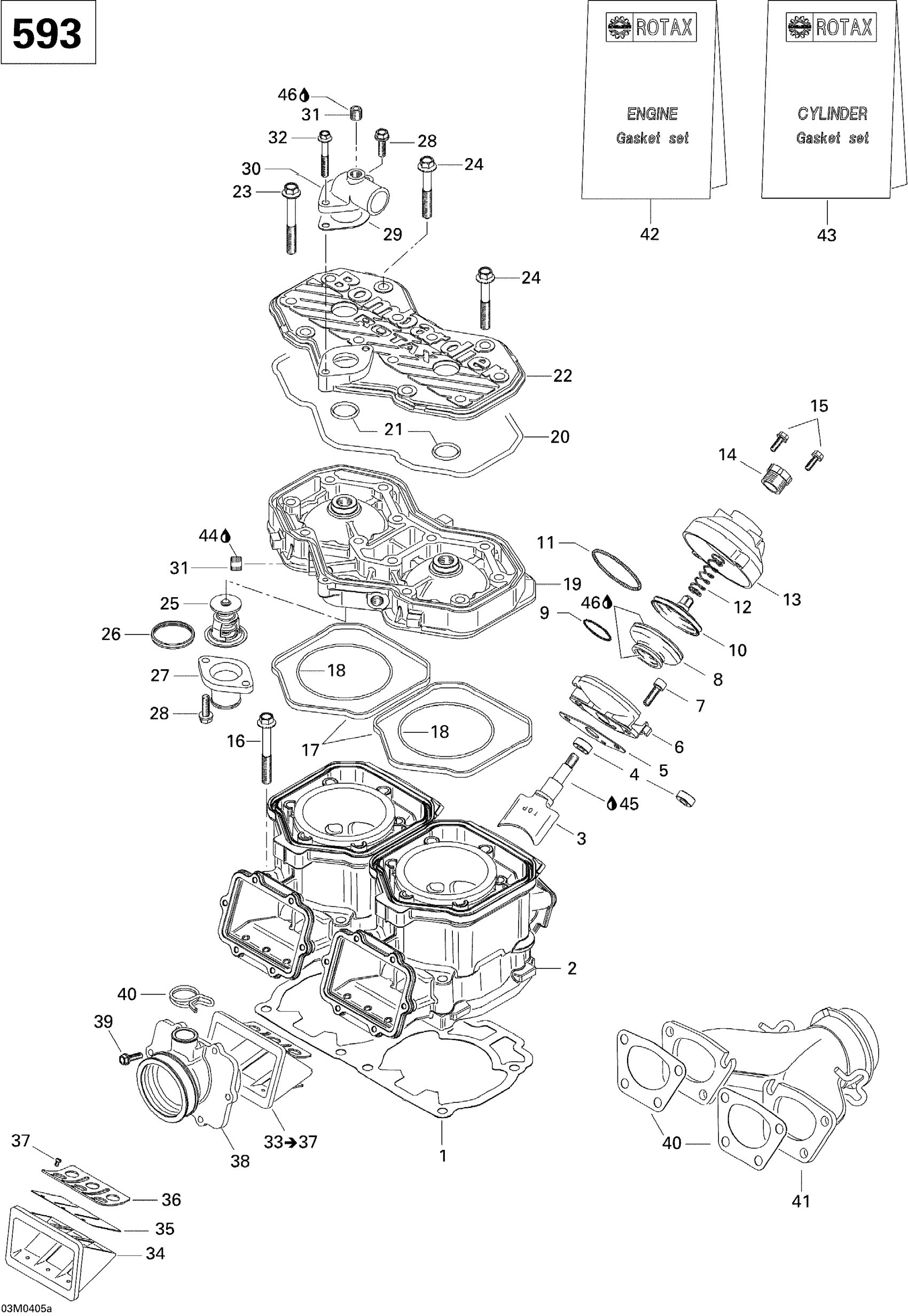

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Cylinder, Exhaust Manifold, Reed Valve (593) Diagram

#

Description
Price

1

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

Gasket 0.5 mm

420431420

$23.10

Gasket 0.6 mm

420431421

$18.63

Gasket 0.7 mm

420431422

$26.09

Gasket 0.8 mm

420431423

$24.60

2

Cylinder With Sleeve

420613628

$435.04

Cylinder With Sleeve

420613628

$435.04

3

Exhaust Valve

420854371

$55.94

4

Oil Seal | Included in gasket kit

420950732

$8.09

5

Gasket

420250239

$6.42

6

Valve Housing

420854266

$91.01

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

Hex. Tapping Screw M5 X 20

420841555

$1.63

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

17

Rubber Ring

420931590

$5.52

18

O-Ring This part replaces 420850540.

293300026

$3.06

19

CYLINDER HEAD - Call your local BRP dealership

420613845

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$13.18

21

O-Ring

420430782

$5.06

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

24

Hex. Screw M8 X 56.5

420941627

$8.09

25

Thermostat This part replaces 414834100.

420922519

$57.43

26

Sealing Ring

420931272

$14.90

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

29

Gasket

420850338

$9.97

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

Reed Valve Ass'y

420924519

$49.22

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Reed Pedal

420924532

$42.51

36

Reed Pedal Stop

420924539

$11.18

37

Phillips Screw M3 X 5

420941215

$1.63

38

CARBURETOR SOCKET - Call your local BRP dealership

420867885

Unavailable

39

Taptite Screw M5 X 16

420941928

Unavailable

40

Gasket

420931610

$11.04

41

Exhaust Manifold

420673131

$263.40

42

Gasket Set, Engine

420893070

$203.70

43

Gasket Set, Cylinder

420893075

$161.91

44

Loctite 243, 10 ml

293800060

$21.49

45

Molykote G-N, 50 g

420297433

$26.09

46

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
