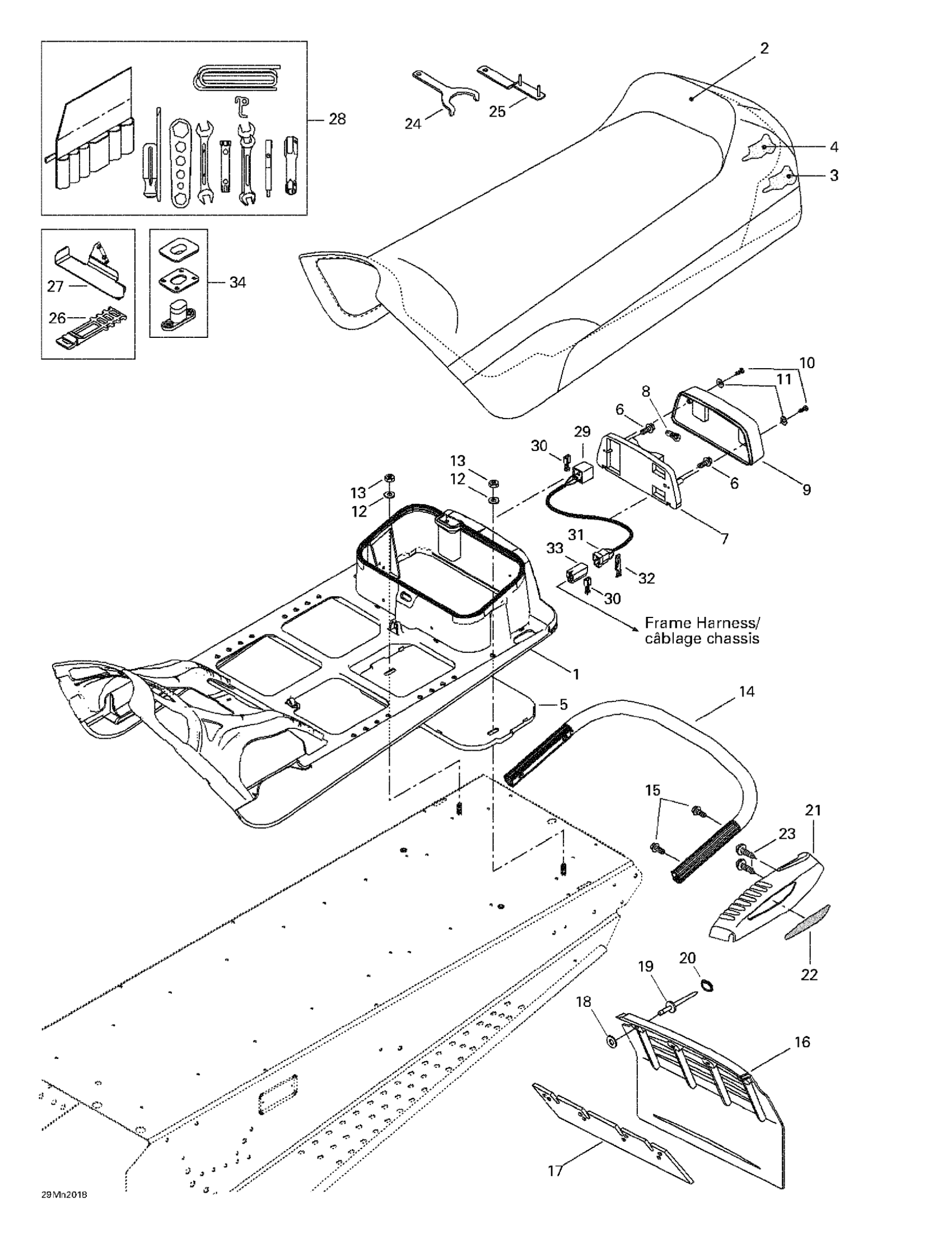

Ski-Doo MX Z 500 SB (black), 2000 09- Seat And Accessories Diagram
#
1
Seat Base
572107600
Unavailable
2
Seat Cover | MX Z 500.
510003749
Unavailable
Seat Cover
510003811
Unavailable
Seat Cover | MX Z 700. MX Z 700 SB.
510003750
Unavailable
Seat Cover | MX Z 700 SB (Black).
510003814
Unavailable
Seat Cover | MX Z 700 SB Millennium Edition.
510003790
Unavailable
3
Seat Foam
510003608
Unavailable
4
Seat Foam
510003500
Unavailable
5
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
6
Hex. Screw #10 X 1"
732603006
Unavailable
7
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
11
Washer - Call your local BRP dealership
414516400
Unavailable
14
REAR BUMPER - Call your local BRP dealership
518318200
Unavailable
Rear Bumper | Mach Z R Millennium Edition.
518321981
Unavailable
16
Snow Guard
520000180
Unavailable
SNOW GUARD - Call your local BRP dealership
572092100
Unavailable
Snow Guard, Canada/Us
520000223
Unavailable
17
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
20
Cap
415073300
Unavailable
21
RH Moulding
572092200
Unavailable
RH Moulding | Mach Z. Mach Z R.
518321582
Unavailable
LH Moulding
572092300
Unavailable
LH Moulding | Mach Z. Mach Z R.
518321581
Unavailable
22
RH Reflector, Red
516000237
Unavailable
RH Reflector, Yellow, Europe | SE GT Europe
516000241
Unavailable
LH Reflector, Red
516000238
Unavailable
LH Reflector, Yellow, Europe | SE GT Europe
516000242
Unavailable
23
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
24
ADJUSTMENT WRENCH - Call your local BRP dealership
529035582
Unavailable
26
LATCH - Call your local BRP dealership
570069700
Unavailable
27
Tool Kit Support
518321999
Unavailable
29
Female Terminal Housing, 3 Circuits
515175250
Unavailable
31
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
32
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
33
Female Housing
409204300
Unavailable
34
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
