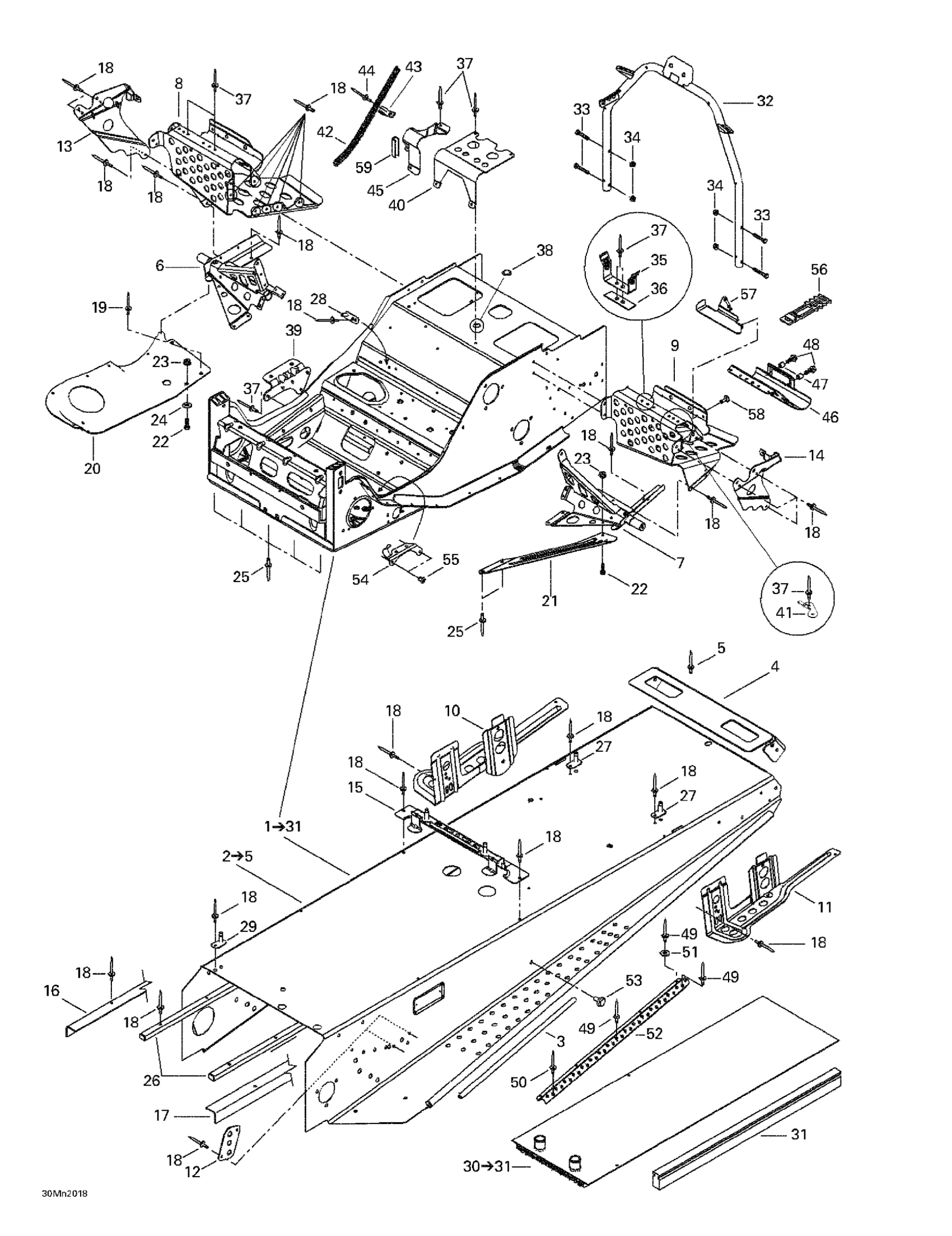

Ski-Doo MX Z 500 SB (black), 2000 09- Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 31.

518322091

Unavailable

2

Forming Frame | Includes 2 - 5.

518322115

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

REAR CAP - Call your local BRP dealership

518321303

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518319722

Unavailable

9

LH Footrest

518319723

Unavailable

10

RH Slide Bracket

518319742

Unavailable

11

LH Slide Bracket

518319743

Unavailable

12

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

16

RH Frame Reinforcement

518321561

Unavailable

17

LH Frame Reinforcement

518321562

Unavailable

18

Pop Rivet 3/16"

390402200

$0.35

19

Pop Rivet 3/16"

390402300

$0.75

20

RH Bottom Pan Plate | 600

518319760

Unavailable

21

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

22

Hex. Screw M5 X 20

207152044

$0.90

23

Hex. Flange Elastic Nut M5

233251414

$1.04

24

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

25

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

26

Frame Protector

518321543

Unavailable

27

Guide

518319730

Unavailable

28

Double Bracket

518319728

Unavailable

29

Guide

518321604

Unavailable

30

Rear Radiator | Includes 29 - 30.

517296300

Unavailable

31

Radiator Protector

518321655

Unavailable

32

Handle Support

518321957

Unavailable

33

Hex. Flange Screw M6 X 35

207663544

$0.90

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Belt Guard Bracket

518202100

$17.49

36

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

37

Pop Rivet 3/16"

390402200

$0.35

38

CAP - Call your local BRP dealership

414859400

Unavailable

39

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

40

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

41

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

42

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

43

Open Clamp

518321570

$7.69

44

Pop Rivet 3/16"

390406500

$0.88

45

Hose Support

518319762

Unavailable

46

Toe Hold (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.

518321571

Unavailable

47

Insert

293450275

$12.99

48

Hex. Flange Screw M6 X 16

207661644

$0.74

49

Pop Rivet 3/16"

390402200

$0.35

50

Pop Rivet 3/16"

390402300

$0.75

51

Flat Washer

517225900

$0.18

52

Non-Skid Strip (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.

518321714

Unavailable

Strip (Chrome) | Mach Z R Millennium Edition.

518321980

Unavailable

53

Panel Fastener

518321954

$7.69

54

Cable Support

515175254

Unavailable

55

Pop Rivet 3/16"

390402300

$0.75

56

LATCH - Call your local BRP dealership

570069700

Unavailable

57

Tool Kit Support

518321999

Unavailable

58

Pop Rivet 3/16"

390406500

$0.88

59

Was 271000110 Protection Trim

219704353

$15.99
