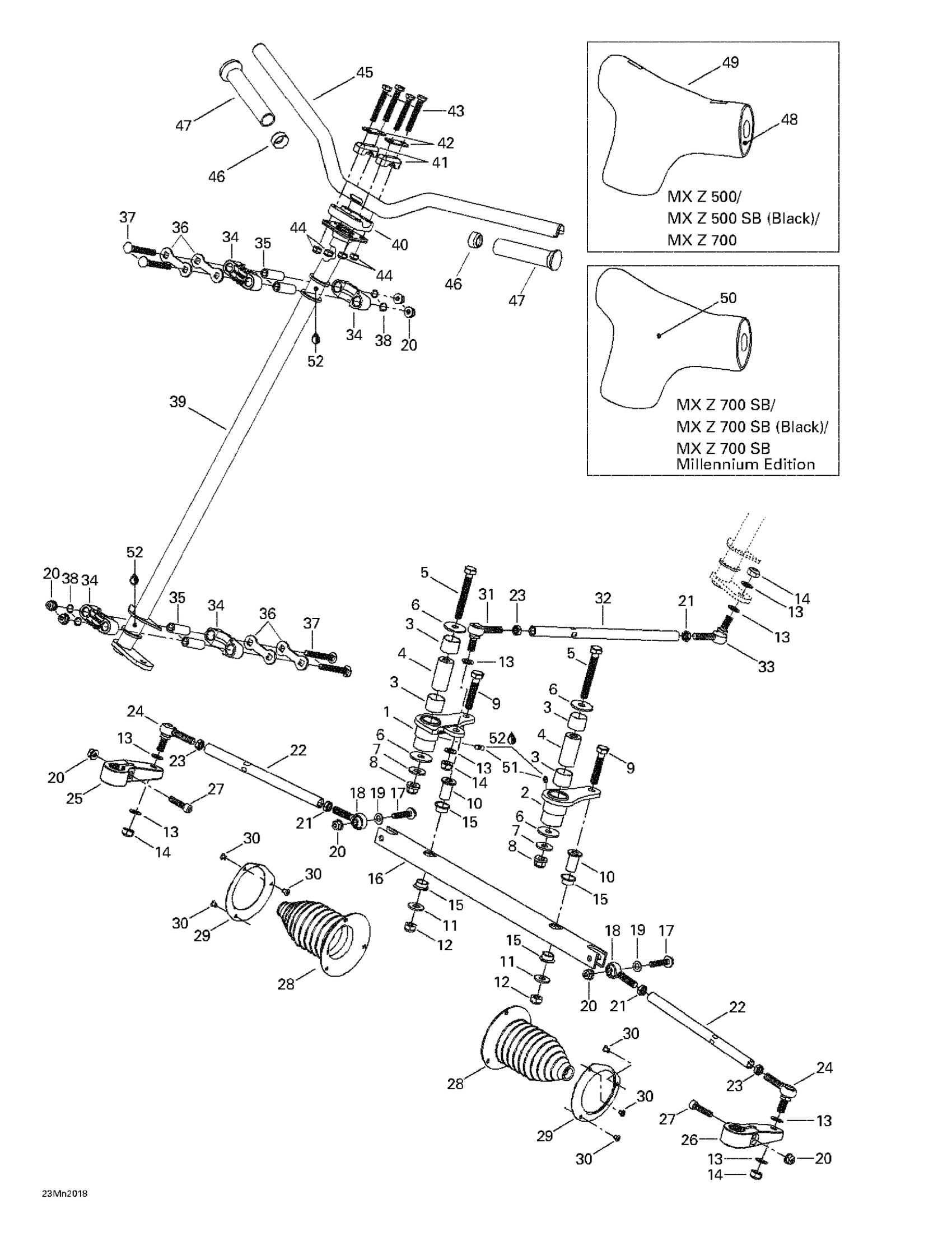

Ski-Doo MX Z 500 SB (black), 2000 07- Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506146600

Unavailable

2

LH Swivel Arm

506146700

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

$3.38

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

503175800

$3.28

14

Elastic Flange Nut M10

232501416

$1.48

15

Swivel Bushing

503191555

$7.83

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

$1.48

18

LH Ball Joint

506151101

Unavailable

19

Washer

506151252

$3.17

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

LH Threaded Hex. Jam Nut M10

250100016

$0.74

22

Tie-Rod

506151190

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.74

24

Ball Joint

506151491

$45.99

25

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

RH Steering Arm | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

506151307

Unavailable

26

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

LH Steering Arm | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

506151308

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

29

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

30

Pop Rivet 3/16"

390402300

$0.75

31

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

32

Inside Tie-Rod

506150300

Unavailable

33

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

34

Housing Half

506150400

$7.62

35

Housing Bushing

506150500

$7.99

36

Stopper Plate

506150600

$4.39

37

Carriage Bolt M8 X 70

207787044

$1.37

38

O-RING - Call your local BRP dealership

506151140

Unavailable

39

Main Tube

506147100

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Steering Support

709400919

$22.49

42

Stiffner

709400509

$4.69

43

Hex. Screw M8 X 55

207085544

$1.68

44

Hex. Elastic Stop Nut M8

232581414

$0.56

45

Handlebar (STD-TRAIL-ADR)

506151138

Unavailable

46

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

47

RH Grip 6-1/2"

506151530

$16.49

48

Foam

506151262

Unavailable

49

Cover

506151263

Unavailable

50

Steering Pad | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

506151316

Unavailable

51

Grease Fitting

408200700

$3.49

52

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
