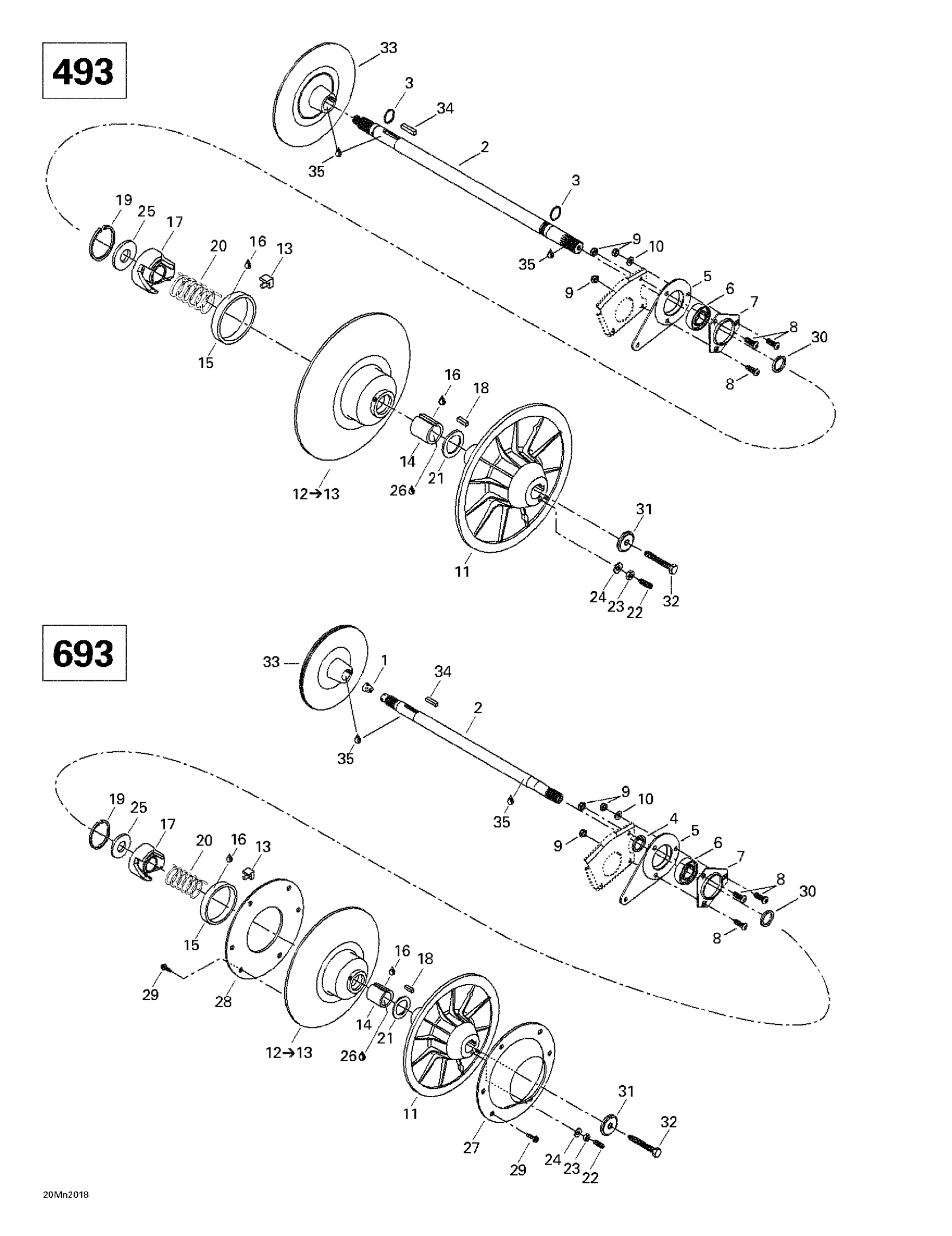

Ski-Doo MX Z 500 SB (black), 2000 05- Driven Pulley Diagram
#
Description
Price
1
CORK - Call your local BRP dealership
414784800
Unavailable
2
COUNTERSHAFT - Call your local BRP dealership | 550F
504151858
Unavailable
COUNTER SHAFT - Call your local BRP dealership
501026300
Unavailable
6
Bearing-Ball
405408900
Unavailable
BALL BEARING - Call your local BRP dealership
405408200
Unavailable
7
FLANGE - Call your local BRP dealership
501025000
Unavailable
8
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
11
Fixed Flange
417010200
Unavailable
12
Sliding Pulley | Includes 24 - 27.
504143400
Unavailable
13
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
14
BUSHING - Call your local BRP dealership
415011200
Unavailable
15
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
17
Cam 44 Deg. (Summit 600 (Sport)) | Summit 600.
417126333
Unavailable
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
18
Key
414820800
Unavailable
19
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
20
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
21
Thrust Washer
504141900
Unavailable
22
Socket Set Screw M6 X 30
206263044
Unavailable
24
WASHER - Call your local BRP dealership
420245370
Unavailable
25
Washer
504141800
Unavailable
26
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
27
CUP - Call your local BRP dealership
504142000
Unavailable
28
Ring
504142100
Unavailable
29
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
32
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
33
Brake Disk
507032203
Unavailable
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
34
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
35
KEY - Call your local BRP dealership
507021300
Unavailable
