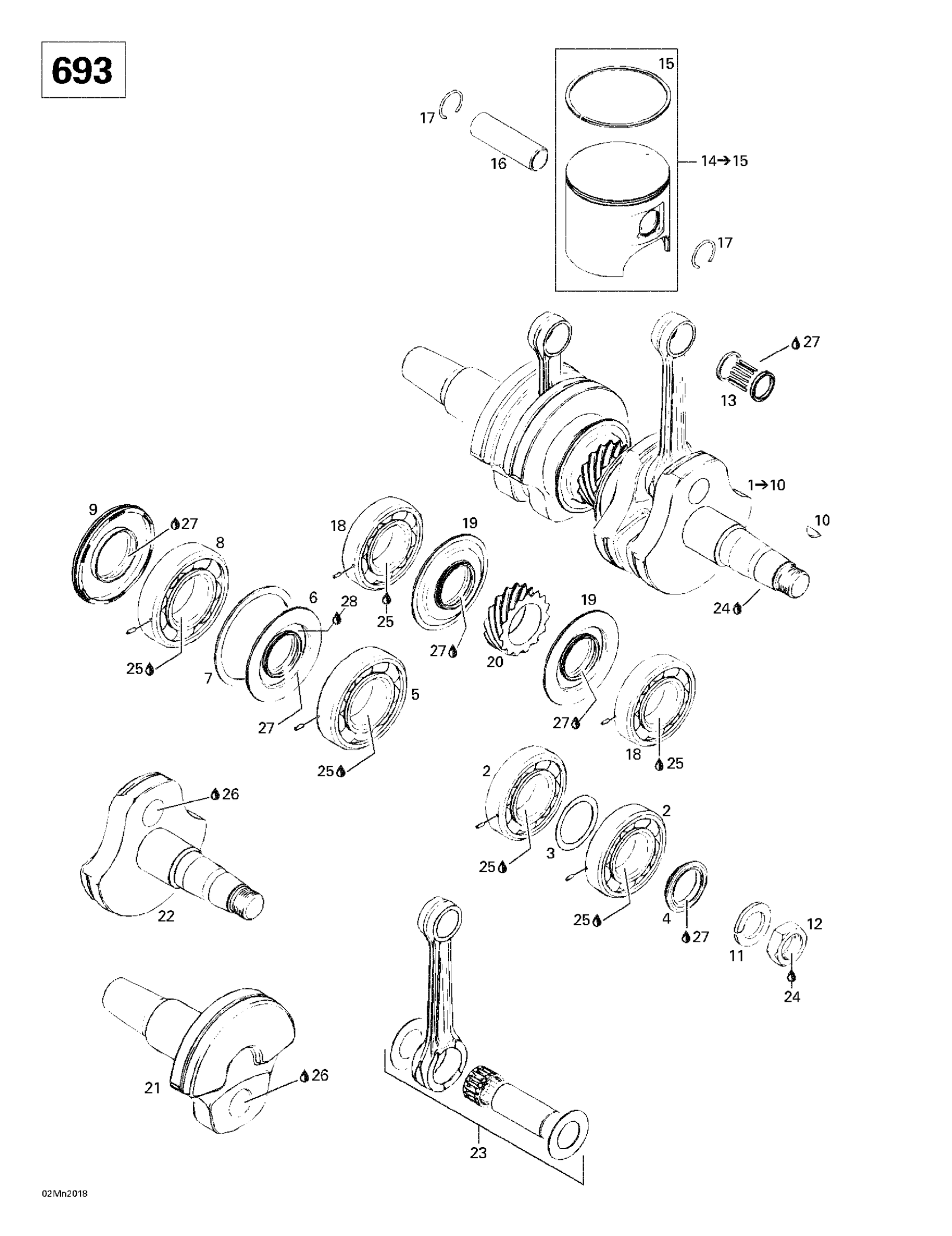

Ski-Doo MX Z 500 SB (black), 2000 Crankshaft And Pistons 2 Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 10. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

861203800

Unavailable

2

Ball Bearing 6207 | With drive pin

420832575

$49.22

3

ADJUSTMENT WASHER - Call your local BRP dealership

420427502

Unavailable

4

Oil Seal

420931795

$16.39

5

Ball Bearing 6208 | With drive pin

420832600

$73.85

6

Oil Seal

420931910

$35.79

7

Washer

420926190

$10.76

8

Ball Bearing 6208 | With drive pin

420832600

$73.85

9

Oil Seal

420931280

$52.99

10

Woodruff Key

420246015

$3.01

11

Lock Washer, 22 mm

420945759

$1.78

12

Hex. Nut, M22 X 1.5

420842239

$16.39

13

Needle Bearing

420832445

$25.34

14

Piston Ass'y (1 Ring 77.88 mm) | Includes 10 - 11. Formula Deluxe 700.

420888293

Unavailable

15

Semi-Trapez Ring 78 mm | Formula Deluxe 700.

420815222

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

17

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

18

Ball Bearing 6207 | With drive pin

420832575

$49.22

19

Oil Seal | Formula Deluxe 700.

290931455

Unavailable

20

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

21

Crankshaft (PTO side) | Formula Deluxe 700.

420818706

Unavailable

22

Crankshaft (MAG side) | Formula Deluxe 700.

420818736

Unavailable

23

Rod Repair Kit (MAG side) | Formula Deluxe 700.

420888283

Unavailable

Rod Repair Kit (PTO side) | Formula Deluxe 700.

420888284

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

26

Sealant Loctite 648

219703000

$41.01

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
