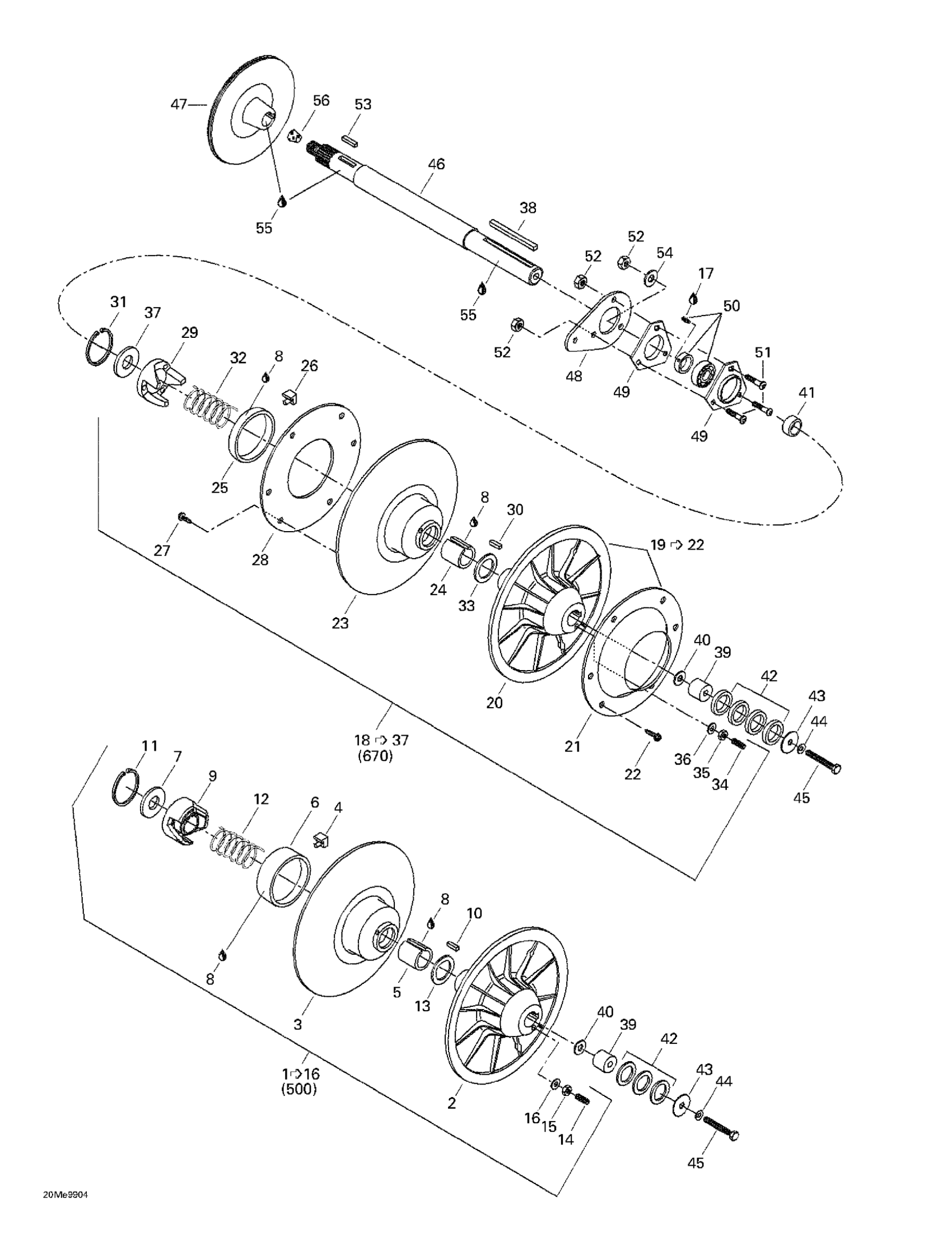

Ski-Doo MX Z 500/670 HO, 1999 05- Driven Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

504141600

Unavailable

3

Sliding Pulley | Includes 24 - 27.

504143400

Unavailable

4

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

5

BUSHING - Call your local BRP dealership

415011200

Unavailable

6

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

7

Washer

504141800

Unavailable

8

Loctite 609, 10 ml

413703100

$26.99

9

Cam 50 Deg | Formula Deluxe 600. Formula Deluxe 700.

417126343

Unavailable

10

Key

414820800

Unavailable

11

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

12

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

13

Thrust Washer

504141900

Unavailable

14

Allen Screw M6 x 30

223563065

Unavailable

15

Hex. Nut M6

232061414

$0.53

16

WASHER - Call your local BRP dealership

420245370

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Fixed Flange Ass'y | Includes 19 - 22. MX Z 670 HO.

504142200

Unavailable

20

Fixed Flange

504141600

Unavailable

21

CUP - Call your local BRP dealership

504142000

Unavailable

22

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

23

Sliding Flange Ass'y | Includes 23 - 28. MX Z 670 HO.

504144000

Unavailable

24

BUSHING - Call your local BRP dealership

415011200

Unavailable

25

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

26

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

27

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

28

Ring

504142100

Unavailable

29

Cam

417126380

Unavailable

30

Key

414820800

Unavailable

31

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

32

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

33

Thrust Washer

504141900

Unavailable

34

Allen Screw M6 x 30

223563065

Unavailable

35

Hex. Nut M6

232061414

$0.53

36

WASHER - Call your local BRP dealership

420245370

Unavailable

37

Washer

504141800

Unavailable

38

Key

414581300

Unavailable

39

Counter Shaft Extension

504091600

Unavailable

40

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

41

Shim

504128300

Unavailable

42

SHIM - Call your local BRP dealership

504108200

Unavailable

43

WASHER - Call your local BRP dealership

517078700

Unavailable

44

Lock Washer 8 mm

234181401

$0.92

45

Hex. Screw M8 x 65

207086544

$1.47

46

Countershaft | Formula Deluxe 670.

504149400

Unavailable

47

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

48

Spacer

501022300

Unavailable

49

FLANGE - Call your local BRP dealership

501025000

Unavailable

50

BALL BEARING WITH COLLAR - Call your local BRP dealership

405408300

Unavailable

51

Allen Screw M8 x 25

732601156

Unavailable

52

Hex. Elastic Stop Nut M8

232581414

$0.56

53

KEY - Call your local BRP dealership

507021300

Unavailable

54

Flat Washer 8 mm

234081410

$0.83

55

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

56

CORK - Call your local BRP dealership

414784800

Unavailable
