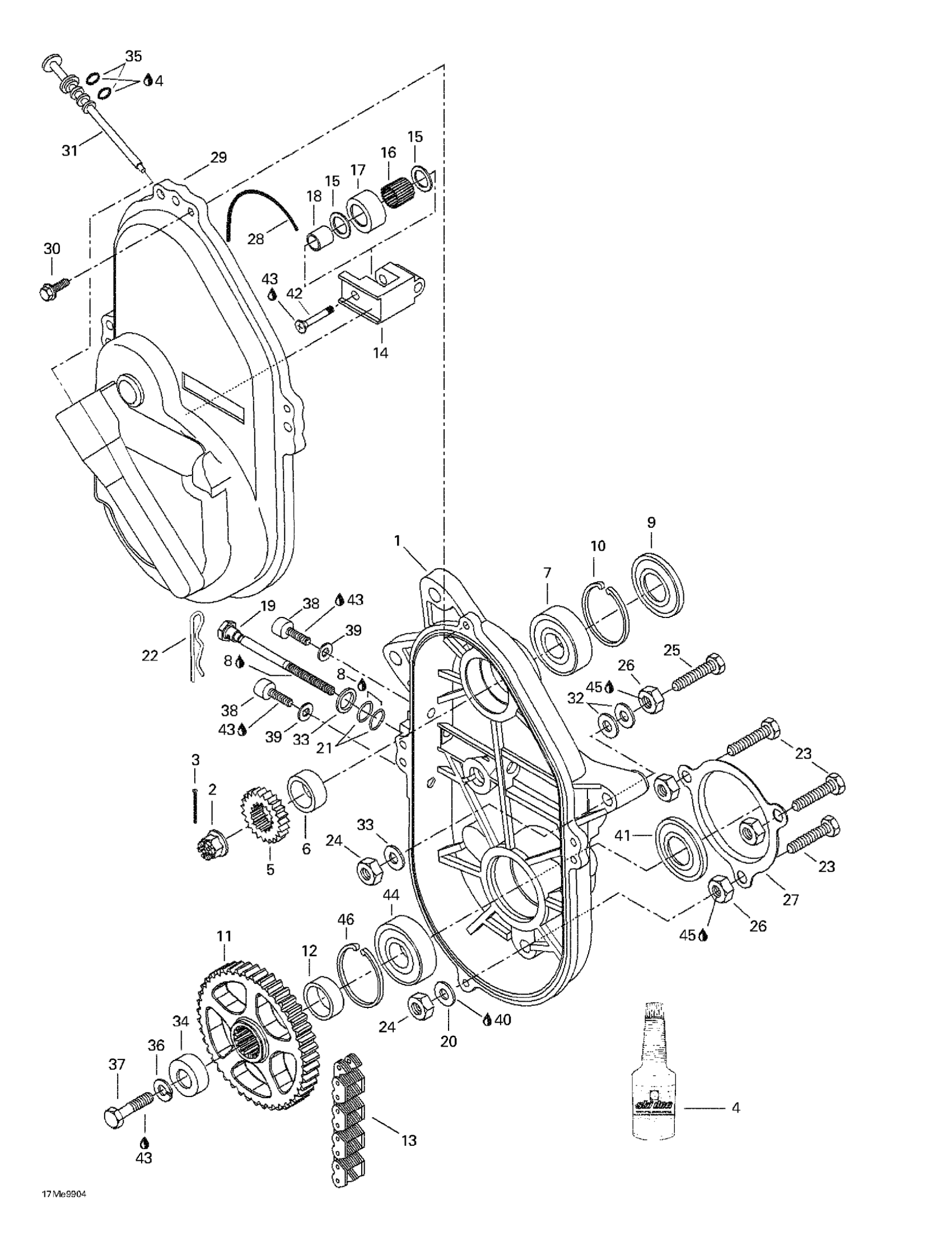

Ski-Doo MX Z 500/670 HO, 1999 05- Chaincase Diagram

#

Description
Price

1

Chaincase | Formula 500 LC.

504151777

Unavailable

2

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

3

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

4

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

5

Sprocket, 23 Teeth (Large)

504085400

$200.99

Sprocket 25 Teeth

504153912

$44.99

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

$12.11

8

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

9

Seal | Formula Z 583. Formula Z 670.

414531200

Unavailable

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

11

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

12

Inner Shim

501021800

Unavailable

13

DRIVE CHAIN (72 LINKS-LARGE) - Call your local BRP dealership | Formula Deluxe 583.

412106700

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

20

Copper Washer

732900020

Unavailable

21

O-Ring

414484400

$7.51

22

Hair Pin

414575600

$1.89

23

Hex. Screw M10 x 45

207104544

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.69

25

Hex. Screw M10 x 70

732601111

Unavailable

26

Spacer

504083800

Unavailable

27

Protector

501022100

Unavailable

28

O-Ring

414362300

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

$134.99

30

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

31

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

32

WASHER - Call your local BRP dealership

504073700

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

Cap

501022400

Unavailable

35

O-RING - Call your local BRP dealership

414969400

Unavailable

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Screw M10 X 25

207102544

$1.37

38

Socket Head Screw M8 x 10

732601132

Unavailable

39

Washer

504082900

$2.64

40

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

41

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

Loctite 271, 10 ml

293800005

$26.99

44

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Circlip (Int-rior)

414784900

Unavailable
