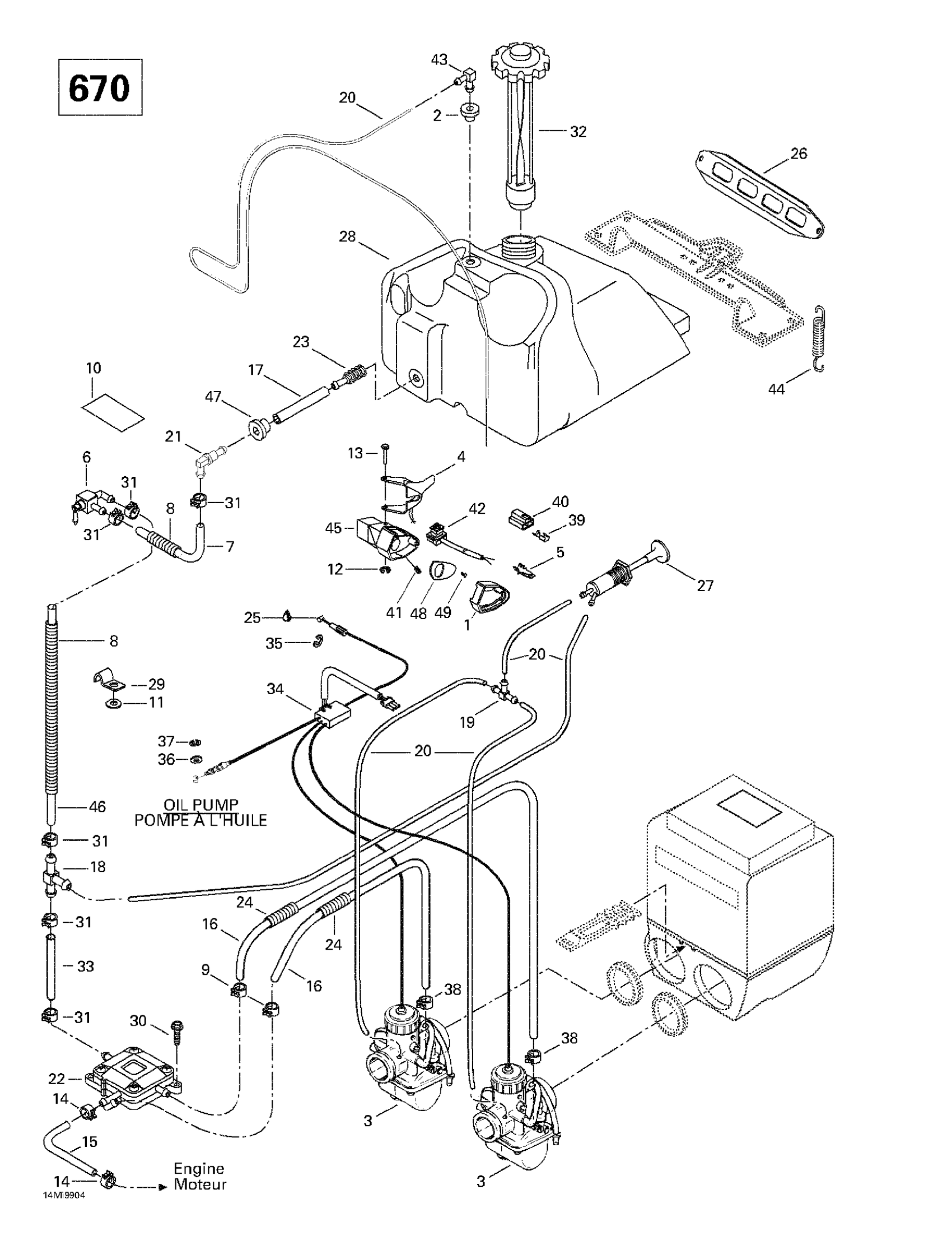

Ski-Doo MX Z 500/670 HO, 1999 02- Fuel System (670) Diagram

#

Description
Price

1

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

2

Grommet

709200285

$9.69

3

Carburetor VM44-36 (PTO) | MX Z 670 HO.

403138559

Unavailable

Carburetor VM44-37 (MAG) | MX Z 670 HO.

403138560

Unavailable

4

Heat Throttle Handle Ass'y (44 mm) | MX Z 670 HO.

572109400

Unavailable

5

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

6

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

7

Formed Hose | MX Z 670 HO.

415062400

Unavailable

8

Tubing 16 Mm 1000Mm Long

219704408

$7.49

9

Spring Clamp

414554800

$0.88

10

Security Label | MX Z 670 HO.

414931500

Unavailable

11

Flat Washer

224061121

$0.53

12

Circlip | Model-RS

414439000

$4.23

13

Lever Pin

414438700

$11.64

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

Hose

415005700

$11.58

18

T-Fitting

415119300

$3.17

19

T-Fitting

414222400

$1.69

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

21

Male Connector | MX Z 670 HO.

572078200

Unavailable

22

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Tubing 10 MM 1000MM Long

219704407

$2.79

25

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank | MX Z 500.

572110700

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hexagonal Head Screw

210262050

$2.11

31

Spring Clamp

414655700

$0.72

32

Fuel Tank Cap | MX Z 670 HO.

513032905

Unavailable

33

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

34

Throttle Cable and Housing (44 mm) | MX Z 670 HO.

415108900

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

Spring Clamp

414420700

$0.72

39

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

Socket Set Screw M8 X 10

414440800

$4.12

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

43

Male Connector

414814100

$2.22

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Housing

512060603

$12.49

46

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

47

Grommet | Europe

707800347

$10.49

48

Plate

512060390

$10.33

49

Screw

414473200

Unavailable
