Description

Price

1

Grommet

570045500

$6.69

2

Polyurethane Hose 10000Mm Long

219704410

$56.99

3

Carburetor VM38-412 (PTO) | MX Z 500.

403138521

Unavailable

Carburetor VM38-413 (MAG) | MX Z 500.

403138522

Unavailable

4

Throttle Housing

512060603

$12.49

5

SPRING - Call your local BRP dealership

517182100

Unavailable

6

Male Connector

414814100

$2.22

7

Tubing 10 MM 1000MM Long

219704407

$2.79

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

10

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

11

Circlip

414753500

$0.71

12

Grommet

709200285

$9.69

13

Spring Clamp

414420700

$0.72

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Tube

415117800

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.69

19

T-Fitting

414222400

$1.69

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

21

Male Connector

414518500

$4.23

22

Flat Washer 8 mm, Nylon

234081100

$1.39

23

Fuel Filter

414865700

$10.99

24

Tubing 10 MM 1000MM Long

219704407

$2.79

25

Circlip

414274500

$0.90

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank | MX Z 500.

572110700

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hex. Screw M6 x 12

732601120

Unavailable

31

Throttle Cable and Housing (38 mm)

414968801

Unavailable

32

FUEL TANK CAP - Call your local BRP dealership | MX Z 500.

415048800

Unavailable

33

Polyurethane Hose 10000Mm Long

219704410

$56.99

34

Plate

512060390

$10.33

35

Circlip | Model-RS

414439000

$4.23

36

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

37

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

38

Spring Clamp

414554800

$0.88

39

Heat Throttle Handle Ass'y (38 mm) | MX Z 500.

572090300

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

41

Lever Pin

414438700

$11.64

42

Socket Set Screw M8 X 10

414440800

$4.12

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

44

Screw

414473200

Unavailable

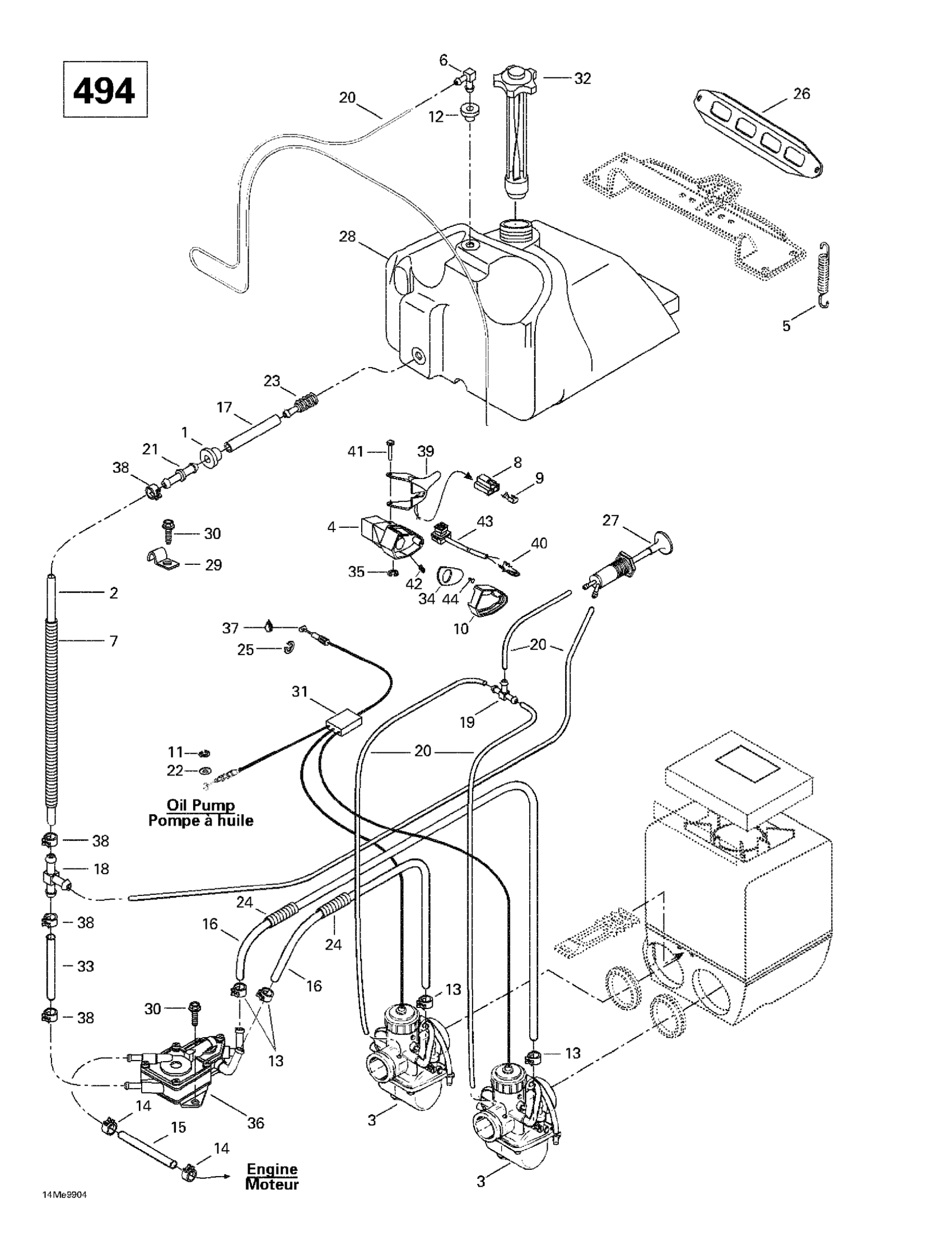

Ski-Doo MX Z 500/670 HO, 1999 02- Fuel System (494) Diagram

Grommet

Polyurethane Hose 10000Mm Long

Carburetor VM38-412 (PTO) | MX Z 500.

Carburetor VM38-413 (MAG) | MX Z 500.

Throttle Housing

SPRING - Call your local BRP dealership

Male Connector

Tubing 10 MM 1000MM Long

Female Terminal Housing (3 circuits)

FEMALE TERMINAL - Call your local BRP dealership

THROTTLE COVER - Call your local BRP dealership

Circlip

Grommet

Spring Clamp

Spring Clamp

Hose

Tube

Not Available As Spare Part - Friction Washer

T-fitting

T-Fitting

Was 415080100 Fuel Line Primer 3,2mm

Male Connector

Flat Washer 8 mm, Nylon

Fuel Filter

Tubing 10 MM 1000MM Long

Circlip

Fuel Tank Bracket

Primer

Fuel Tank | MX Z 500.

CLIP - Call your local BRP dealership

Hex. Screw M6 x 12

Throttle Cable and Housing (38 mm)

FUEL TANK CAP - Call your local BRP dealership | MX Z 500.

Polyurethane Hose 10000Mm Long

Plate

Circlip | Model-RS

FUEL PUMP ASS'Y - Call your local BRP dealership

Dielectric Grease, 150 g This part replaces 413701700.

Spring Clamp

Heat Throttle Handle Ass'y (38 mm) | MX Z 500.

MALE TERMINAL - Call your local BRP dealership

Lever Pin

Socket Set Screw M8 X 10

Emergency Stop Switch | Includes 91 to 91a

Screw
