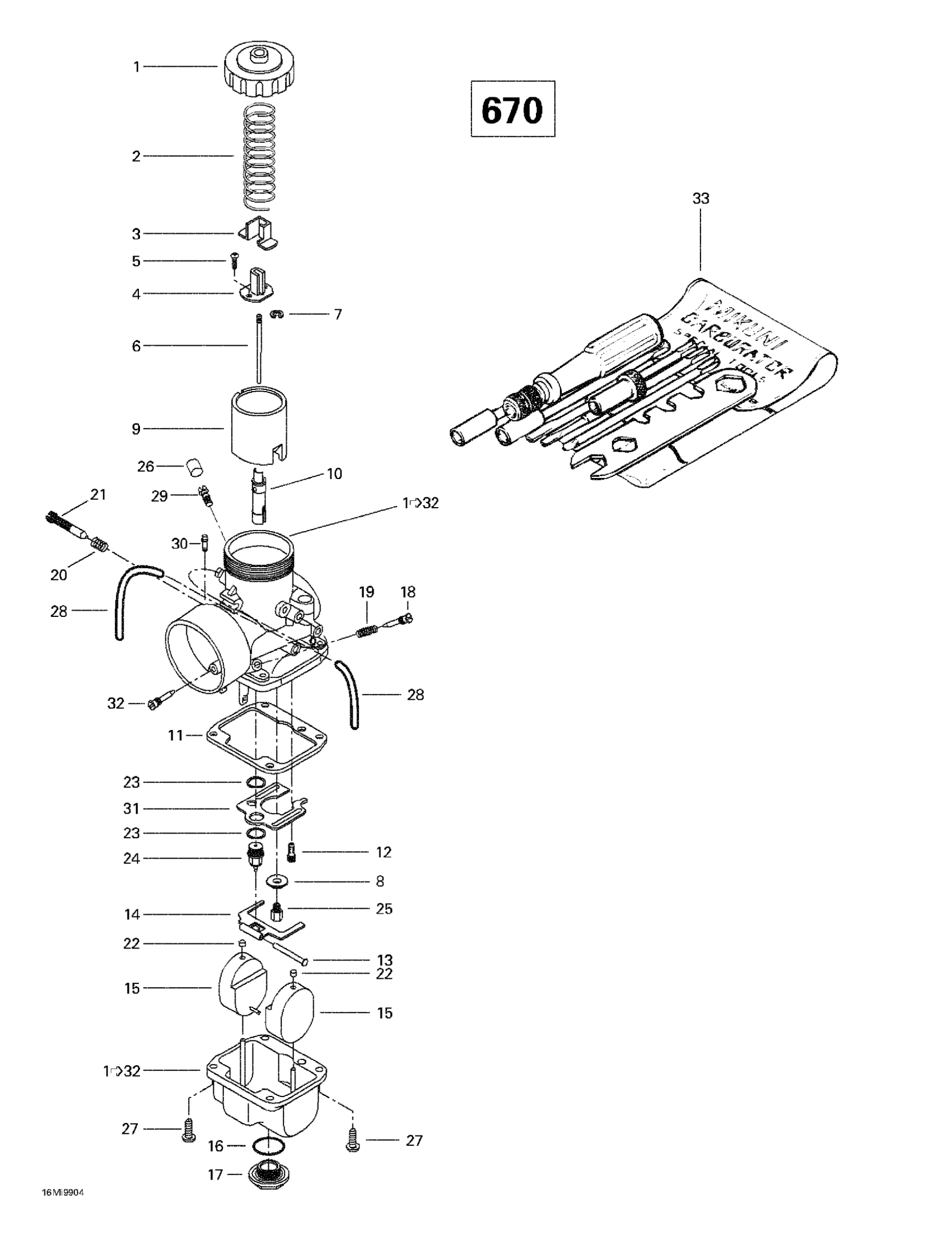

Ski-Doo MX Z 500/670 HO, 1999 02- Carburetors (670) Diagram
#
Description
Price
1
Carburetor VM44-36 (PTO) | MX Z 670 HO.
403138559
Unavailable
Carburetor VM44-37 (MAG) | MX Z 670 HO.
403138560
Unavailable
1
Cover
404126800
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404128100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Jet Needle J8-7ECY01 | Formula Z 583.
404157400
Unavailable
8
Washer
404116700
Unavailable
9
Piston Valve CA 2.5
404132300
Unavailable
10
Needle Jet 224-AA-4 | MX Z 670 HO.
404147600
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
PILOT JET PJ 55 - Call your local BRP dealership | MX Z 670 HO.
404113900
Unavailable
14
Float Lever | Formula Deluxe 500.
404161823
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
Washer | Formula Deluxe 500.
404112800
Unavailable
17
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
Throttle Adjustment Screw | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
404151900
Unavailable
26
CAP - Call your local BRP dealership
404154900
Unavailable
28
Hose | MX-Z 600.
404161814
Unavailable
30
Filter | Formula Deluxe 380.
404158900
Unavailable
31
Baffle
404112700
Unavailable
32
Plug Screw
404131700
Unavailable
33
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
34
Hight Altitude Kit, (Not Shown) | MX Z 670 HO.
861767600
Unavailable
