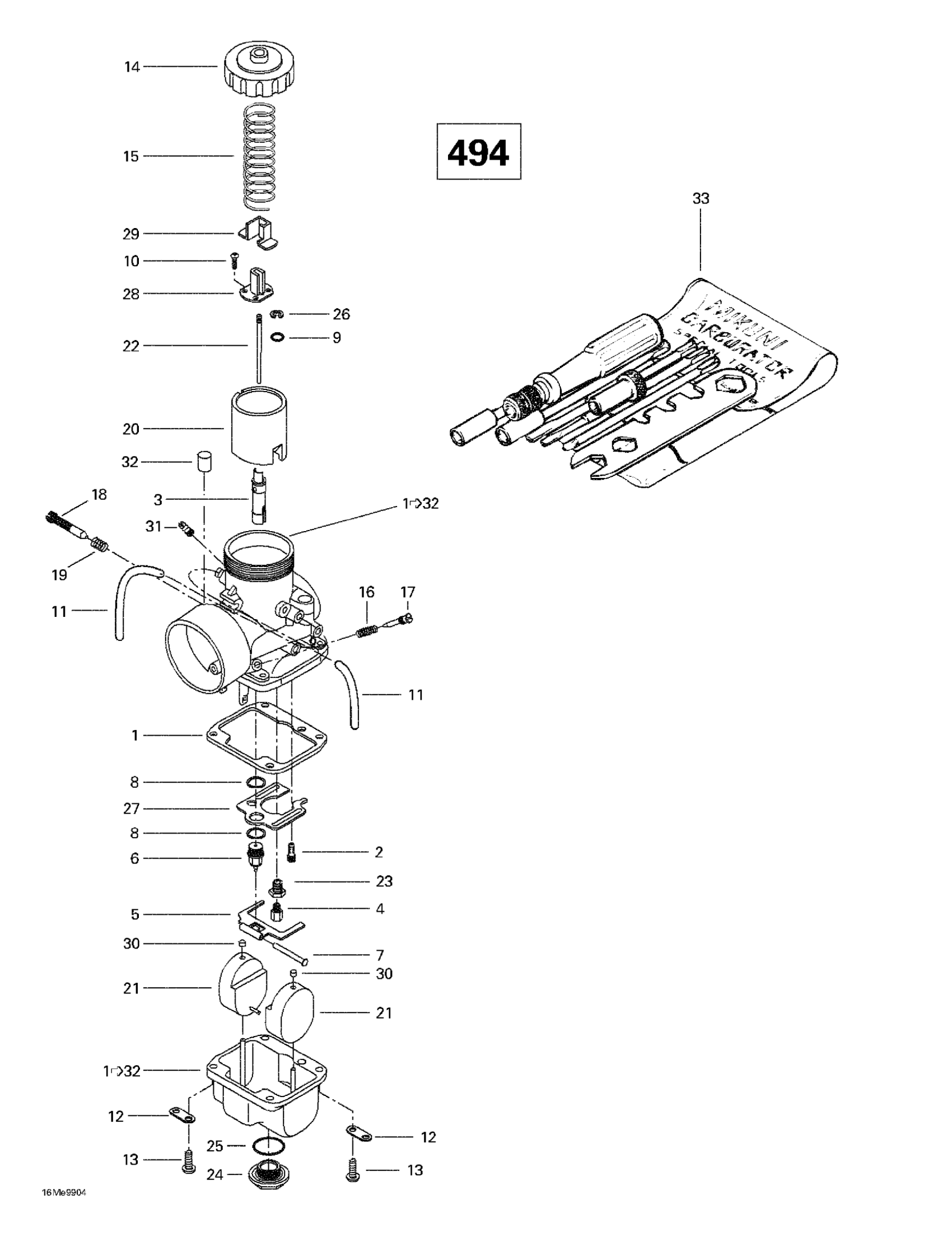

Ski-Doo MX Z 500/670 HO, 1999 02- Carburetors (494) Diagram
#
Description
Price
1
Carburetor VM38-412 (PTO) | MX Z 500.
403138521
Unavailable
Carburetor VM38-413 (MAG) | MX Z 500.
403138522
Unavailable
1
GASKET - Call your local BRP dealership
404104700
Unavailable
2
PILOT JET 50 - Call your local BRP dealership
404109500
Unavailable
3
Needle Jet NJ-480-Q4 | MX Z 500.
404149100
Unavailable
5
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
11
Air Vent Tube
404161802
Unavailable
12
PLATE - Call your local BRP dealership
404103000
Unavailable
14
COVER - Call your local BRP dealership
404105100
Unavailable
16
SPRING - Call your local BRP dealership
404139800
Unavailable
17
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
18
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
20
Throttle Valve 3.0 | MX Z 500.
404117400
Unavailable
21
FLOAT - Call your local BRP dealership
404105400
Unavailable
22
Jet Needle J8 6DGY09
404161820
Unavailable
24
DRAIN PLUG SCREW - Call your local BRP dealership
404105600
Unavailable
25
O-RING - Call your local BRP dealership
404101500
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
32
Filter | Formula Deluxe 380.
404158900
Unavailable
33
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
34
High Altitude Kit, (Not Shown) | MX Z 500.
861767800
Unavailable
