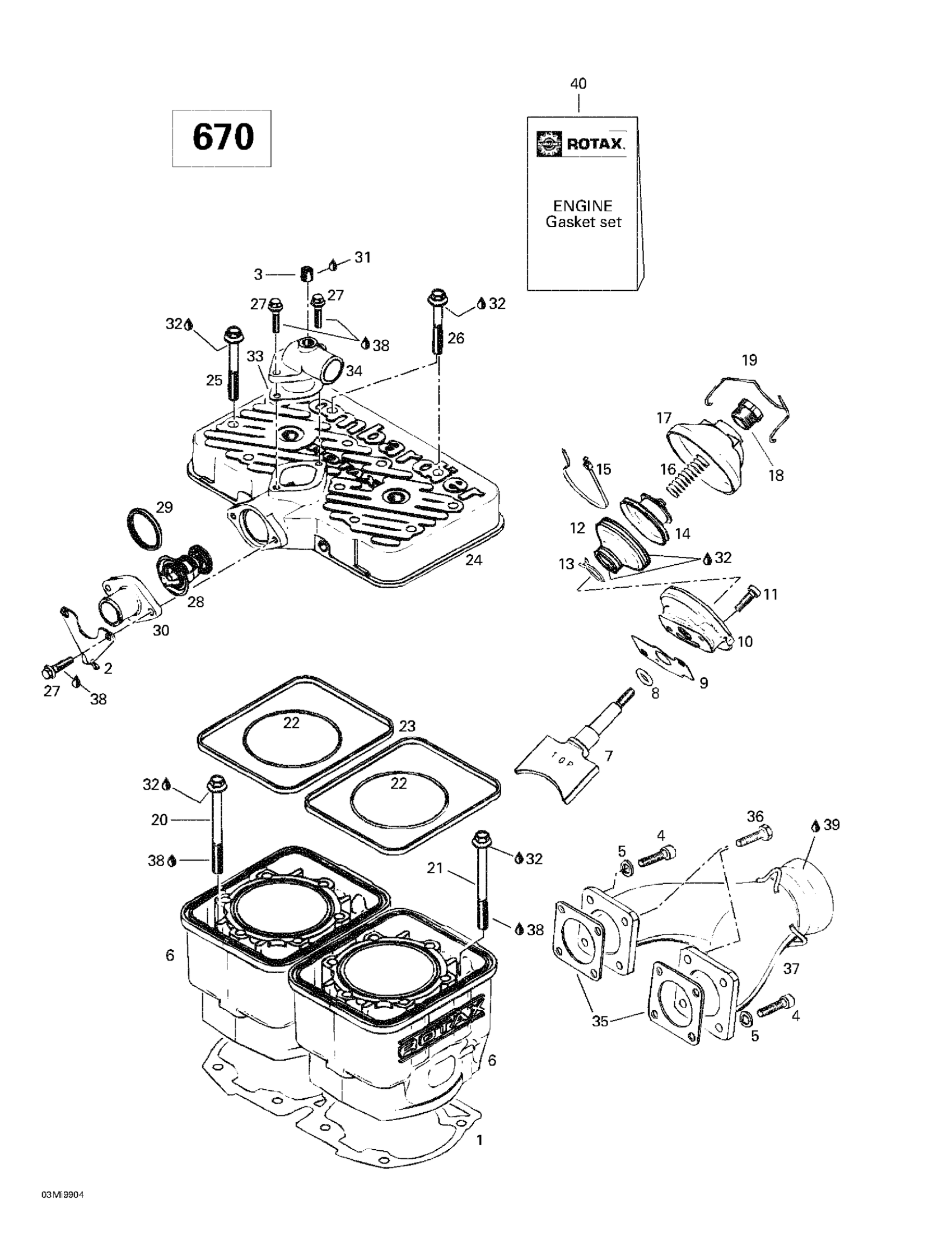

Ski-Doo MX Z 500/670 HO, 1999 01- Cylinder, Exhaust Manifold (670) Diagram

#

Description
Price

1

GASKET-DOUBLE 0.8 MM - Call your local BRP dealership | Formula Deluxe 670.

420931234

Unavailable

Gasket-Double 0.7 mm | Formula Deluxe 670.

420931236

Unavailable

Gasket-Double 0.6 mm | Formula Deluxe 670.

420931232

Unavailable

GASKET-DOUBLE 0.5 MM - Call your local BRP dealership | Formula Deluxe 670.

420931233

Unavailable

Gasket-Double 0.4 mm | Formula Deluxe 670.

420931231

Unavailable

Gasket-Double 0.3 mm | Formula Deluxe 670.

420931230

Unavailable

2

Plate (Intake Silencer) | MX Z 670 HO.

420851347

Unavailable

3

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

4

Socket Head Screw M6 X 25

205062544

$1.15

5

Lock Washer M6, Black

234161471

$0.53

6

Cylinder With Sleeve | MX Z 670 HO.

420923700

Unavailable

7

Exhaust Valve | Formula Deluxe 670.

420854320

Unavailable

8

O-Ring

420430110

$4.44

9

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420230256

Unavailable

10

Valve Rod Housing | Formula Deluxe 583.

420253275

Unavailable

11

Socket Head Screw M6 x 16

420241237

$2.22

12

Bellow

420260721

$51.99

13

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

14

Exhaust Valve This part replaces 290253257.

420854449

$35.99

15

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

16

SPRING - Call your local BRP dealership

420239941

$6.99

17

Valve Cover

420911552

$38.99

18

Adjuster Screw

420241221

$14.22

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

Hex. Screw M8 x 100 | Formula Deluxe 670.

420940126

Unavailable

21

Screw M8x105

420941518

$10.60

22

O-RING - Call your local BRP dealership | Formula Deluxe 670.

420931220

Unavailable

23

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

24

CYLINDER HEAD (VIOLET) - Call your local BRP dealership | MX Z 670 HO.

420913545

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

26

Hex. Screw M8 X 56.5

420941627

$8.57

27

Hex.Screw M6 X 20

420441311

$5.18

28

Thermostat This part replaces 414834100.

420922519

$63.99

29

SEALING RING - Call your local BRP dealership

420931270

Unavailable

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

32

Dow Corning 111, 150 g

413707000

$59.99

33

Gasket

420850338

$11.60

34

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

35

Gasket

420850552

$8.85

36

Hex. Screw M6 | MX Z 670 HO.

732601230

Unavailable

37

Exhaust Manifold | MX Z 670 HO.

420973984

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

Gasket Set | Formula Deluxe 670.

420997801

Unavailable
