Description

Price

1

Gasket Double 0.4 mm

420931361

Unavailable

2

Cylinder With Sleeve Ass'y

420923617

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854300

Unavailable

4

O-Ring

420430110

$4.44

5

Gasket

420250239

$7.37

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 x 16

420241237

$2.22

8

Exhaust Bellows

420260723

$42.49

9

Exhaust Valve This part replaces 290253257.

420854449

$35.99

10

Hose Spring This part replaces 420239048.

420939281

$7.41

11

Spring This part replaces 420239944.

420239954

$7.51

12

Valve Cover

420911552

$38.99

13

Adjuster Screw

420241221

$14.22

14

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

15

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

16

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

17

O-Ring | Grand Touring 500.

420831792

$15.89

18

Cylinder Head (Yellow) | Formula Deluxe 500 LC.

420923168

Unavailable

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring

420430782

$5.39

21

O-Ring

420931260

Unavailable

22

Cylinder Head Cover (Yellow) | Formula Deluxe 500 LC.

420923622

Unavailable

23

Socket Head Screw M6 X 25

205062544

$1.15

24

Thermostat This part replaces 414834100.

420922519

$63.99

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

Gasket

420850338

$11.60

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

29

Bent Outlet Socket

420922480

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

31

Gasket

420850535

Unavailable

32

Exhaust Manifold | MX Z 500.

420979630

Unavailable

33

Lock Washer 8 mm

234181401

$0.92

34

Socket Head Screw M8 X 30

205083044

$1.15

35

Hex. Screw M8 X 20

207182044

$0.74

36

Gasket Set | Formula Deluxe 500 LC.

420994226

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

39

Dow Corning 111, 150 g

413707000

$59.99

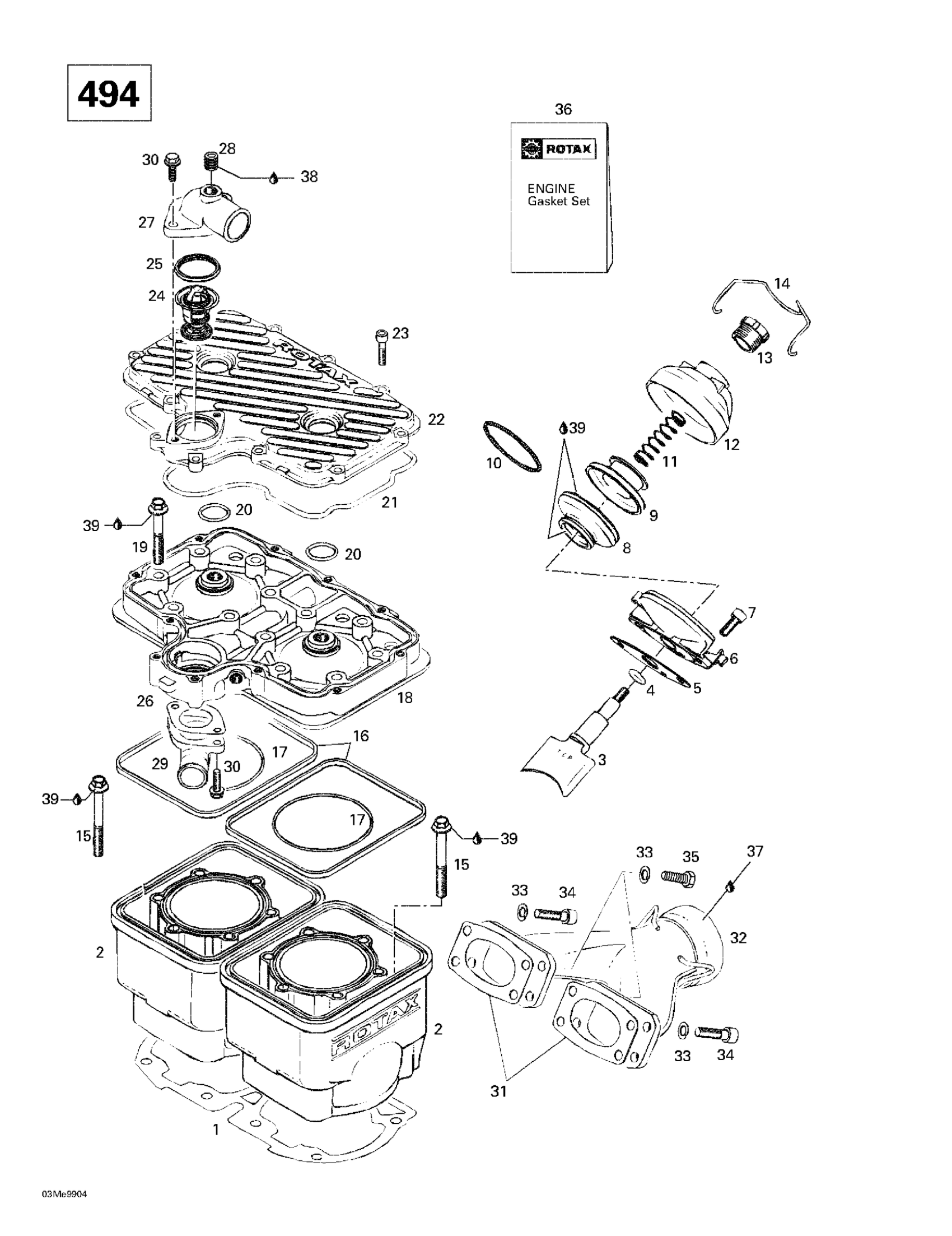

Ski-Doo MX Z 500/670 HO, 1999 01- Cylinder, Exhaust Manifold (494) Diagram

Gasket Double 0.4 mm

Cylinder With Sleeve Ass'y

EXHAUST VALVE - Call your local BRP dealership

O-Ring

Gasket

Valve Housing | Grand Touring 600.

Socket Head Screw M6 x 16

Exhaust Bellows

Exhaust Valve This part replaces 290253257.

Hose Spring This part replaces 420239048.

Spring This part replaces 420239944.

Valve Cover

Adjuster Screw

SPRING CLIP - Call your local BRP dealership

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

O-Ring | Grand Touring 500.

Cylinder Head (Yellow) | Formula Deluxe 500 LC.

Hex. Flange Screw M8 X 53.5

O-Ring

O-Ring

Cylinder Head Cover (Yellow) | Formula Deluxe 500 LC.

Socket Head Screw M6 X 25

Thermostat This part replaces 414834100.

SEALING RING - Call your local BRP dealership

Gasket

BENT OUTLET SOCKET - Call your local BRP dealership

PLUG SCREW - Call your local BRP dealership

Bent Outlet Socket

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Gasket

Exhaust Manifold | MX Z 500.

Lock Washer 8 mm

Socket Head Screw M8 X 30

Hex. Screw M8 X 20

Gasket Set | Formula Deluxe 500 LC.

Sealant, Loctite, 80 ml | DS 650

Était/Was 293800038 Loctite 518, 50 ml

Dow Corning 111, 150 g
