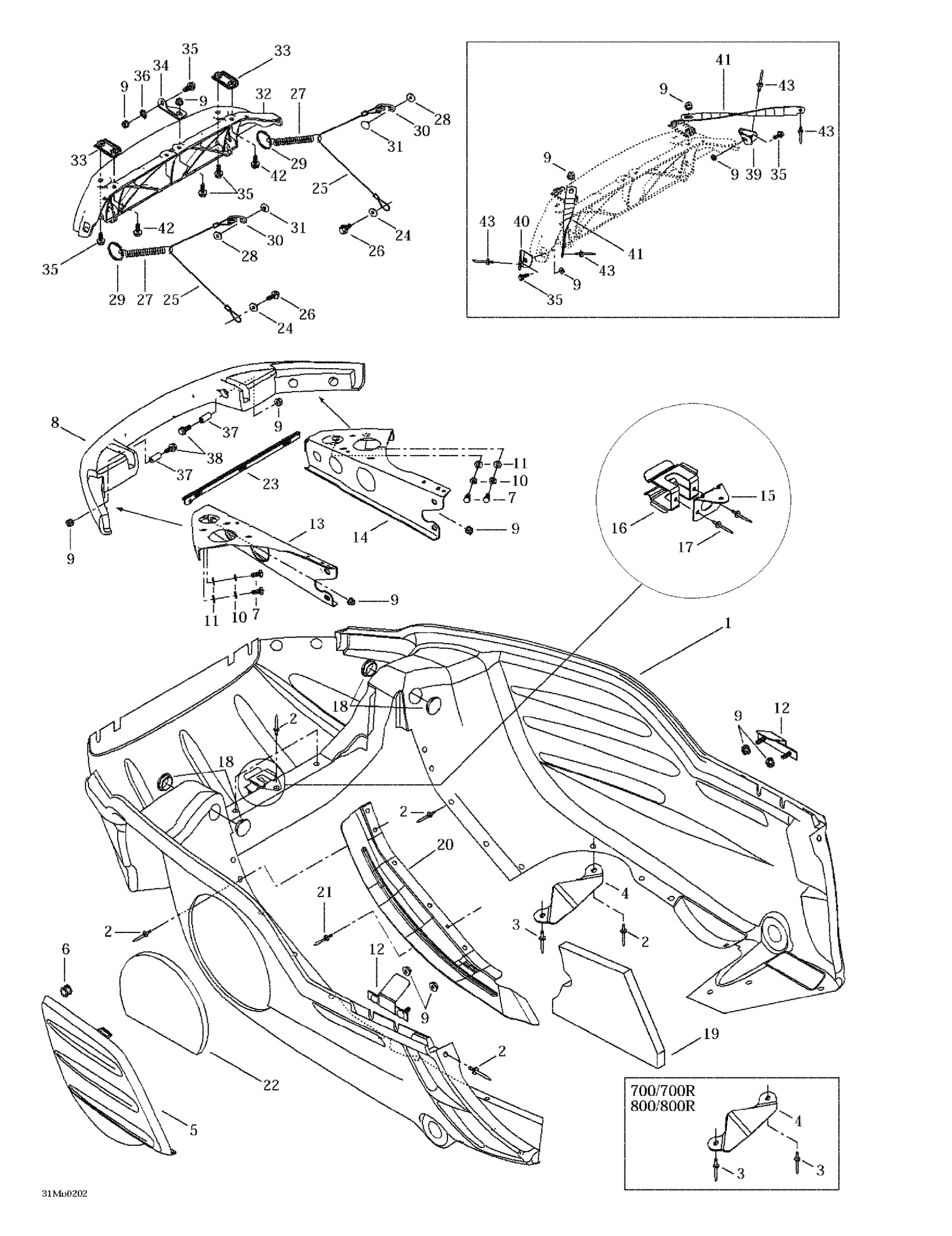

Ski-Doo MX Z 500/600/700/800, 2002 Bottom Pan Diagram
#
Description
Price
1
Deep Black, Bottom Pan
502006633
Unavailable
Bottom Pan | B-190 YELLOW
502006632
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
4
Snow Deflector | RENEGADE MX Z 600. MX Z 800.
502006637
Unavailable
Bottom Pan Door | B-190 YELLOW
502006511
Unavailable
Bumper
502006535
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
12
LH Bracket
502006645
Unavailable
14
RH Support
502006596
Unavailable
15
Belt Support
502006599
Unavailable
16
Bracket
517281905
Unavailable
17
Pop Rivet 3/16"
390402400
Unavailable
19
Bottom Foam
502006558
Unavailable
20
Bottom Pan Protector | 700 / WITH GRILL
502006593
Unavailable
22
Bottom Pan Door Foam
502006559
Unavailable
23
Bottom Pan Reinforcement
502006647
Unavailable
24
Washer | DS 650 X
391301600
Unavailable
25
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Spring
415043300
Unavailable
28
Washer
517124300
Unavailable
29
RING - Call your local BRP dealership
415058300
Unavailable
30
Bracket
517262800
Unavailable
32
Hinge
517302631
Unavailable
33
HINGE SIDE PLATE - Call your local BRP dealership
517302176
Unavailable
34
Hinge Center Plate
517302045
Unavailable
36
Lock Washer Serrated M6
250200041
Unavailable
37
BUSHING - Call your local BRP dealership
517302179
Unavailable
39
RH Corner Support
517302254
Unavailable
40
LH Corner Support
517302255
Unavailable
41
Hood Clamp
517302256
Unavailable
42
Hex. Flange Screw M6 X 25
207662544
Unavailable
43
Pop Rivet 3/16"
390406500
Unavailable
