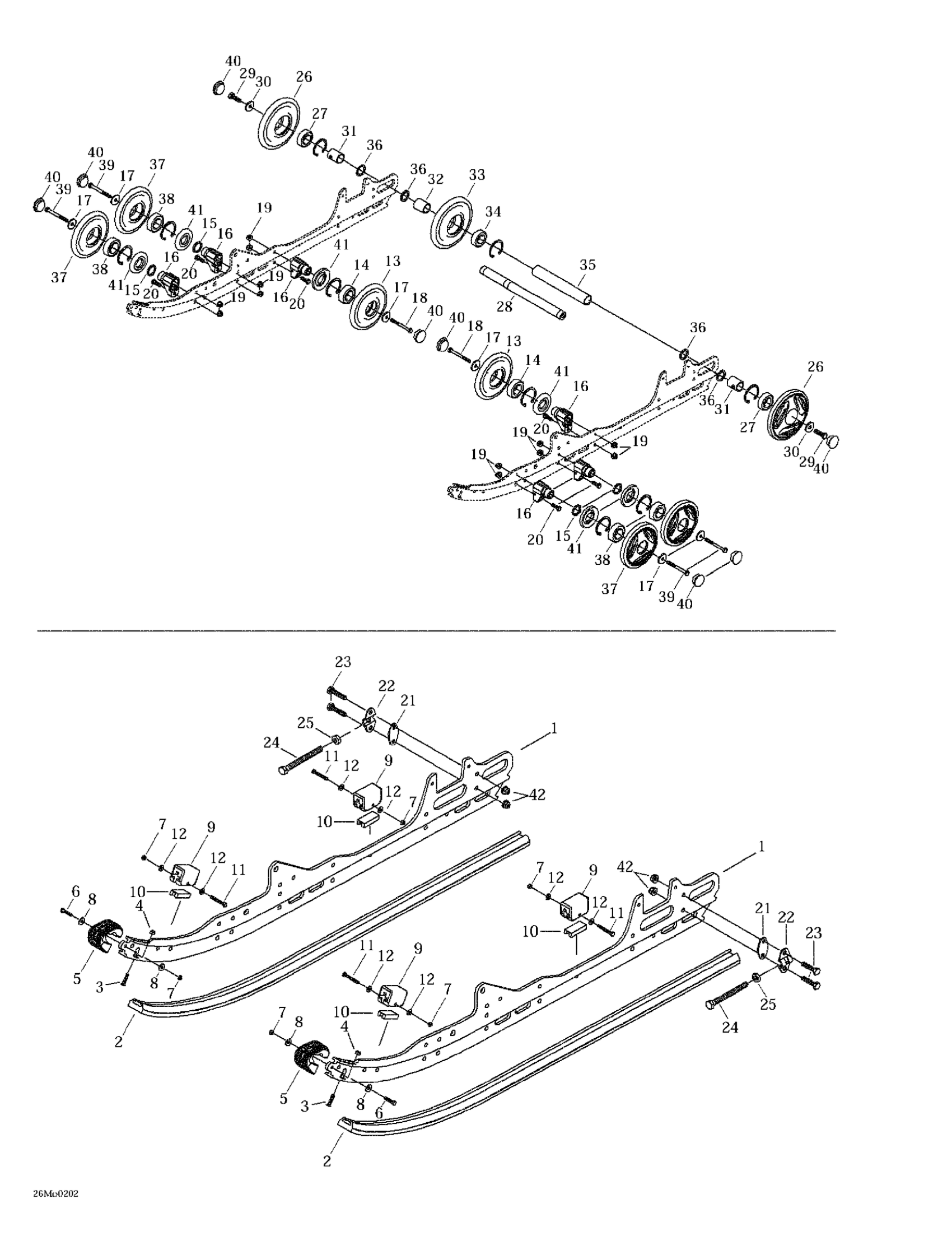

Ski-Doo MX Z 500/600/700/800, 2002 Rear Suspension Diagram

#

Description
Price

1

Runner

503189830

Unavailable

Runner

503189415

Unavailable

2

Runner Shoe

503189643

Unavailable

Slide Shoe

605355362

Unavailable

Shoe | MX Z 500. MX Z 600.

503189862

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$5.25

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Wheel 135

503191029

Unavailable

14

Ball Bearing

293350115

Unavailable

15

WASHER - Call your local BRP dealership

503173700

Unavailable

16

SUPPORT - Call your local BRP dealership

503190389

Unavailable

17

Washer

503183100

$3.08

18

Hex. Screw M8 X 80

207088044

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Hex. Screw M8 X 25

207182544

Unavailable

21

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

22

Tensioner

503155300

Unavailable

23

Hex. Screw M6 X 30

207063044

Unavailable

24

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.68

26

Wheel 165 mm Yellow

503190817

Unavailable

27

Ball Bearing

293350115

Unavailable

28

Rear Axle

503167900

$129.20

29

Hex. Screw With Nylon

250000019

Unavailable

30

Washer

503183300

$5.68

31

Outer Spacer

503189809

$15.35

32

Inner Spacer

503182900

$10.18

33

Wheel 165" | Includes 670 to 670b

503194127

$49.97

34

Ball Bearing

293350115

Unavailable

35

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

36

Washer

503180400

$3.37

37

Wheel 135, Yellow

503190785

Unavailable

38

Ball Bearing

293350115

Unavailable

39

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

40

Wheel Cap

570063600

Unavailable

41

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
