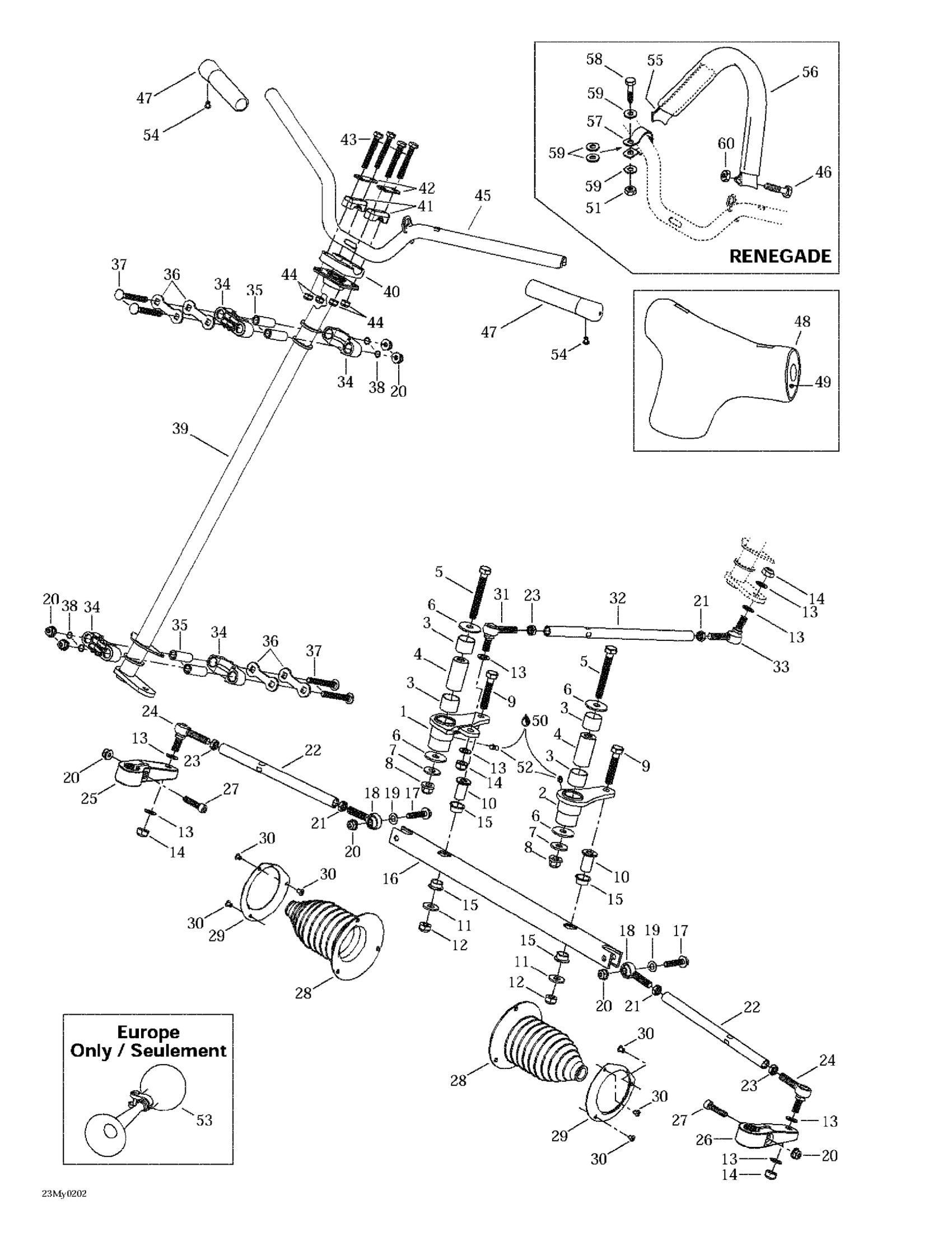

Ski-Doo MX Z 500/600/700/800, 2002 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH Swivel Arm

506151507

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

Unavailable

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

Unavailable

15

Swivel Bushing

503191555

Unavailable

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

Unavailable

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

22

Tie-Rod

506151190

Unavailable

Tie-Rod | (Renegade) MX Z 600. MX Z 700. MX Z 800.

506151450

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

24

Ball Joint

506151491

Unavailable

25

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

RH Steering Arm

506151451

Unavailable

26

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

LH Steering Arm

506151452

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

29

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

30

Pop Rivet 3/16"

390402300

Unavailable

31

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

32

Inside Tie-Rod

506150300

Unavailable

33

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

34

Housing Half

506150400

Unavailable

35

Housing Bushing

506150500

Unavailable

36

Stopper Plate

506150600

Unavailable

37

Carriage Bolt M8 X 70

207787044

Unavailable

38

O-RING - Call your local BRP dealership

506151140

Unavailable

39

Main Tube

506147100

Unavailable

Main Tube

506151222

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Steering Support

709400919

Unavailable

42

Stiffner

709400509

Unavailable

43

Hex. Screw M8 X 55

207085544

$1.62

44

Hex. Elastic Stop Nut M8

232581414

Unavailable

45

Handle Bar

506151478

Unavailable

Handle-Bar, Black

506151391

Unavailable

46

Hex. Flange Screw M6 X 35

207063544

$1.35

47

Grip | WAKE This part replaces M5340464.

506152483

$9.85

48

Cover

506151263

Unavailable

Cover

506151265

Unavailable

49

Foam

506151262

Unavailable

Foam

506151264

Unavailable

50

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

51

Elastic Stop Nut M6

232561414

Unavailable

52

Grease Fitting

408200700

Unavailable

53

Horn

549011291

$35.35

54

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

55

Strap Ass'y | Package XMR

506152115

$43.05

56

Strap Ass'y | Package XMR

506152115

$43.05

57

Support Plate

506148200

Unavailable

58

Hex. Screw M6 X 25

207162544

Unavailable

59

Flat Washer 6 mm

234061410

Unavailable
