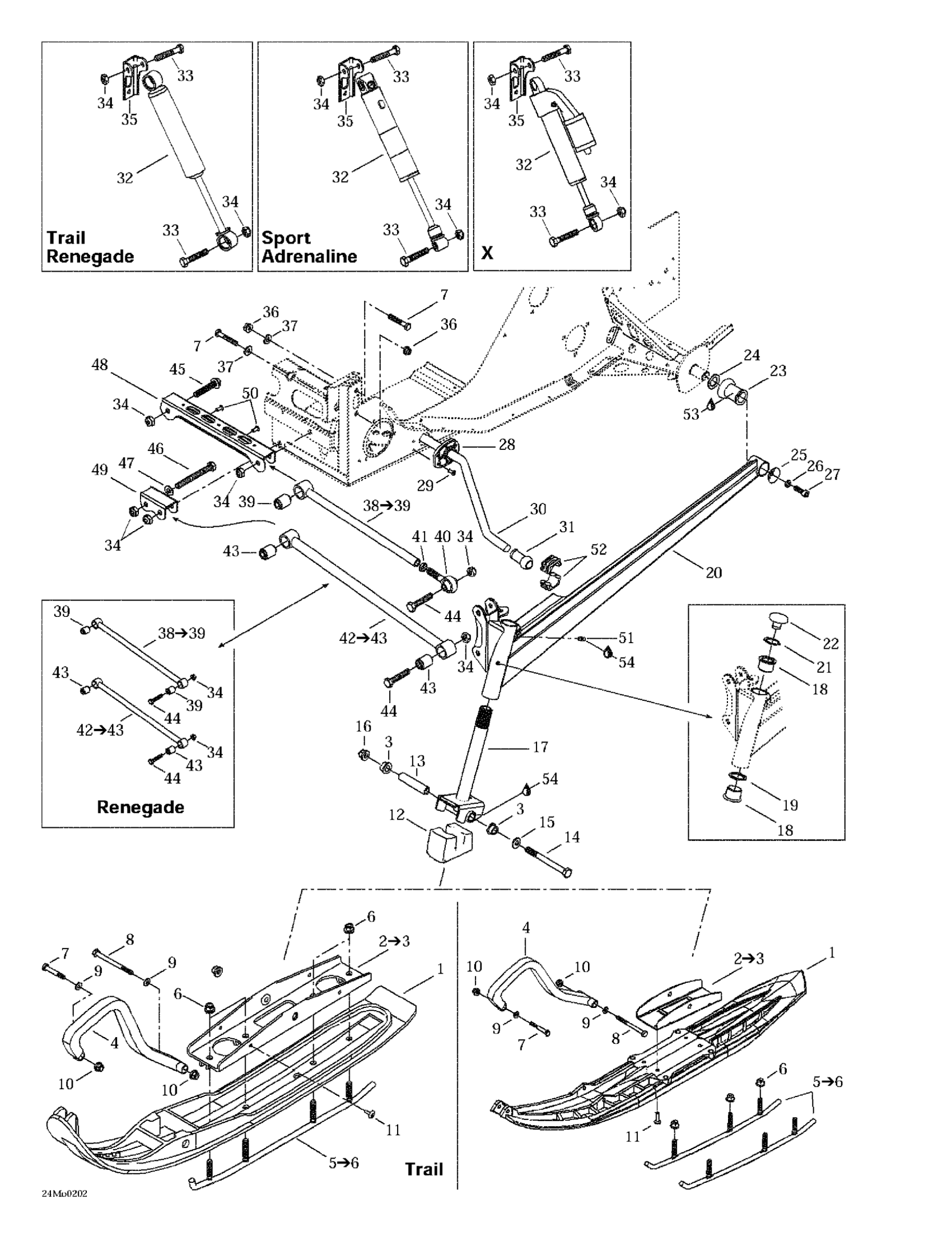

Ski-Doo MX Z 500/600/700/800, 2002 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$129.99

Deep Black, Precision Ski | Sport

505070727

$106.69

Precision Ski, Yellow

505070831

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$34.30

Handle Kit, Yellow

860506400

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$135.79

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.45

Elastic Locking Nut M10 X 1.5

233601416

$1.63

7

Hex. Screw M8 X 50

207085044

$1.43

8

Hex. Screw M8 X 90

207089044

$3.24

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.79

10

Hex. Elastic Stop Nut M8

232581414

$0.54

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$19.37

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.55

16

Flange Nut M10

732610084

$6.30

17

Ski Leg

506151234

Unavailable

Ski Leg

505070672

Unavailable

18

Cushion

505070003

$7.18

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.70

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

$0.87

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

28

BUSHING - Call your local BRP dealership

505070139

Unavailable

Bushing | 550F

505070191

Unavailable

29

Pop Rivet 3/16"

390402300

$0.73

30

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

Stabilisator | RENEGADE MX Z 600. MX Z 800.

505070774

Unavailable

31

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

Ball Joint | 550F

505070816

Unavailable

32

FRONT SHOCK - Call your local BRP dealership

505070847

Unavailable

Front Shock Ass'y | (SPORT / ADRENALINE)

505070733

Unavailable

Front Shock Ass'y | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.

505070751

Unavailable

RH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.

505070876

Unavailable

RH Front Shock | (EUROPE X) MX Z 600. MX Z 800.

505070877

Unavailable

LH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.

505070878

Unavailable

LH Front Shock | (EUROPE X) MX Z 600. MX Z 800.

505070879

Unavailable

Front Shock Ass'y | (EUROPE SPORT) MX Z 500.

505070865

Unavailable

33

Hex. Screw M10 X 55

207005544

$2.12

34

Elastic Locking Nut M10 X 1.5

233601416

$1.63

35

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

36

Hex. Flange Elastic Nut M8

233281414

$1.31

37

Washer

506151245

$0.88

38

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 - 42. ADRENALINE & TRAIL

505070214

Unavailable

UPPER ARM ASSY - Call your local BRP dealership | INCLUDES 41 TO 42

505070746

Unavailable

39

Bushing

505070025

Unavailable

Bushing

505070025

Unavailable

40

Ball Joint

505070818

Unavailable

41

Nut Hexagonal RH.

232026414

$1.43

42

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

LOWER ARM ASSY - Call your local BRP dealership | INCLUDES 43 TO 44

505070748

Unavailable

43

Bushing

505070025

Unavailable

44

Hex. Screw M10 X 55

207005544

$2.12

45

Hex. Flange Screw M10 X 55

207605544

$3.19

46

Hex. Screw M10 X 95

207009544

Unavailable

47

Flat Washer 10 mm

234001410

$1.12

48

Upper Arm Bracket

505070010

Unavailable

49

Lower Arm Bracket

505070011

Unavailable

50

Pop Rivet 3/16"

390402200

$0.30

51

Grease Fitting

408200700

$3.21

52

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

53

Grease, Super Lube

293550030

$28.33

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
