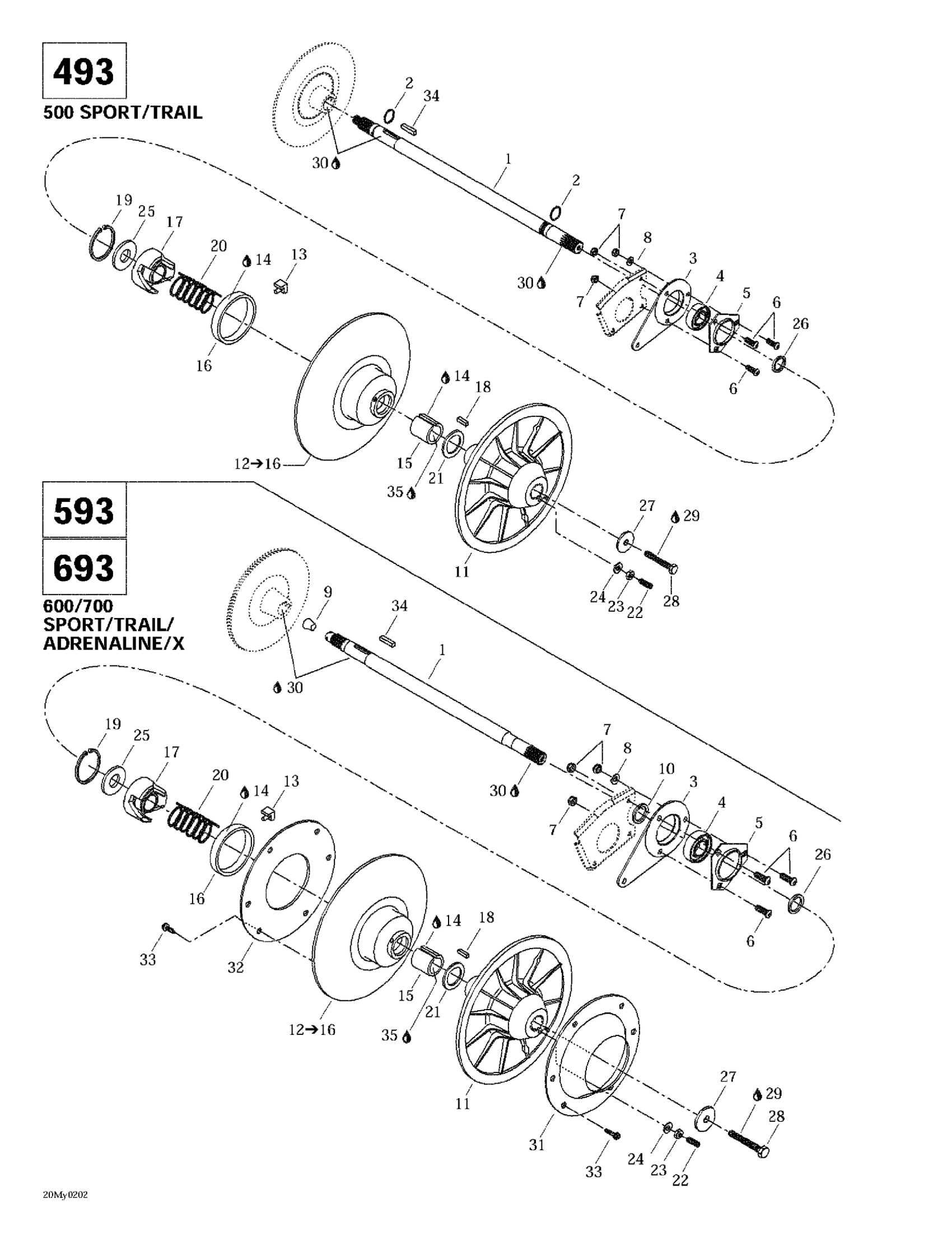

Ski-Doo MX Z 500/600/700/800, 2002 Driven Pulley (493) Diagram

#

Description
Price

1

COUNTERSHAFT - Call your local BRP dealership | 550F

504151858

Unavailable

COUNTER SHAFT - Call your local BRP dealership

501026300

$428.43

2

Circlip

371910000

Unavailable

3

Spacer (Casting)

080044200

Unavailable

4

BALL BEARING - Call your local BRP dealership

504152008

Unavailable

Ball Bearing Kit This part replaces 504152535.

415129555

Unavailable

5

FLANGE - Call your local BRP dealership

501025000

Unavailable

6

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

7

Hex. Elastic Stop Nut M8

232581414

Unavailable

8

Flat Washer 8 mm

234081410

Unavailable

9

CORK - Call your local BRP dealership

414784800

$2.28

10

Spacer

504149100

$11.20

11

Fixed Flange | 380 F.

417126477

Unavailable

12

Sliding Flange Ass’Y | Includes 3 - 7.

417126486

Unavailable

13

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

14

Loctite 609, 10 ml

413703100

$24.58

15

BUSHING - Call your local BRP dealership

415011200

Unavailable

16

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

17

Cam 42° | STD 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.

417126590

Unavailable

Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.

417126337

Unavailable

Cam 48/44° | STD 700 ADRENALINE MX Z 500. MX Z 800.

417126585

Unavailable

18

Key

414820800

Unavailable

19

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

20

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

21

Thrust Washer

504141900

Unavailable

22

Socket Set Screw M6 X 30

206263044

Unavailable

23

Hex. Nut M6

232061414

$0.44

24

WASHER - Call your local BRP dealership

420245370

Unavailable

25

Washer

504141800

Unavailable

26

Spacer

504149100

$11.20

27

Strength Washer

517302322

$11.09

28

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

29

Loctite 243, 10 ml

293800060

$20.77

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

CUP - Call your local BRP dealership

504142000

Unavailable

32

Ring

504142100

Unavailable

33

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

34

KEY - Call your local BRP dealership

507021300

Unavailable

35

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
