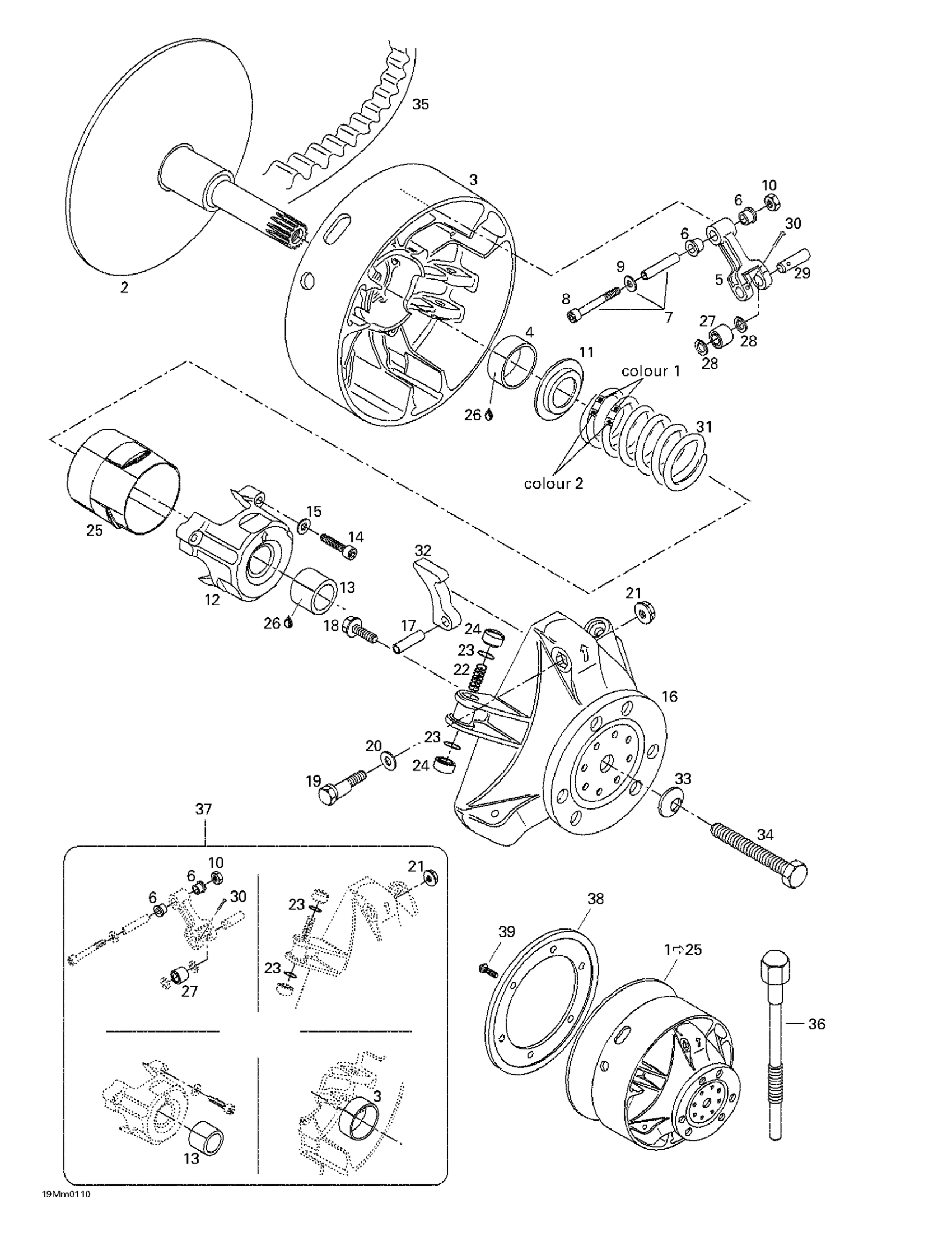

Ski-Doo MX Z 500/600/700, 2001 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 24.

417222369

Unavailable

2

Fixed Flange

417222411

Unavailable

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

Bushing

417004201

Unavailable

5

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

6

Bushing

417004305

Unavailable

7

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

8

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

$1.68

9

Flat Washer 6 mm

234061410

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Spring Seat

417222044

Unavailable

12

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

13

Bushing

417004501

Unavailable

14

Socket Head Screw M6 X 40

250000038

Unavailable

15

WASHER - Call your local BRP dealership

420245370

Unavailable

16

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

17

Pin M8 X 24

732804009

Unavailable

18

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

19

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

20

Washer

417005600

$3.86

21

Hex. Flange Nut M6

233061414

Unavailable

22

Spring

417005700

Unavailable

23

O-Ring

732401030

$0.95

24

Slider Shoe This part replaces 420460045.

417223021

$6.09

25

Guard

417222176

Unavailable

26

Loctite 609, 10 ml

413703100

$24.58

27

Roller

417222947

$19.97

28

Stopper Washer

417004302

$15.99

29

Pin

417004308

Unavailable

30

Cotter Pin

250400060

$1.60

31

SPRING (GREEN/BLUE) - Call your local BRP dealership

414768200

Unavailable

SPRING, GREEN/WHITE - Call your local BRP dealership

417222371

Unavailable

Spring, Green/violet | 800R Power TEK

414762800

$14.75

32

Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.

417005281

Unavailable

Ramp 293 | MX-Z 600.

417005293x

Unavailable

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

33

Spring Washer 14 mm

250200006

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

35

Drive Belt

414860700

Unavailable

Drive Belt

417300585

Unavailable

36

Puller This part replaces 529022400.

529000064

Unavailable

37

Clutch Repair Kit

417006100

Unavailable

38

Flywheel | 600

417222399

Unavailable

39

Hex. Screw M8 X 16

236281684

Unavailable
