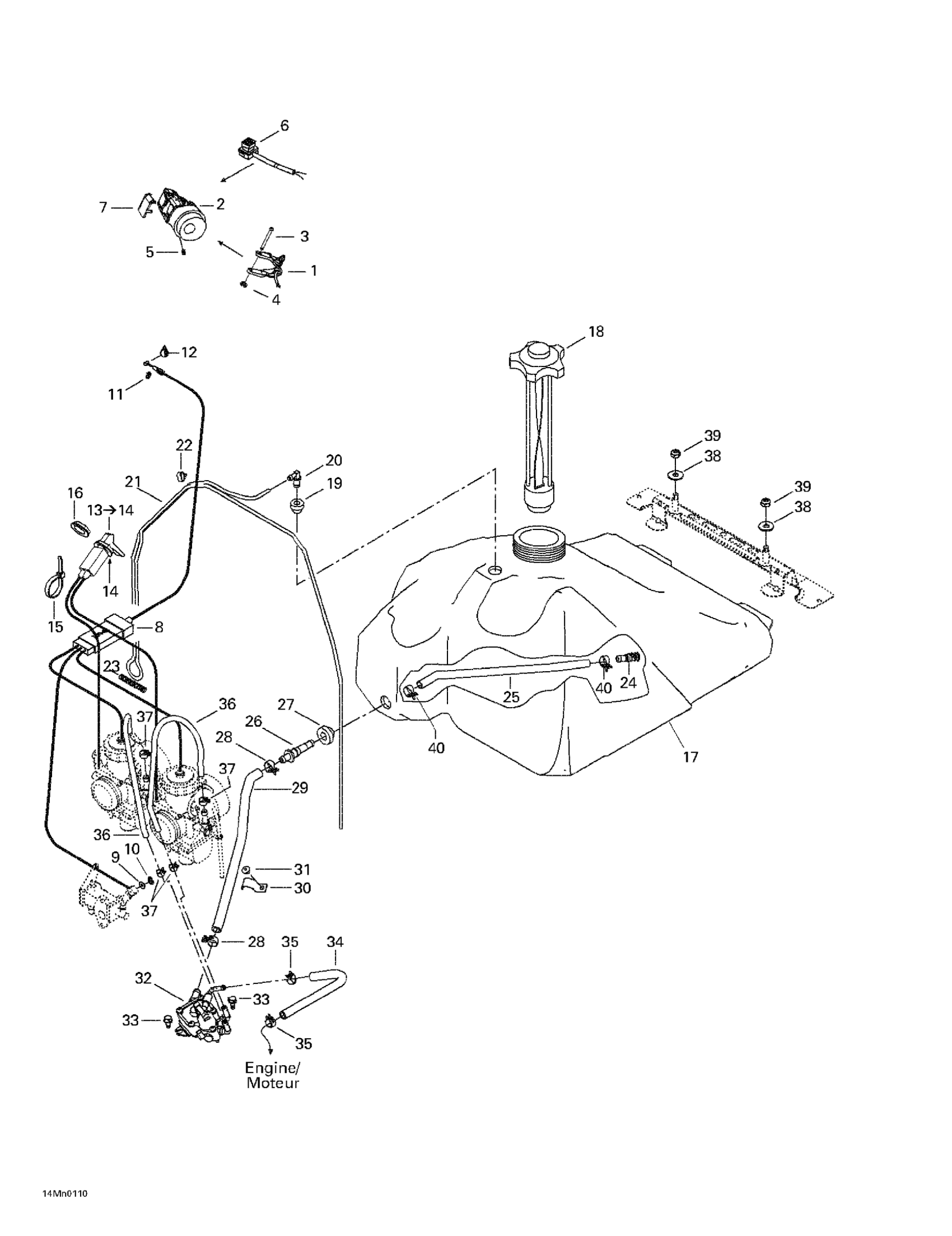

Ski-Doo MX Z 500/600/700, 2001 Fuel System Diagram

#

Description
Price

1

Handle Ass'y 38 mm | MX-Z 500.

512059153

Unavailable

2

Throttle Handle Housing

572100900

Unavailable

3

Lever Pin

414438700

$10.81

4

Circlip | Model-RS

414439000

$4.01

5

Socket Set Screw M8 X 10

414440800

$3.88

6

Kill Switch

515175410

Unavailable

7

Switch Cover

572100901

$14.10

8

Throttle Cable | Formula Deluxe 500.

512059111

Unavailable

9

Flat Washer 8 mm, Nylon

234081100

$1.15

10

Circlip

414753500

$0.67

11

Circlip

414274500

$0.85

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

14

Lock Washer, Interior Teeth

394103300

Unavailable

15

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

16

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

17

Fuel Tank

513032987

Unavailable

18

Fuel Tank Cap | Sport / Sport GT

513033020

$34.30

19

Grommet

513032908

$8.48

20

Male Connector

414814100

$2.12

21

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

22

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

23

SPRING - Call your local BRP dealership

414818200

Unavailable

24

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

25

Hose

415005700

$5.47

26

Male Connector

414872700

Unavailable

27

Grommet | Europe

707800347

$8.70

28

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

29

Formed Hose

513032903

$27.58

30

CLIP - Call your local BRP dealership

415018200

Unavailable

31

Pop Rivet 3/16"

390406500

$0.81

32

Fuel Pump | MX-Z 500.

403901800

Unavailable

33

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

34

Hose

219704549

$46.24

35

Spring Clamp

414415200

$0.81

36

Tube

415117800

Unavailable

37

Spring Clamp

414420700

$0.66

38

Flat Washer 8 mm

234082410

$1.27

39

Hex. Elastic Stop Nut M8

232581414

$0.54

40

Norma Spring Clamp

513033010

$8.42
