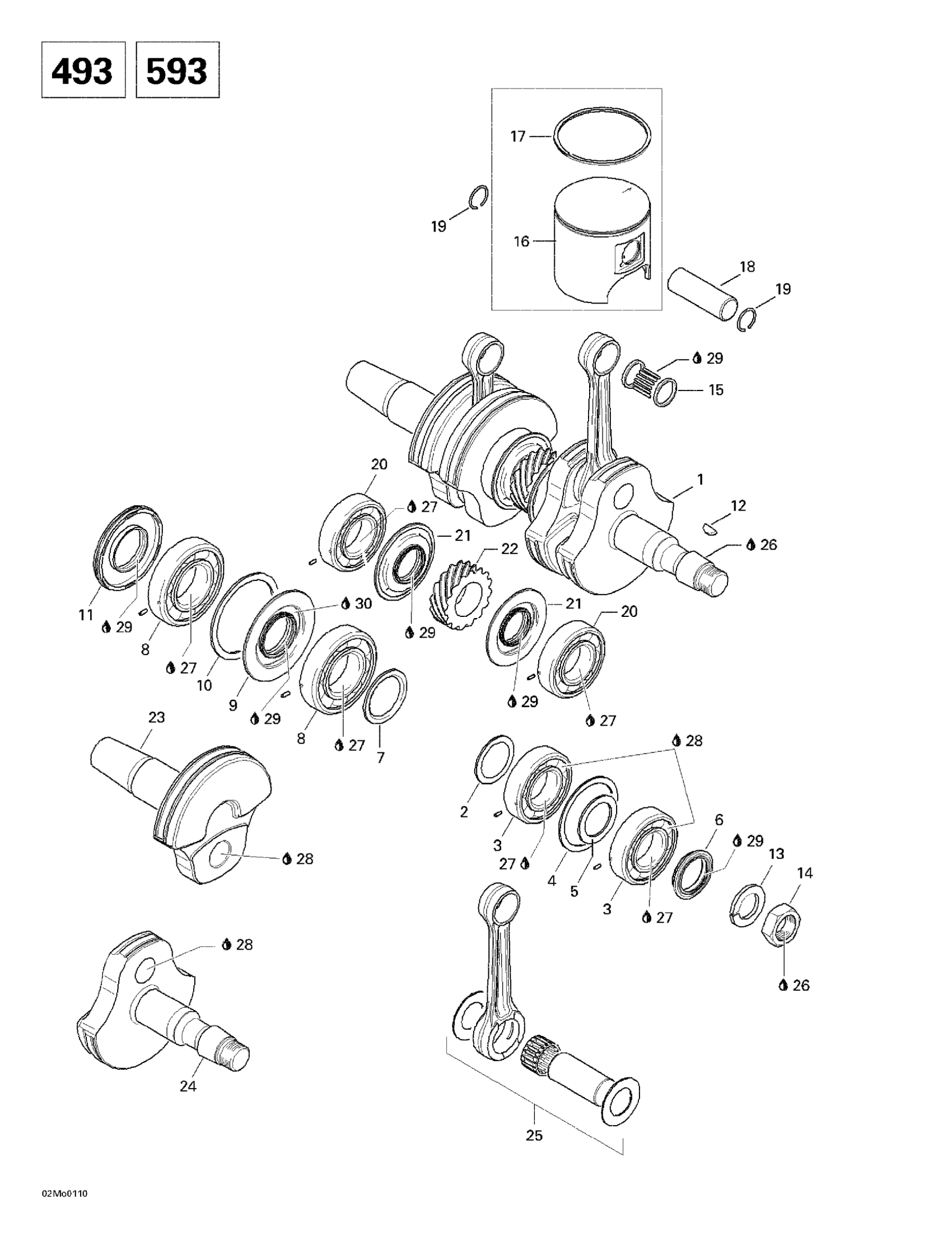

Ski-Doo MX Z 500/600/700, 2001 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12. Formula Deluxe 500.

420888462

Unavailable

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

Ball Bearing 6206

420832590

$46.12

4

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

Oil Seal

420931795

$16.89

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

Ball Bearing 6207 | With drive pin

420832575

Unavailable

9

Oil Seal

420931455

Unavailable

10

Retaining Disk

420927710

Unavailable

11

Oil Seal This part replaces 290831952.

420831952

Unavailable

12

Woodruff Key

420246015

Unavailable

13

Lock Washer, 22 mm

420945759

Unavailable

14

Hex. Nut, M22 X 1.5

420842239

Unavailable

15

Needle Bearing

420832320

Unavailable

Needle Bearing

420832445

Unavailable

16

Piston Ass'y (1 Ring 69.40 mm) | Includes 16 - 17. Formula Deluxe 500.

420888442

Unavailable

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

Unavailable

OversizePistonAss'y(1Ring69.65mm) | Formula Deluxe 500.

420888443

Unavailable

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$174.58

17

SEMI-TRAPEZ RING 69.50 MM - Call your local BRP dealership | Grand Touring 500.

420815043

Unavailable

Semi-Trapez Ring, Standard

420815155

Unavailable

Oversize Semi-Trapez Ring 69.75 mm | Grand Touring 500.

420815044

Unavailable

Semi-Trapez Ring, 1st

420815156

Unavailable

18

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

Piston Pin

420916412

Unavailable

19

Piston Circlip

420945735

Unavailable

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

20

Ball Bearing 6206

420832590

$46.12

21

Oil Seal | Included in gasket kit

420931940

$29.97

22

Central Gear, 15 Teeth

420834350

$93.82

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

Crankshaft This part replaces 420818693.

420818697

Unavailable

25

Rod Repair Kit, Mag Side | Grand Touring 500.

420888463

Unavailable

Rod Repair Kit, MAG Side

420890973

$319.99

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership | Grand Touring 500.

420888464

Unavailable

Rod Repair Kit, PTO Side

420890974

$319.99

26

Loctite 243, 10 ml

293800060

$20.77

27

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

28

Sealant Loctite 648

219703000

Unavailable

29

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

30

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable
