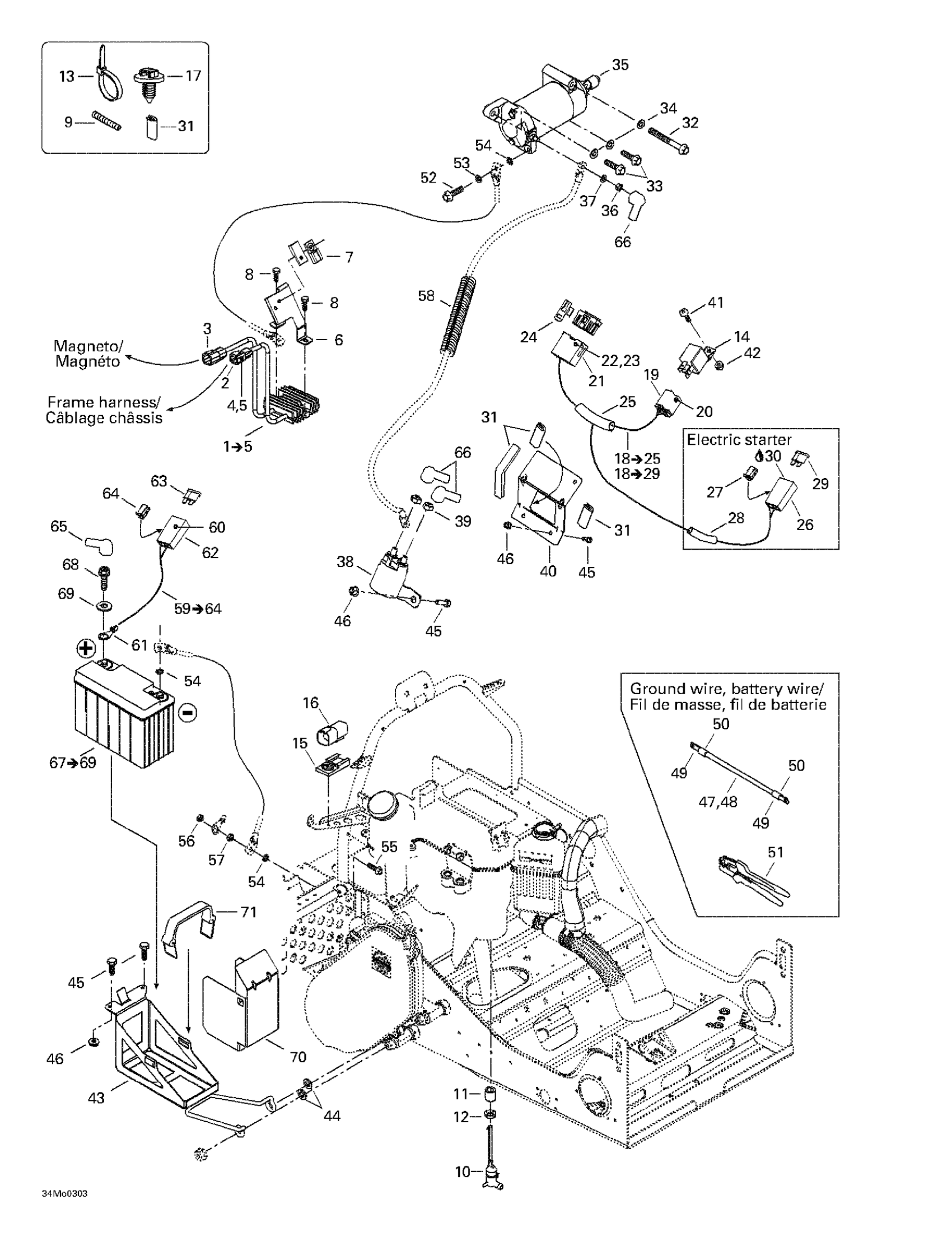

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Battery Diagram

#

Description
Price

1

Voltage Regulator

515175968

$226.09

2

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Male Terminal

515175568

$7.25

5

Female Lock, 2 Circuits

278001671

$3.12

6

Housing Support

515175842

Unavailable

7

Clip

270000141

$9.57

8

Taptite Screw

290841543

Unavailable

9

Was 409901800 Tubing (13 mm)

219704400

$10.79

Tubing 10 MM 1000MM Long

219704407

$2.52

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

10

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

11

Float

414681900

Unavailable

12

Contact Plate

414681901

Unavailable

13

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 173 mm

293750009

$0.97

14

Relay | DS 650 X

710010053

Unavailable

15

Clip

270000141

$9.57

16

Male Terminal Housing, 6 Circuits

515175668

$13.60

17

Mount Dart

293730040

$0.99

18

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.16

18

Configuration Harness | Includes items 25 to 32 / Manual starting

515175722

Unavailable

19

Female Housing, 5 Circuits

409209900

$8.72

20

Female Terminal

561503100

Unavailable

21

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

22

Male Terminal

515175232

$1.45

23

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

24

Housing Support

515175283

$8.18

25

Was 409901800 Tubing (13 mm)

219704400

$10.79

26

Fuse Holder

409004000

$6.79

27

CLIP - Call your local BRP dealership

409014200

Unavailable

28

Tubing 6 Mm 3000Mm Long

219704425

$12.75

29

Fuse, 5 Amperes | CE

278000344

$3.12

30

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

31

Was 271000110 Protection Trim

219704353

$14.58

32

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

33

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

34

Flat Washer With Teflon 8 mm

250200008

$3.58

35

Electric Starter Ass'y

515176133

$319.49

36

Elastic Stop Nut M6

232561414

$1.78

37

Flat Washer 6 mm

234061410

$1.19

38

Starter Relay

515176011

$59.67

39

Elastic Stop Nut M6

232561414

$1.78

40

Fuse Holder

515175907

Unavailable

41

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

42

Hex. Flange Elastic Nut M5

233251414

$1.91

43

Battery Support

515175718

Unavailable

44

Washer

503175800

$3.16

45

Hex. Screw M5 X 14

207151444

$0.82

Hex. Screw M5 X 14

207151444

$0.82

46

Hex. Flange Elastic Nut M5

233251414

$1.91

Hex. Flange Elastic Nut M5

233251414

$1.91

47

Ground Cable Battery, no 6, meter)

278001680

Unavailable

48

Cable Battery, no 6, meter)

278001690

Unavailable

49

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

50

Was 710000483 Heat Shrink Tubing

219704447

$72.36

51

Crimp Plier

529035730

Unavailable

52

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

53

Flat Washer 6 mm

234061410

$1.19

54

Lock Washer Serrated M6

250200041

$1.06

Lock Washer Serrated M6

250200041

$1.06

55

Hex. Flange Screw M6 X 20

207662044

$1.91

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

57

Hex. Nut M6

232061414

$0.51

58

Was 409901700 Tubing (9 mm)

219704399

$77.58

59

Battery Fuse Wire | Includes 21 to 22

515175489

$14.58

60

Female Terminal

409004200

$4.28

61

Open Barrel

278000992

$2.06

62

Fuse Holder

409004000

$6.79

63

Fuse, 30 Amperes

410917200

$3.12

64

CLIP - Call your local BRP dealership

409014200

Unavailable

65

Protection Cap

570151000

$17.88

66

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

67

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$144.75

68

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

69

Flat Washer 6 mm

234061410

$1.19

70

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

71

Battery Strap

515176044

$16.39
