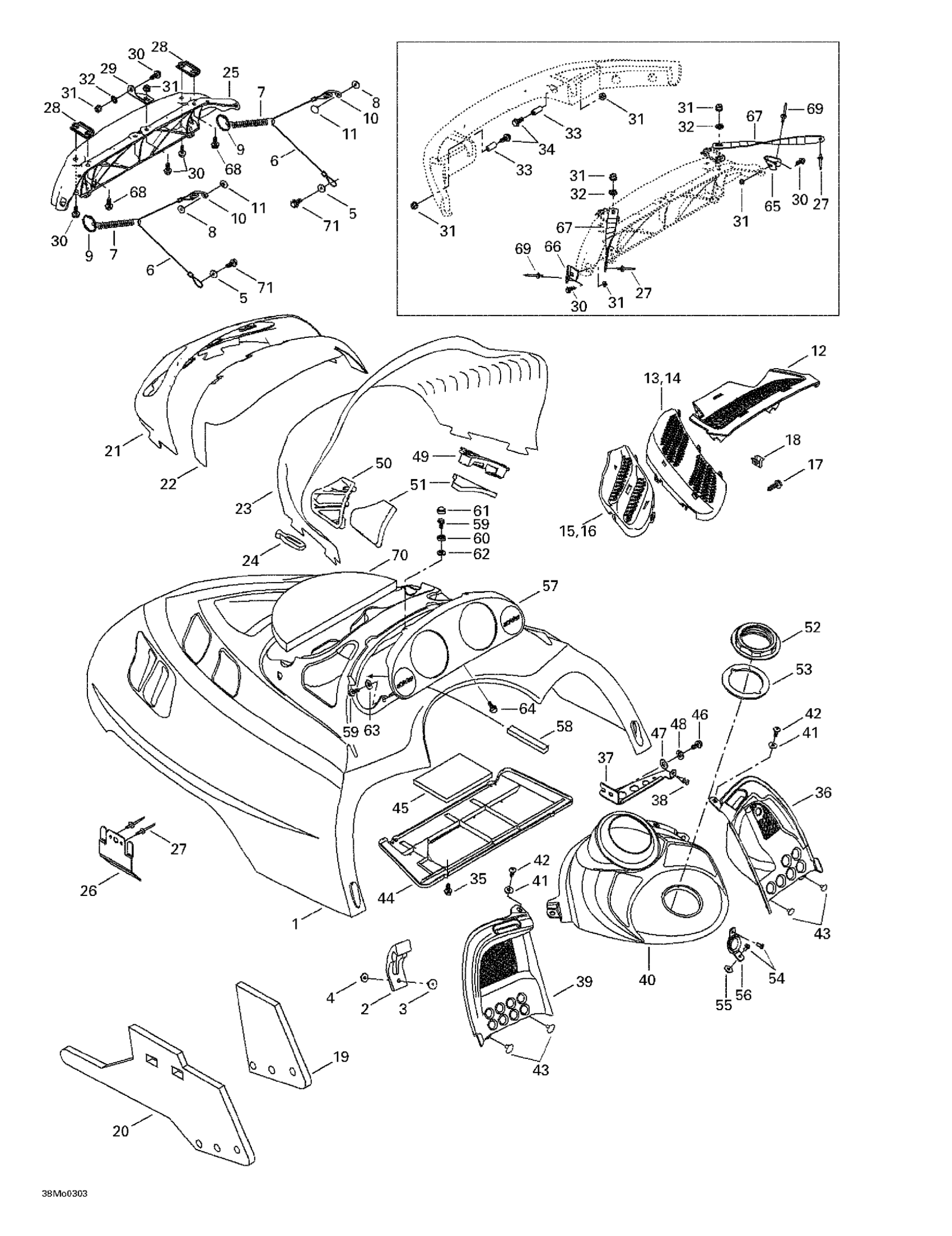

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Cab, Console Diagram
#
1
Hood | RED (B-176)
517302726
Unavailable
HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)
517302740
Unavailable
Hood | BLACK AND YELLOW (B-2T/160)
517302830
Unavailable
2
Hood Latch
570027100
Unavailable
4
Washer
517124300
Unavailable
5
Washer | DS 650 X
391301600
Unavailable
6
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
7
Spring
415043300
Unavailable
8
Washer
517124300
Unavailable
9
RING - Call your local BRP dealership
415058300
Unavailable
10
Bracket
517262800
Unavailable
12
CENTER GRILL, BLACK - Call your local BRP dealership
517302026
Unavailable
13
RH Intermediate Grill, Black | Grand Touring 500.
517302028
Unavailable
RH Intermediate Grill, Black
517302671
Unavailable
14
LH Intermediate Grill, Black | Grand Touring 500.
517302031
Unavailable
LH Intermediate Grill, Black
517302672
Unavailable
15
RH Side Grille
517302034
Unavailable
16
LH Side Grille
517302036
Unavailable
17
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
18
Edge Clip
517302785
Unavailable
19
RH Side Foam
517302675
Unavailable
20
LH Side Foam
517302630
Unavailable
21
Headlamp Moulding
517302582
Unavailable
Headlamp Moulding
517302648
Unavailable
22
WINDSHIELD SUPPORT - Call your local BRP dealership
517302003
Unavailable
23
Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F
517302022
Unavailable
24
Windshield Latch
570023800
Unavailable
25
Hinge
517302631
Unavailable
26
Hood Guide
517302615
Unavailable
28
HINGE SIDE PLATE - Call your local BRP dealership
517302176
Unavailable
29
Hinge Center Plate
517302045
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Lock Washer Serrated M6
250200041
Unavailable
33
BUSHING - Call your local BRP dealership
517302179
Unavailable
35
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
36
RH CONSOLE - Call your local BRP dealership
517302005
Unavailable
37
RH Console Support
517302621
Unavailable
38
Rubber Stopper
517302624
Unavailable
39
LH CONSOLE - Call your local BRP dealership
517302006
Unavailable
40
Center Console | RENEGADE (B-160) MX Z 600. MX Z 800.
517302728
Unavailable
Center Console
517302729
Unavailable
Center Console | RENEGADE (B-190) MX Z 600. MX Z 800.
517302783
Unavailable
Center Console | TRAIL & ADRENALINE (B-190)
517302784
Unavailable
41
Washer | DS 650 X
391301600
Unavailable
43
Pop Rivet 3/16"
293150103
Unavailable
44
AIR INTAKE PLATE - Call your local BRP dealership
517302836
Unavailable
45
Secondary Foam
517302425
Unavailable
47
Flat Washer 6 mm
234061410
Unavailable
49
RH AIR INTAKE GRILL - Call your local BRP dealership
517302024
Unavailable
50
LH AIR INTAKE GRILL - Call your local BRP dealership
517302025
Unavailable
51
Air Intake Foam
517302151
Unavailable
52
CONSOLE NUT - Call your local BRP dealership
517302043
Unavailable
53
Gasket
293250029
Unavailable
54
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
55
Rubber Stopper
517302286
Unavailable
56
Rope Guide
517302129
Unavailable
57
Indicator Support
517302760
Unavailable
58
Foam
517302420
Unavailable
61
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
62
Flat Washer 4 mm, Stainless
234042600
Unavailable
63
Washer
517124300
Unavailable
64
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
65
RH Corner Support
517302254
Unavailable
66
LH Corner Support
517302255
Unavailable
67
HOOD CLAMP - Call your local BRP dealership
517302837
Unavailable
68
Hex. Flange Screw M6 X 25
207662544
Unavailable
69
Pop Rivet 3/16"
390406500
Unavailable
70
CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM
517302317
Unavailable
