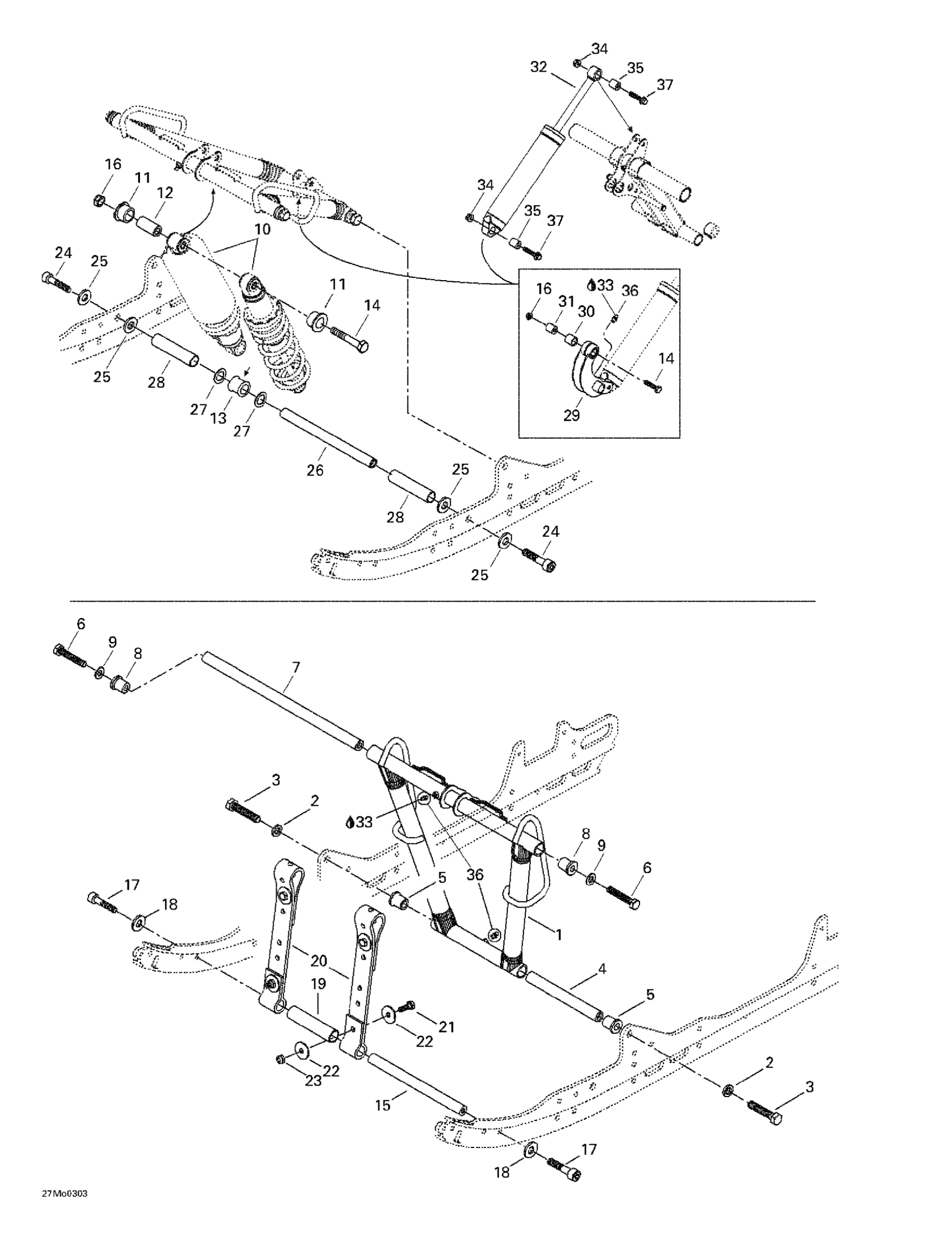

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

Unavailable

10

Center Shock | MX Z 500. MX Z 600.

503189763

Unavailable

Center Shock

503190008

Unavailable

Center Shock | MX Z 600. MX Z 800.

503190018

Unavailable

Center Shock | MX Z 500.

503190201

Unavailable

Center Shock | MX Z 800.

503190202

Unavailable

11

Urethane Bushing

503189117

Unavailable

12

Bushing | Includes 240d to 240d1

503189282

Unavailable

13

Bushing

503189271

Unavailable

14

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Elastic Locking Nut M10 X 1.5

233601416

$1.68

17

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

18

Washer

503189564

Unavailable

19

Spacer

503189265

$4.66

20

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

21

Hex. Screw M8 X 25

207182544

Unavailable

22

Flat Washer

224081301

$0.86

23

Hex. Elastic Stop Nut M8

232581414

Unavailable

24

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

25

Washer

503189276

Unavailable

26

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

27

Washer

503189273

Unavailable

28

SPACER - Call your local BRP dealership

503189274

Unavailable

29

Rocker

503189845

Unavailable

30

Rocker Axle

503189388

Unavailable

31

CUSHION - Call your local BRP dealership

503189626

Unavailable

32

Rear Shock

503191582

$157.66

Rear Shock | SE

503190007

Unavailable

Rear Shock | MX Z 500.

503190207

Unavailable

Rear Shock | GTX Sport Europe This part replaces 503190671.

503191023

Unavailable

Rear Shock | MX Z 800.

503190203

Unavailable

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Bushing

414936000

Unavailable

36

Grease Fitting

408200700

Unavailable

37

Hex. Flange Screw M8 X 40

207684044

Unavailable
