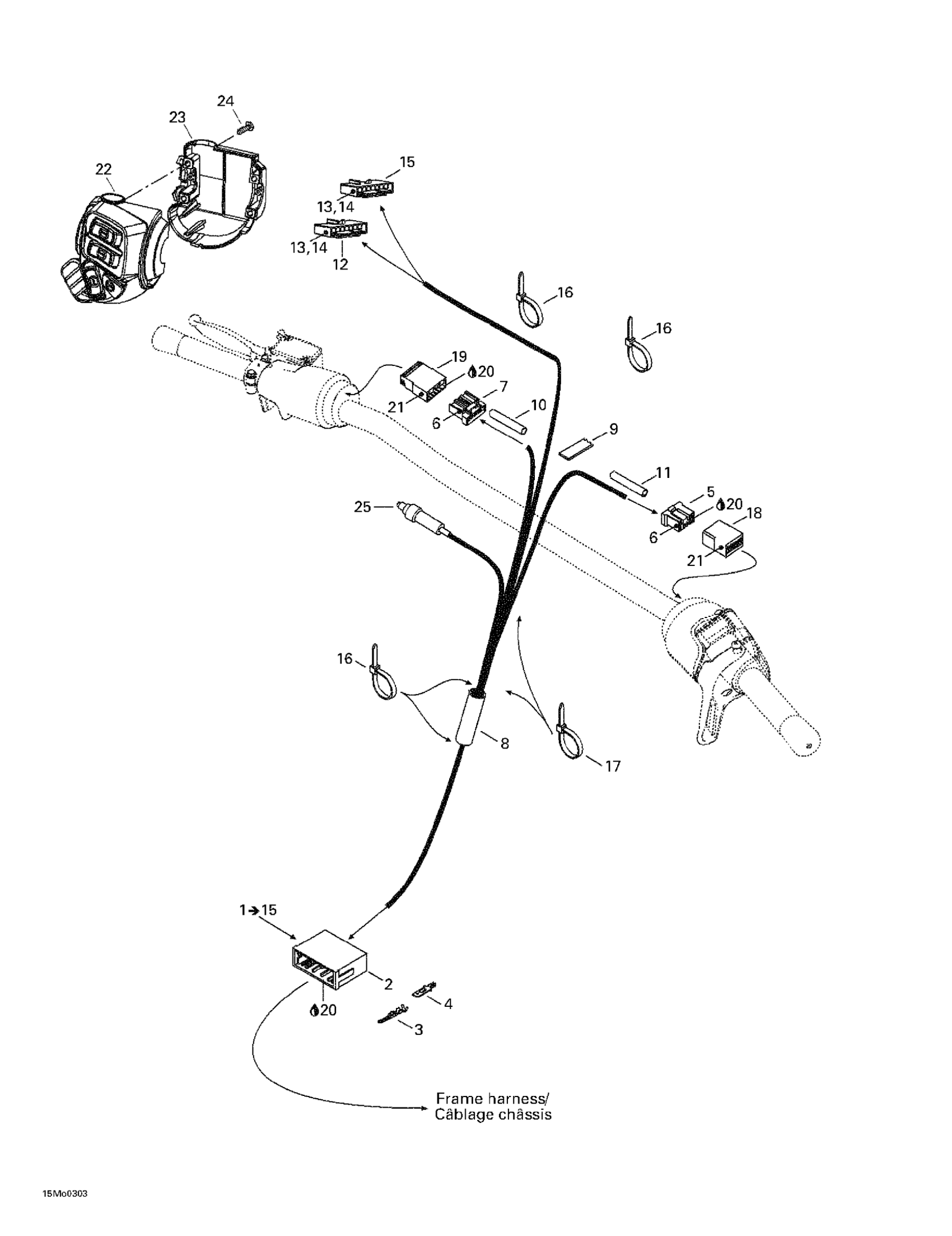

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Steering System Diagram

#

Description
Price

1

Wiring Harness | Includes 1 - 14.

515175844

Unavailable

Steering Wiring Harness | Grand Touring 600. Grand Touring 700.

515175897

Unavailable

2

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

3

Male Terminal

515175232

$1.49

4

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

5

Female Terminal Housing, 8 Circuits

515175819

$7.46

6

Female Terminal

515175231

Unavailable

7

Female Terminal Housing, 6 Circuits

515175543

$8.57

8

Tubing 10 mm

415079000

Unavailable

9

Tape

293740005

Unavailable

10

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

13

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

14

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

15

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

16

Tie-Rap 180 mm

414115200

$0.09

17

Tie Wrap 368 mm

293750008

$0.85

18

Male Terminal Housing, 8 Circuits

515175817

Unavailable

19

Male Terminal Housing, 6 Circuits

515175662

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

21

Male Terminal

515175232

$1.49

22

LH HOUSING SWITCH - Call your local BRP dealership

515175772

Unavailable

LH Switch Housing

515176062

Unavailable

23

Switch Housing Plate

515175926

Unavailable

24

Torx Screw #8-18

250000263

$1.02

25

Microswitch

507032366

Unavailable
