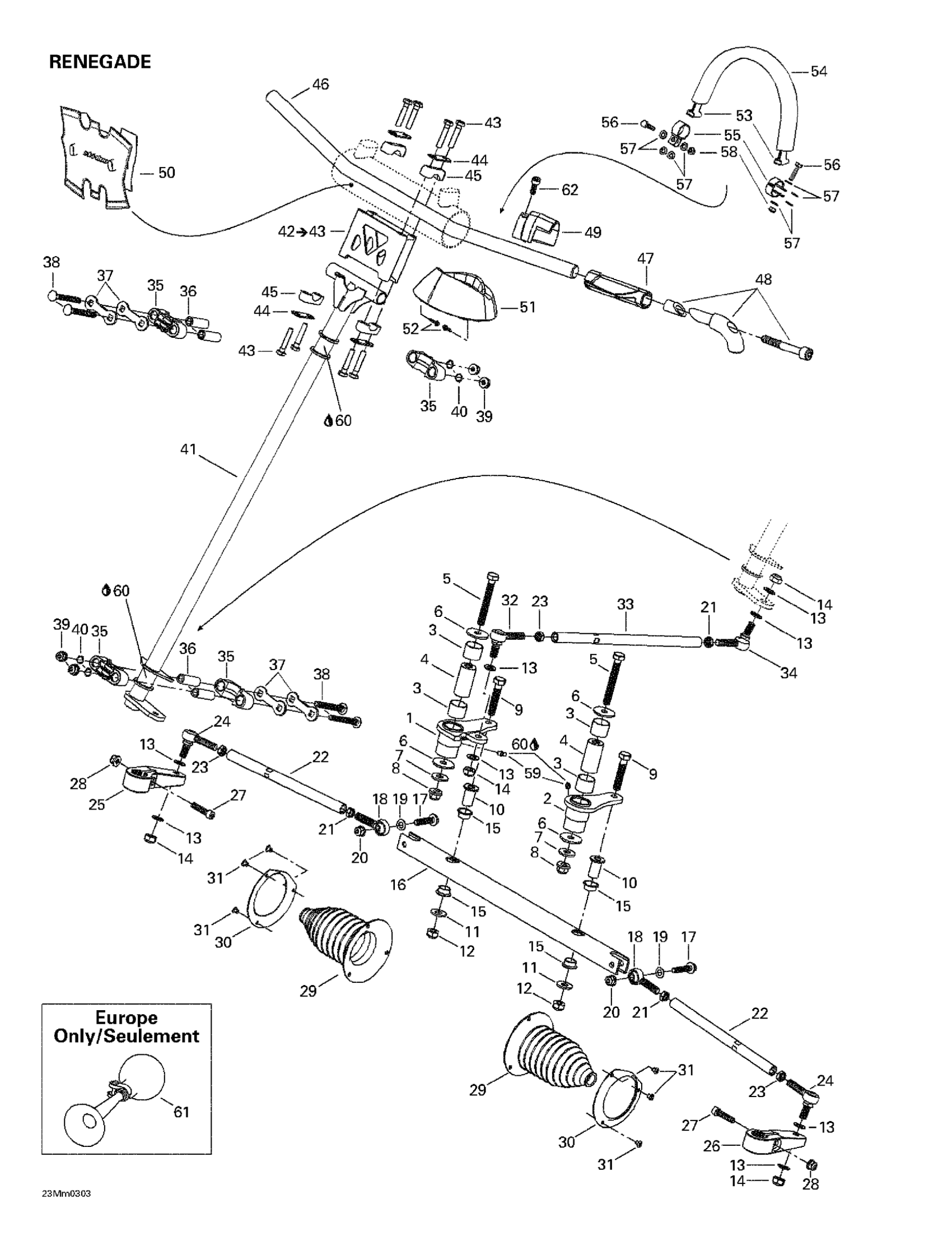

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Steering System (Renegade) Diagram
#
1
RH Swivel Arm
506151506
Unavailable
2
LH SWIVEL ARM - Call your local BRP dealership
506151623
Unavailable
3
BUSHING SWIVEL - Call your local BRP dealership
506149900
Unavailable
4
PIVOT SWIVEL - Call your local BRP dealership
506150100
Unavailable
5
Hex. Screw M10 X 80
207008086
Unavailable
6
Washer 10 mm
506150000
Unavailable
8
Flange Nut M10
732610084
Unavailable
10
BAR PIVOT - Call your local BRP dealership
506147300
Unavailable
11
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
14
Elastic Flange Nut M10
232501416
Unavailable
15
Swivel Bushing
503191555
Unavailable
16
Bar-Swivel
506147000
Unavailable
17
Hex. Flange Screw M8 X 40
207684044
Unavailable
18
LH BALL JOINT - Call your local BRP dealership
506151496
Unavailable
19
Washer
506151252
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
21
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
22
Tie Rod
506151376
Unavailable
23
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
24
Ball Joint
506151491
Unavailable
25
RH Steering Arm
506151451
Unavailable
26
LH Steering Arm
506151452
Unavailable
27
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083544
Unavailable
28
Hex. Flange Elastic Nut M8
233281414
Unavailable
29
TIE-ROD CAP - Call your local BRP dealership
570070500
Unavailable
30
RETAINER RING - Call your local BRP dealership
506151100
Unavailable
31
Pop Rivet 3/16"
390402300
Unavailable
32
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
33
TIE-ROD - Call your local BRP dealership
506151375
Unavailable
34
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
35
Housing Half
506150400
Unavailable
36
Housing Bushing
506150500
Unavailable
37
Stopper Plate
506150600
Unavailable
38
Carriage Bolt M8 X 70
207787044
Unavailable
39
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
O-RING - Call your local BRP dealership
506151140
Unavailable
41
Main Tube | MX Z 600. MX Z 800.
506151488
Unavailable
42
Extention Handle Bar kit | Includes 42 - 43. MX Z 600. MX Z 800.
860601300
Unavailable
43
Hex. Screw With Nylon M8 X 40
250000074
Unavailable
44
Stiffner
709400509
Unavailable
45
Steering Support
709400919
Unavailable
46
Handle Bar | MX Z 600. MX Z 800.
506151679
Unavailable
47
Handle Grip | MX Z 600. MX Z 800.
506151717
Unavailable
48
Black Hook
506151596
Unavailable
49
ADAPTATOR - Call your local BRP dealership
506151566
Unavailable
50
Steering Pad | MX Z 600. MX Z 800.
506151625
Unavailable
51
Console Collar | MX Z 600. MX Z 800.
506151514
Unavailable
52
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
55
Support Plate
506148200
Unavailable
56
Hex. Screw M6 X 25
207162544
Unavailable
57
Flat Washer 6 mm
234061410
Unavailable
58
Elastic Stop Nut M6
232561414
Unavailable
59
Grease Fitting
408200700
Unavailable
60
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
62
SOCKET SET SCREW M8 X 12 - Call your local BRP dealership
206581244
Unavailable
