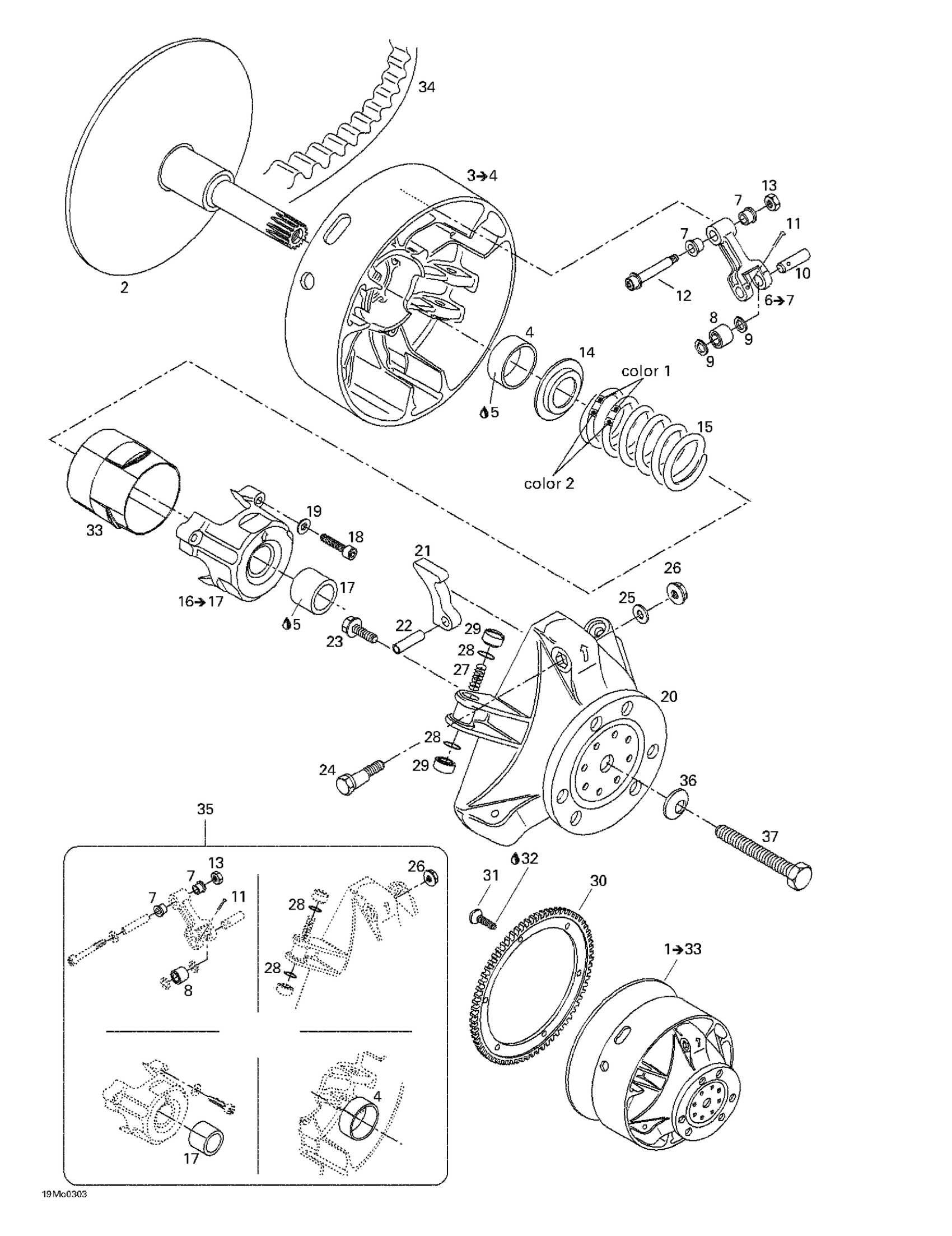

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222411

Unavailable

Fixed Flange

417222411

Unavailable

FIXED FLANGE ASSY - Call your local BRP dealership

417222272

Unavailable

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

4

Bushing

417004201

Unavailable

5

Loctite 609, 10 ml

413703100

$24.58

6

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

7

Bushing

417004305

Unavailable

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417004308

Unavailable

11

Cotter Pin

250400060

$1.60

12

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

13

Elastic Stop Nut M6

232561414

Unavailable

14

Spring Seat

417222044

Unavailable

15

Spring, Green/violet | 800R Power TEK

414762800

$14.75

SPRING, GREEN/WHITE - Call your local BRP dealership

417222371

Unavailable

Spring, Green/Pink

414756900

$16.12

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

16

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

17

Bushing

417004501

Unavailable

18

Socket Head Screw M6 X 40

250000038

Unavailable

19

WASHER - Call your local BRP dealership

420245370

Unavailable

20

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

21

Ramp 283 | Grand Touring 500.

417222376

Unavailable

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

RAMP 301 - Call your local BRP dealership | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222474

Unavailable

22

Pin M8 X 24

732804009

Unavailable

23

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

24

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

25

Washer

417005600

$3.86

26

Hex. Flange Nut M6

233061414

Unavailable

27

Spring

417005700

Unavailable

28

O-Ring

732401030

$0.95

29

Slider Shoe This part replaces 420460045.

417223021

$6.09

Slider Shoe This part replaces 420460045.

417223021

$6.09

30

Ring Gear

417300057

Unavailable

31

Hex. Screw M8 X 16

236281684

Unavailable

32

Loctite 271, 10 ml

293800005

Unavailable

33

Guard

417222176

Unavailable

34

Drive Belt

414860700

Unavailable

Drive Belt

417300585

Unavailable

35

Clutch Repair Kit

417006100

Unavailable

36

Spring Washer 14 mm

250200006

Unavailable

37

Drive Pulley Bolt

417120000

$63.82
