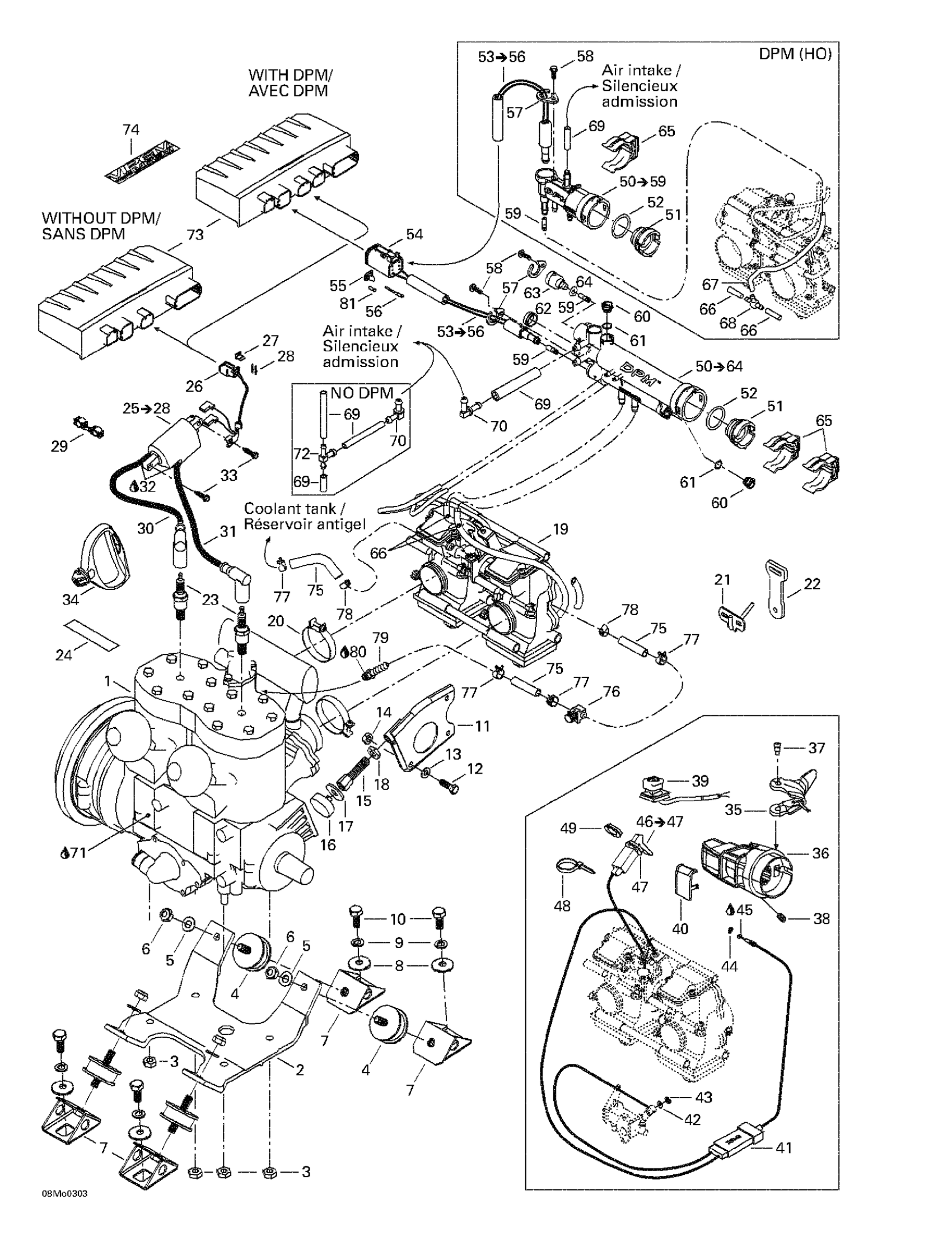

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Engine Support Diagram

#

Description
Price

1

Engine 493 | STD 500 ADRENALINE. STD 500 TRAIL MX Z 500.

400409429

Unavailable

Engine 493 RER | Grand Touring 500.

400409430

Unavailable

Engine 593 | STD 600 ADRENALINE. STD 600 TRAIL MX Z 600.

400509735

Unavailable

Engine 593 RER | Grand Touring 600.

400509736

Unavailable

Engine 593 Ho | STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.

400509737

Unavailable

Engine 593 Ho | RER 600 HO ADRENALINE. RER 600 HO RENEGADE MX Z 600.

400509738

Unavailable

Engine 693 | STD 700 ADRENALINE. STD 700 RENEGADE MX Z 700.

400604025

Unavailable

«693» Engine (Rer) | 700

400604026

Unavailable

Engine 793 | STD 800 ADRENALINE. STD 800 RENEGADE MX Z 800.

400702612

Unavailable

Engine 793 | RER 800 ADRENALINE. RER 800 RENEGADE MX Z 800.

400702613

Unavailable

2

Engine Support

512059173

Unavailable

ENGINE SUPPORT - Call your local BRP dealership

512059488

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.26

4

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

5

Flat Washer 10 mm

234001410

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Engine Support

512050900

Unavailable

8

Lock Washer

512056700

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Screw M10 X 25

207102544

Unavailable

11

Support Plate

512058500

Unavailable

12

Hex. Screw M8 X 20

207182044

$0.61

13

Flat Washer 8 mm

234081410

Unavailable

14

Hex. Elastic Stop Nut M8

232581414

Unavailable

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Stopper

512059056

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Nut Hexagonal RH.

232026414

Unavailable

19

Carburetor Kit | 800 ADRENALINE & RENEGADE MX Z 800.

403138729

Unavailable

Carburetor Kit Tm 40 B-241 | 700

403138730

Unavailable

Carburetor Kit | 600 HO ADRENALINE & RENEGADE MX Z 600.

403138733

Unavailable

Carburetor Kit Tm 40 B-232 | 600

403138731

Unavailable

Carburetor Kit Tm 40 B-229 | Grand Touring 500.

403138732

Unavailable

20

Gemi Clamp

512059835

Unavailable

21

Carburetor Bracket

512059504

Unavailable

22

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

23

Spark Plug NGK BR9ECS-5

512059552

$9.70

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

24

Spark Plug Decal

516000986

Unavailable

25

Ignition Coil | INCLUDES ITEMS 22 TO 25

512059512

Unavailable

26

Female Connector, 2 Circuits

409207300

$9.60

27

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

28

Female Terminal

278000632

Unavailable

29

Plastic Clip, Spark Plug Wire

410914600

Unavailable

30

Cable Ass’y, 375 mm

512059696

Unavailable

31

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

34

Starter Grip

572084400

Unavailable

35

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

36

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

37

Flange Screw

732601143

$4.02

38

Socket Set Screw M8 X 10

414440800

$4.00

39

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

40

Switch Cover

572100901

Unavailable

41

THROTTLE CABLE - Call your local BRP dealership | SPORT

512059679

Unavailable

42

Flat Washer 8 mm, Nylon

234081100

$1.00

43

Circlip

414753500

$0.59

44

Circlip

414274500

Unavailable

45

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

46

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

47

Lock Washer, Interior Teeth

394103300

Unavailable

48

Tie-Rap 173 mm

293750009

Unavailable

49

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

50

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

50

Pressure Manifold Ass’Y | Grand Touring 700.

512059634

Unavailable

51

CAP - Call your local BRP dealership

270600009

$5.63

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

52

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

O-RING - Call your local BRP dealership

293300042

$7.69

53

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

54

Male Housing, 6 Circuits

515175673

$13.05

55

Male Wedge, 6 Circuits

515175678

Unavailable

56

Female Terminal

278000632

Unavailable

57

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

58

Screw K40 X 10

241140060

$1.25

59

STARTER JET - Call your local BRP dealership

404161825

Unavailable

60

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

61

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

62

Cap | Grand Touring 600. Grand Touring 700.

512058982

Unavailable

63

Cap | Grand Touring 600. Grand Touring 700.

512059557

Unavailable

64

O-Ring | Grand Touring 600. Grand Touring 700.

512059558

Unavailable

65

SUPPORT - Call your local BRP dealership

512058919

Unavailable

SUPPORT - Call your local BRP dealership

512058919

Unavailable

66

Polyurethane Hose 10000Mm Long

219704410

Unavailable

Polyurethane Hose 10000Mm Long

219704410

Unavailable

67

Polyurethane Hose | DPM-HO ADRENALINE & RENEGADE MX Z 600.

512059524

Unavailable

68

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

69

Hose | Grand Touring 600. Grand Touring 700.

512059523

Unavailable

Hose | DPM-HO ADRENALINE & RENEGADE MX Z 600.

512059651

Unavailable

Polyurethane Hose 10000Mm Long

219704410

Unavailable

70

Elbow Male Connector

414580600

$3.50

71

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

72

T-Fitting

572045500

Unavailable

73

Calibration Module | STD 500 ADRENALINE & TRAIL MX Z 500.

512059636

Unavailable

Calibration Module | Grand Touring 500.

512059638

Unavailable

Calibration Module | STD 600 ADRENALINE & TRAIL MX Z 600.

512059639

Unavailable

Calibration Module | Grand Touring 600.

512059641

Unavailable

Calibration Module, Dpm | STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 500. MX Z 700.

512059642

Unavailable

Calibration Module, Dpm | RER 600 HO ADRENALINE. RER 600 HO RENEAGADE MX Z 500. MX Z 700.

512059644

Unavailable

Calibration Module, Rer-Dpm | RER 700 ADRENALINE. RER 700 RENEGADE MX Z 500. MX Z 800.

512059645

Unavailable

Calibration Module, Dpm | STD 700 ADRENALINE. STD 700 RENEGADE MX Z 500. MX Z 800.

512059649

Unavailable

Calibration Module, Rer-Dpm | RER 800 ADRENALINE MX Z 500. RER 800 RENEGADE MX Z 500..

512059647

Unavailable

Calibration Module, Dpm | STD 800 ADRENALINE MX Z 500. STD 800 RENEGADE MX Z 500..

512059650

Unavailable

74

Electrical Box Decal

516000245

Unavailable

75

Hose 8 mm

509000093

Unavailable

Hose 8 mm

509000093

Unavailable

Hose 8 mm

509000093

Unavailable

76

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

77

Spring Clamp

414655700

Unavailable

78

Tridon Gear Clamp

293650170

$1.74

79

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

80

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

81

Sealing Cap

293000052

Unavailable
