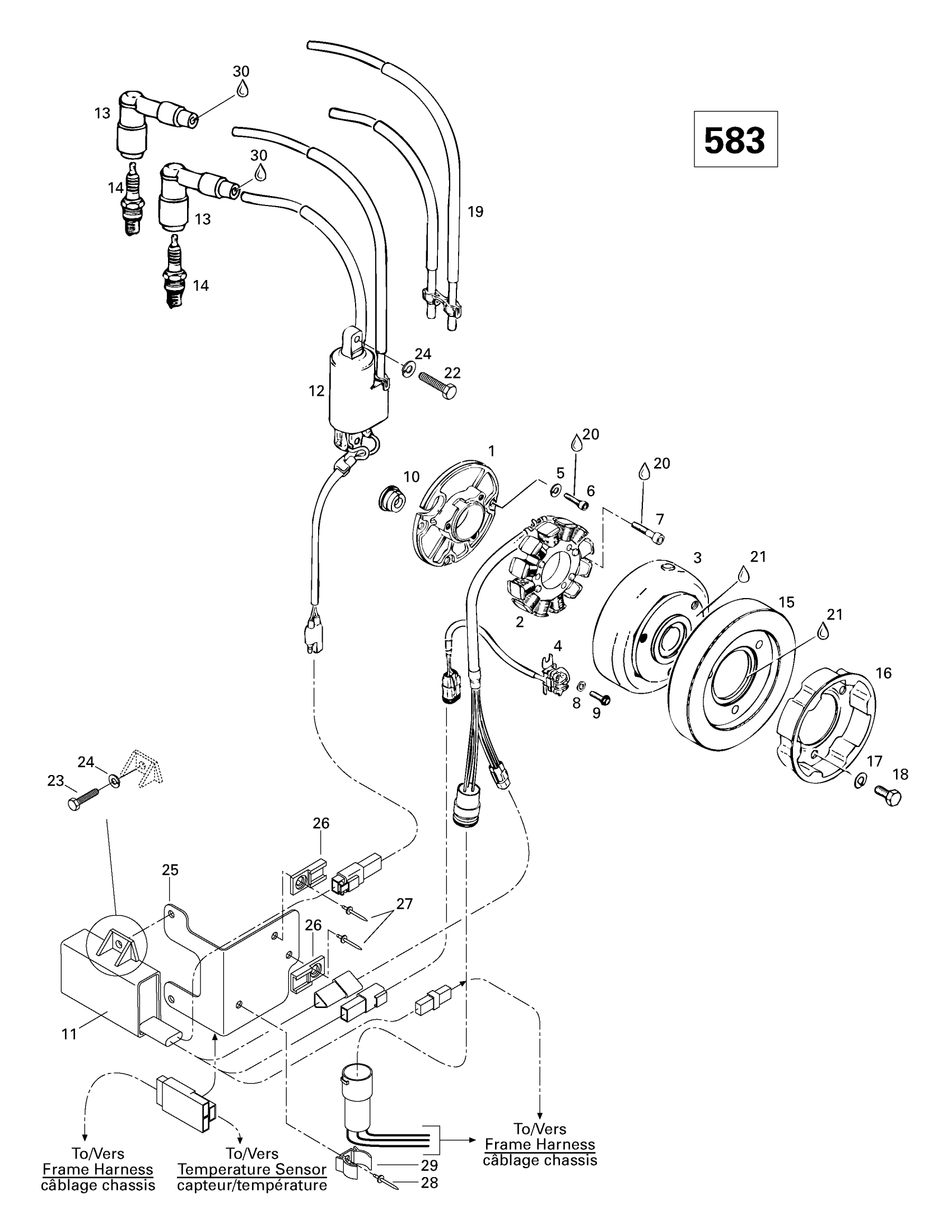

Ski-Doo MX Z 500/583/670, 1998 03- Magneto 12V 220W (583) Diagram
#
Description
Price
1
Armature Plate | Formula Deluxe 583.
420810262
Unavailable
2
Magneto Ass'y 12V 220W | Includes 2 - 4. Formula Deluxe 583.
410922400
Unavailable
2
Stator Ass'y | Formula Deluxe 583.
410922100
Unavailable
3
Magneto Flywheel | Formula Deluxe 583.
410922500
Unavailable
4
Pick Up Ass'y | Formula Deluxe 583.
410921100
Unavailable
5
Lock Washer
420945750
Unavailable
6
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership
420941540
Unavailable
7
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
8
WASHER - Call your local BRP dealership
420827800
Unavailable
9
Taptite Screw M5 X 16
420941928
Unavailable
10
Cable Crommet | Touring E. Touring E LT (2). Touring LE.
420960288
Unavailable
11
Amplifier-Box | Skandic WT LC.
415085300
Unavailable
12
IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.
415085400
Unavailable
15
Flywheel | Formula Deluxe 583.
420866759
Unavailable
16
Starting Pulley | Formula Deluxe 700.
420852411
Unavailable
19
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
25
Cable Support | Formula 500. Formula 500 Deluxe.
517297000
Unavailable
28
RIVET_POP 1/8 - Call your local BRP dealership
390402500
Unavailable
29
Clip
415089700
Unavailable
30
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
