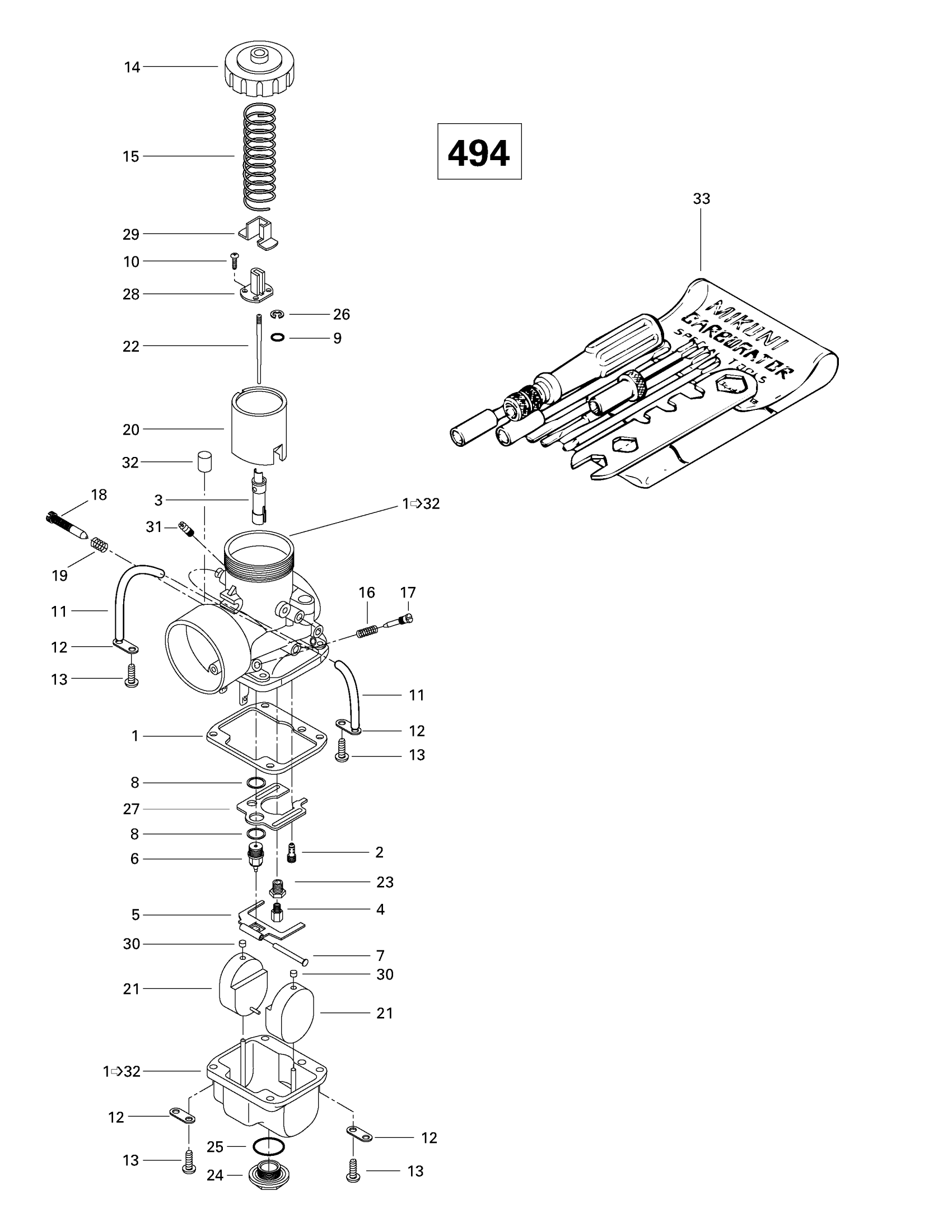

Ski-Doo MX Z 500/583/670, 1998 Carburetors (494) Diagram

#

Description
Price

1

Carburetor VM 38-380 (PTO) | Includes 1 - 32. MX Z 500.

403134400

Unavailable

Carburetor VM 38-381 (MAG) | MX Z 500.

403134500

Unavailable

1

GASKET - Call your local BRP dealership

404104700

Unavailable

2

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

3

Needle Jet NJ-480-Q4 | MX Z 500.

404149100

Unavailable

4

Main Jet 330

404101400

$8.36

Main Jet 300

404162115

$9.06

5

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

6

Needle Valve 1.5

404147400

$42.49

7

Lever Pin

404103300

$6.27

8

Seat Washer

404101600

$3.29

9

Packing

404117000

$3.29

10

Screw With Washer

404121300

$4.14

11

Hose | Grand Touring SE.

404109800

Unavailable

12

PLATE - Call your local BRP dealership

404103000

Unavailable

13

Screw With Lock Washer

404102000

$3.18

14

COVER - Call your local BRP dealership

404105100

Unavailable

15

Spring

404154800

$23.99

16

SPRING - Call your local BRP dealership

404139800

Unavailable

17

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

18

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

19

Spring

404101700

$4.14

20

Piston Valve CA 2.5

404131300

Unavailable

21

FLOAT - Call your local BRP dealership

404105400

Unavailable

22

Jet Needle J8-6DHY48 | Summit 500.

404161500

Unavailable

23

Guide Screw

404105500

$31.99

24

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

25

O-RING - Call your local BRP dealership

404101500

Unavailable

26

E-Ring

404152400

$7.27

27

Not Available As Spare Part - Friction Washer

Unavailable

28

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

29

Cover

404122100

$19.49

30

Cap

404105800

$6.38

31

Nipple

404153400

$12.16

32

Filter | Formula Deluxe 380.

404158900

Unavailable

33

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

34

High Altitude Kit, (Not Shown) | MX Z 500.

861762300

Unavailable
