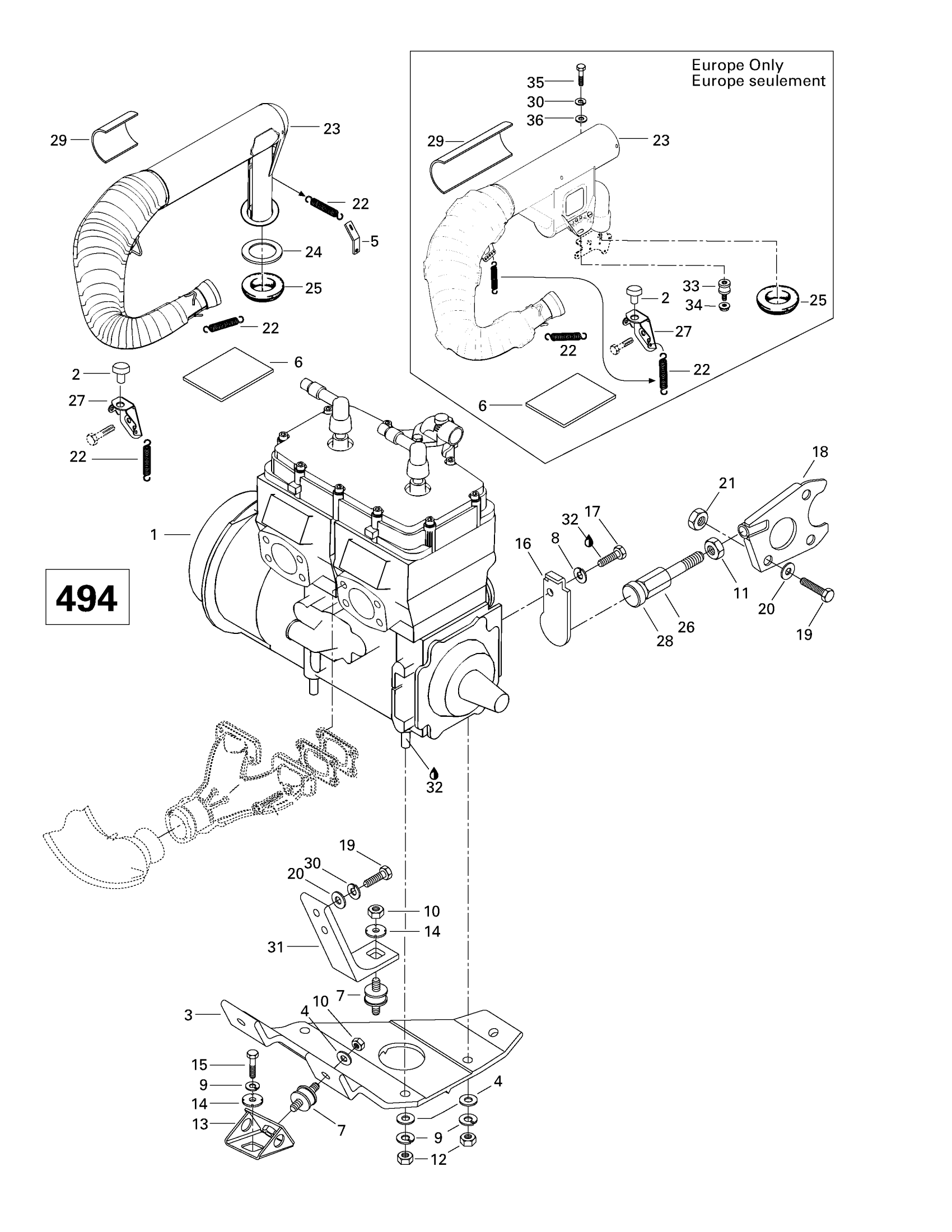

Ski-Doo MX Z 500/583/670, 1998 01- Engine Support And Muffler (494) Diagram

#

Description
Price

1

<<494>> Engine

400409200

Unavailable

2

Rubber Bumber

514048200

Unavailable

3

Engine Support | MX Z 500.

512054200

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

Spring Bracket

514054522

$8.45

6

Reflective Sheet | MX Z 500.

415025400

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Lock Washer M6, Black

234161471

$0.53

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Nut Hexagonal RH.

232026414

$1.48

12

Hex. Nut M10 X 1.5

232006414

$1.37

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

$3.17

15

Hex. Screw M10 X 25

207102544

$1.37

16

Stopper Plate

512052900

Unavailable

17

Hex. Screw M6 X 16

207161644

$0.74

18

Plate | Formula Z 583. Formula Z 670.

512055500

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Flat Washer 8 mm

234081410

$0.83

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Spring

415107100

$6.35

23

Muffler (Canada-U.S.) | Includes 23 - 26. MX Z 500.

514052200

Unavailable

Muffler (Europe) | MX Z 500.

514052300

Unavailable

24

Aluminum Washer

514049300

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

27

Muffler Support

514048600

Unavailable

Muffler Support

514044100

Unavailable

28

Stopper

512059056

Unavailable

29

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable

30

Lock Washer 8 mm

234181401

$0.92

31

Engine Support | MX Z 500.

512054300

Unavailable

32

Loctite 271, 10 ml

293800005

$26.99

33

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

36

Flat Washer 8 mm

234082410

$1.47
