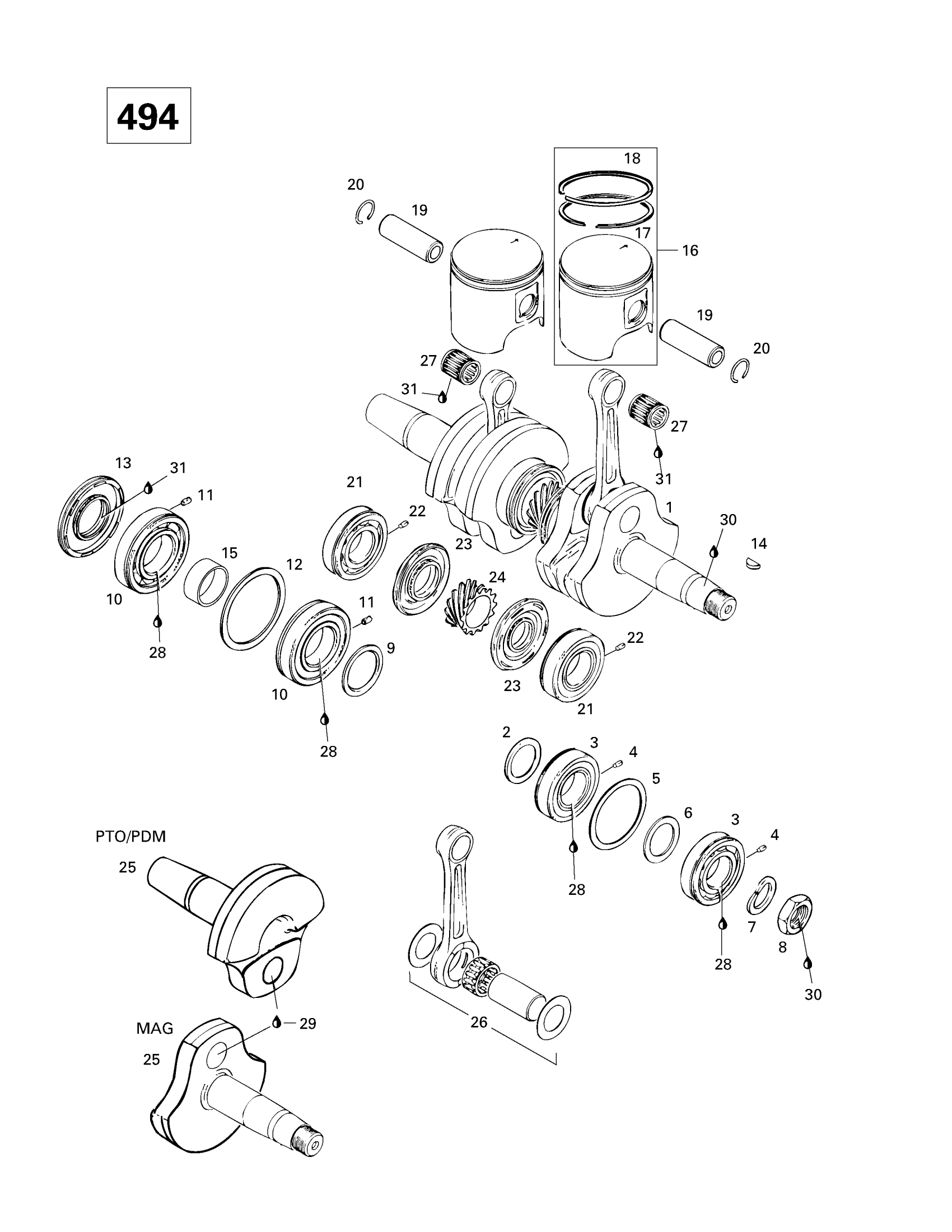

Ski-Doo MX Z 500/583/670, 1998 01- Crankshaft And Pistons (494) Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 15. Formula Deluxe 500 LC.
420886932
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827445
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Dowel Pin
420929972
Unavailable
5
ADJUSTMENT WASHER - Call your local BRP dealership
420427684
Unavailable
6
RETAINING DISK - Call your local BRP dealership
420827050
Unavailable
9
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
11
Dowel Pin
420929972
Unavailable
15
Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.
420847684
Unavailable
16
Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.
420887553
Unavailable
Oversize Pist. Ass'y (2 rings 69.64 mm)
420887554
Unavailable
17
Rectangular Ring 69.5 mm
420915985
Unavailable
OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership
420915986
Unavailable
18
Semi-trapez Ring 69.5 mm
420815045
Unavailable
Oversize Semi-trapez Ring 69.75 mm
420815046
Unavailable
19
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
21
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
22
Dowel Pin
420929972
Unavailable
24
Central Gear 14 Teeth
420935748
Unavailable
25
Crankshaft (PTO side)
420818660
Unavailable
Crankshaft (MAG side)
420818690
Unavailable
26
Crankshaft Repair Kit (PTO side)
420886955
Unavailable
CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership
420886956
Unavailable
27
Needle Bearing
420832438
Unavailable
28
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
