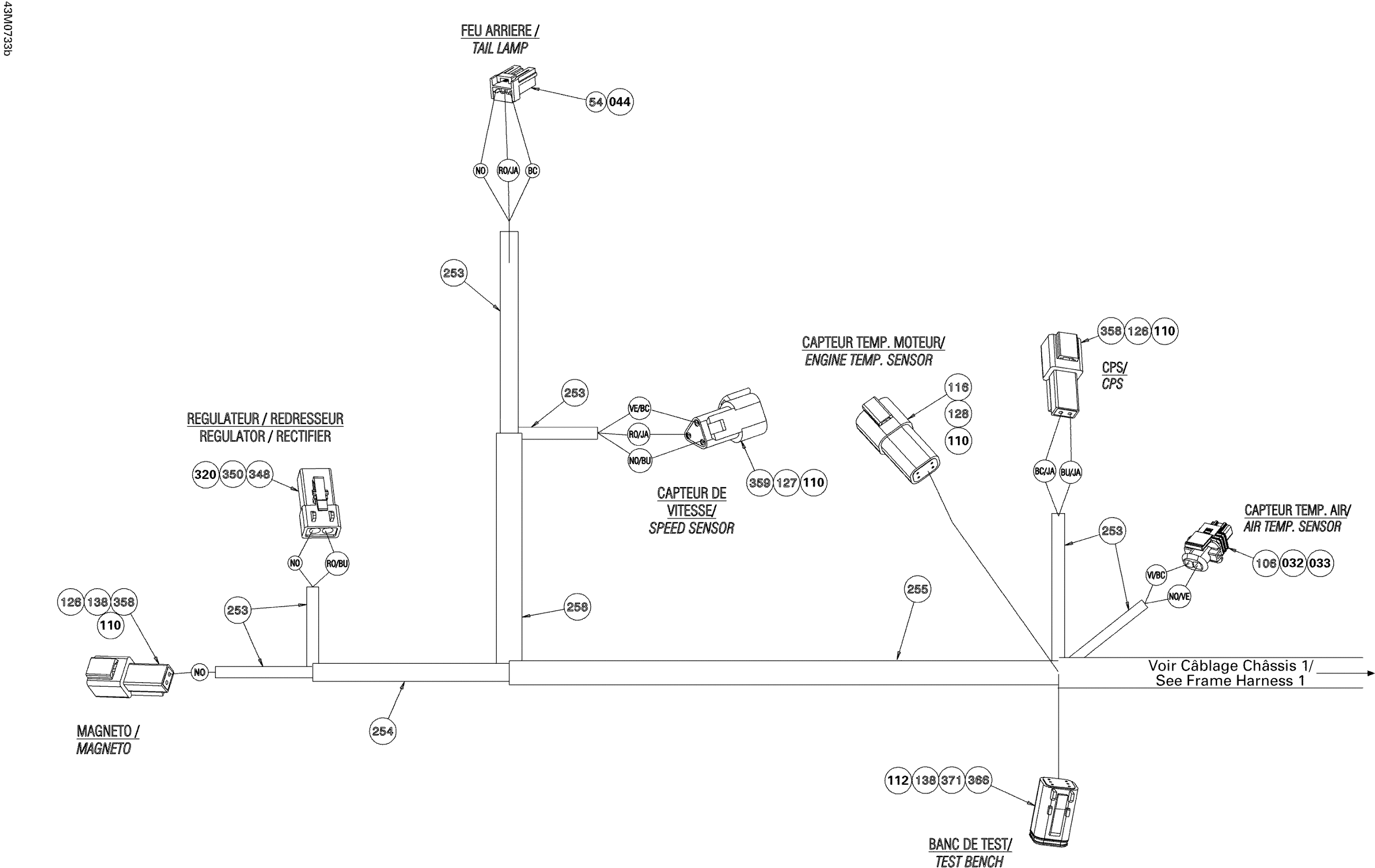

Ski-Doo MX Z 440X Racing, 2007 10- Electrical Harness 2 Diagram

#

Description
Price

1

FRAME HARNESS - Call your local BRP dealership

515176359

Unavailable

32

Female Terminal

278000998

$4.39

33

Wire Seal

278000999

$3.19

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

77

Female Terminal

409010300

$4.39

99

Open Barrel

278000992

$2.21

106

Male Housing, 2 Circuits

278001005

$19.49

109

Female Housing, 5 Circuits

409209900

$9.59

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

116

Female Housing, 4 Circuits

278000635

$16.49

126

Male Lock, 2 Circuits

409207500

$3.19

127

Male Lock, 3 Circuits

409207600

$3.19

128

Female Wedge, 4 Circuits

278000636

$4.39

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

205

Female Terminal

409011600

$5.39

206

Female Terminal

409004200

$4.55

221

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

224

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

226

Male Terminal | XT Models

278000222

$3.19

232

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

284

Seal

409012300

$4.54

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

320

Female Terminal

515175567

$7.69

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

350

Female Lock, 2 Circuits

278001671

$3.58

358

Male Terminal Housing, 2 Circuits

515175665

$9.29

359

Male Housing

515175666

$15.49

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

364

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

366

Male Housing, 6 Circuits

515175673

$15.49

368

Female Lock, 2 Circuits

515175675

$4.55

369

Female Lock, 3 Circuits

515175676

$5.39

371

Male Wedge, 6 Circuits

515175678

$5.39

372

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

484

Seal

415128501

$1.89

652

Female Housing

515176221

$15.99

653

Wire Seal

515176222

$16.86

654

Female Terminal Housing, 36 Circuits

515176223

$14.99

655

Terminal Support

515176224

$15.99
