Description

Price

1

Flat Washer

517225900

$0.18

2

Clip

270000141

$11.49

3

Avdel Rivet 3/16"

293150037

$0.56

4

Pop Rivet 3/16”

390410100

$0.57

5

Tie Wrap 368 mm

293750008

$1.04

6

Temperature Sensor This part replaces 515176043.

515177835

$92.99

7

Male Connector, 4 Circuits | CE

278000739

$19.49

8

Female Terminal

278000632

$2.09

9

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

10

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

11

Relay | DS 650 X

710010053

$23.49

12

Mount Dart

293730040

$1.04

13

Tie-Rap 180 mm

414115200

$0.11

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

16

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

17

Temperature Sensor

515176132

$339.99

18

Tubing 6 Mm 3000Mm Long

219704425

$13.75

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

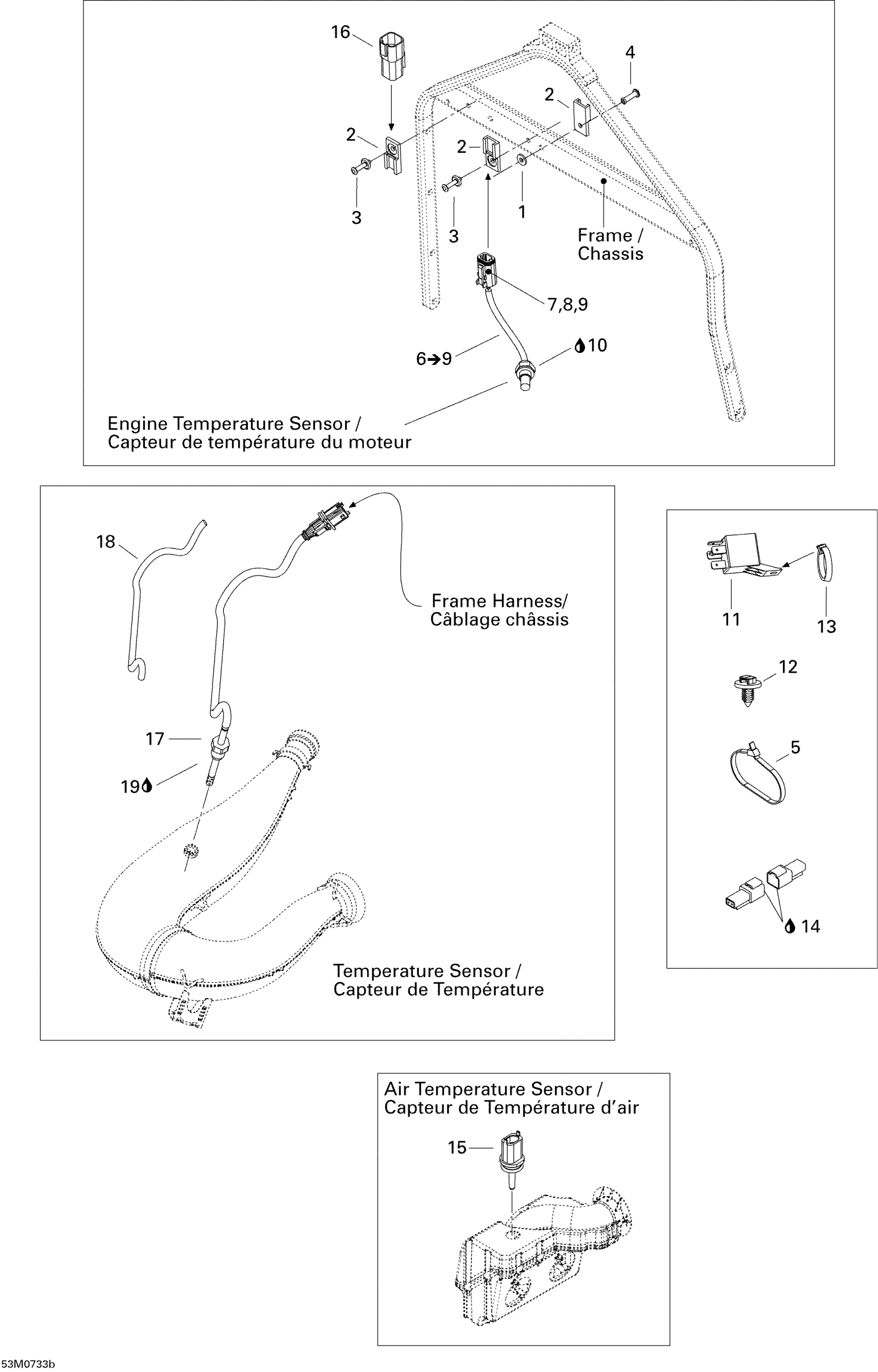

Ski-Doo MX Z 440X Racing, 2007 10- Electrical Accessories 2 Diagram

Flat Washer

Clip

Avdel Rivet 3/16"

Pop Rivet 3/16”

Tie Wrap 368 mm

Temperature Sensor This part replaces 515176043.

Male Connector, 4 Circuits | CE

Female Terminal

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Was 293800018 Loctite 592, 50 ml | Package T

Relay | DS 650 X

Mount Dart

Tie-Rap 180 mm

Was 293550004 Dielectric Grease, 150 g

AIR TEMPERATURE SENSOR - Call your local BRP dealership

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Temperature Sensor

Tubing 6 Mm 3000Mm Long

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
