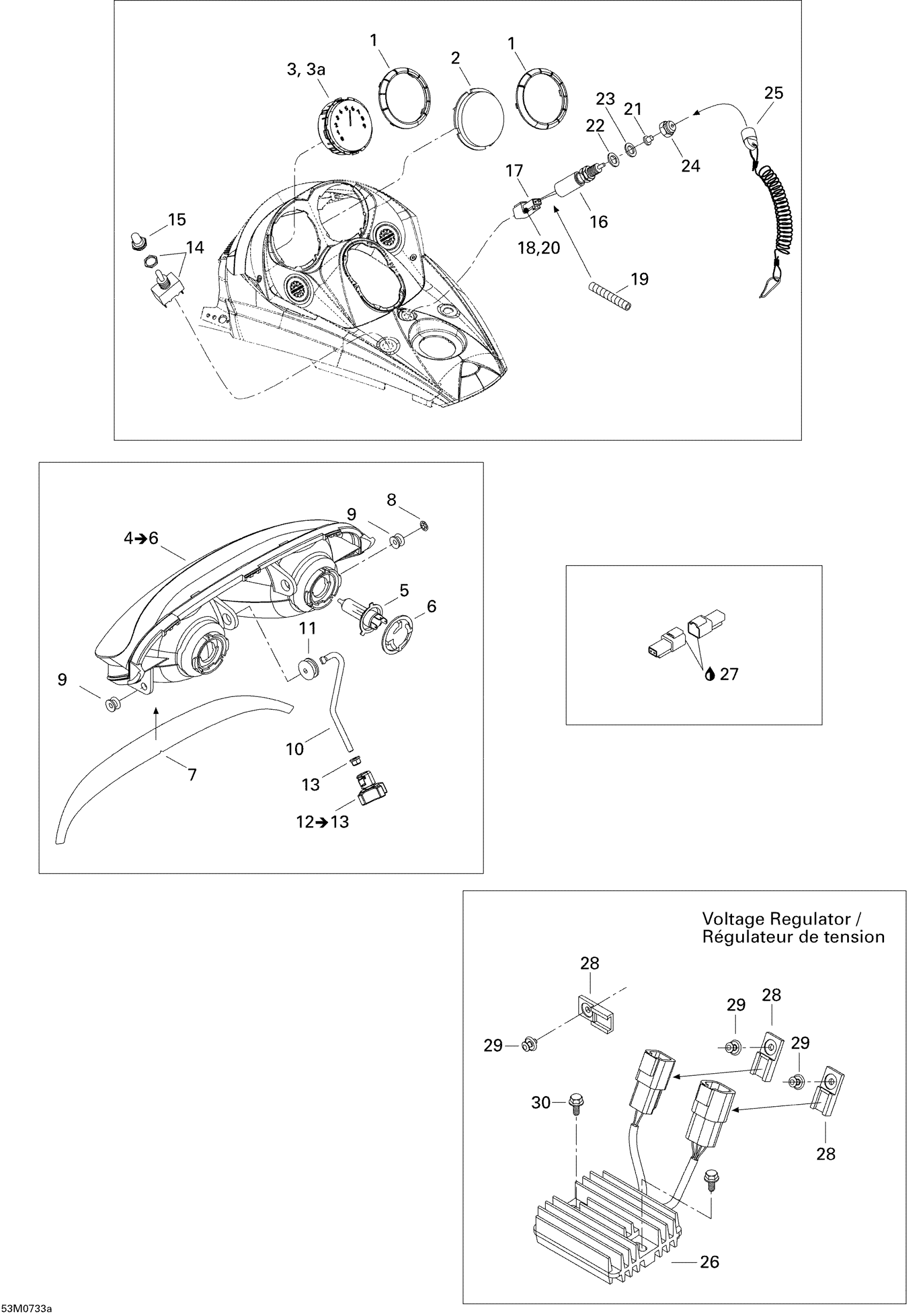

Ski-Doo MX Z 440X Racing, 2007 Electrical Accessories 1 Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

$13.99

2

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

3

TACHOMETER/SPEEDO GAUGE - Call your local BRP dealership | Includes 3 to 3a

515176479

Unavailable

3a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

$2.19

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Switch (Heating Grip) | FREERIDE

410107300

$35.99

15

Switch Cover

515175281

$15.99

16

Brake Switch

515175653

$19.49

17

Male Terminal Housing, 2 Circuits

515175665

$9.29

18

Male Lock, 2 Circuits

409207500

$3.19

19

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

20

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

21

Plunger Cap

570151100

$9.85

22

Washer

250200032

$5.08

23

WASHER - Call your local BRP dealership

510004418

Unavailable

24

Switch Nut

415073500

Unavailable

25

Cap Ass'Y This part replaces 515176462.

515178292

$38.99

26

Voltage Regulator

515175968

$238.49

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

Clip

270000141

$11.49

29

Avdel Rivet 3/16"

293150037

$0.56

30

Hexagonal Head Screw

210262050

$2.11
