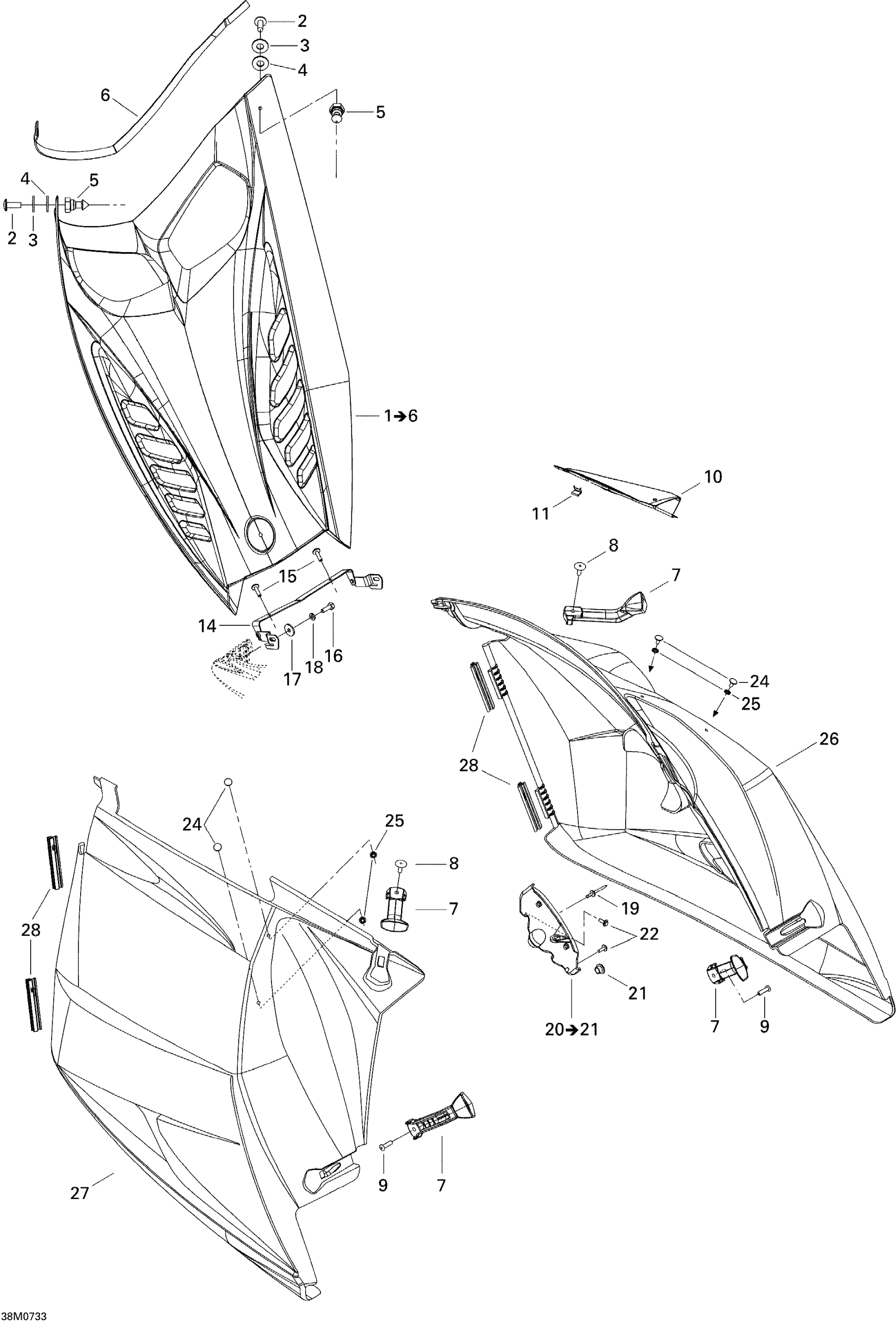

Ski-Doo MX Z 440X Racing, 2007 Hood Diagram

#

Description
Price

1

Hood | Includes 1 to 6

517303761

Unavailable

2

Torx Screw M5 X 14

250000742

$1.20

3

Washer M5

250200025

$0.61

4

Rubber Washer 5 mm

250200024

$1.77

5

Knob

517303729

Unavailable

6

Gasket, Neoprene 2000Mm Long

219704476

$12.64

7

Panel Latch

517302448

$14.24

8

Pop Rivet 3/16”

293150087

$0.92

9

Pop Rivet 3/16”

390410100

$0.54

10

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

11

CLIP - Call your local BRP dealership

517302789

Unavailable

14

HINGE - Call your local BRP dealership

517303679

Unavailable

15

Pop Rivet 3/16"

293150103

$0.54

16

Hex. Screw M6 X 18

207161844

$0.62

17

Flat Washer

224061121

$0.44

18

Lock Washer M6, Black

234161471

$0.52

19

Rivet 3/16"

293150102

$0.71

20

RH Console | Includes 20 to 21

517303512

Unavailable

21

Black, Cap

275500241

$2.76

22

Pop Rivet 3/16"

293150103

$0.54

24

Windshield Dart

517303070

$0.86

25

Push Nut

250100034

$1.11

26

2000 Yellow, RH Panel

517303182

Unavailable

27

LH PANEL, YELLOW B-190 - Call your local BRP dealership

517302805

Unavailable

28

Hinge Lock

517302823

$12.00
