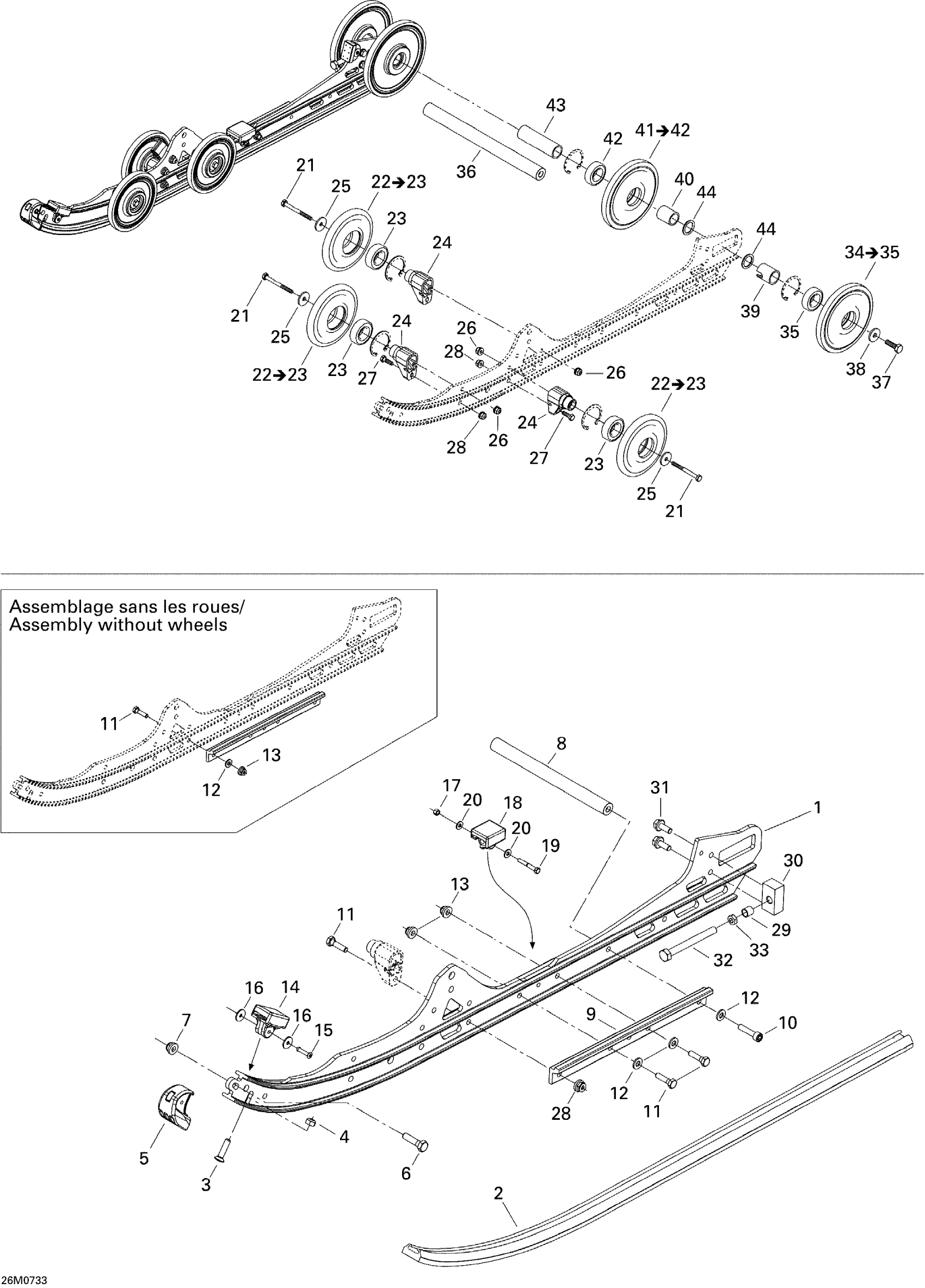

Ski-Doo MX Z 440X Racing, 2007 Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION - Call your local BRP dealership

503191256

Unavailable

2

Slider Shoe

503190629

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Axle

503151600

$15.35

9

RAIL REINFORCEMENT - Call your local BRP dealership

503190647

Unavailable

10

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

11

Hex. Screw M8 X 35

207083544

$0.92

12

Washer

503189157

$3.20

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Rubber Stopper

503190576

$10.23

15

Pop Rivet 3/16"

293150142

$2.11

16

Washer

503191273

$1.06

17

Elastic Stop Nut M5

232551414

$0.72

18

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

19

Hex. Screw M5 X 35

207053544

$1.09

20

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

21

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

22

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

23

Ball Bearing | Package-STD

503190396

$7.12

24

Support

503190580

Unavailable

25

Washer

211200041

$2.63

26

Hex. Flange Elastic Nut M8

233281414

$1.14

27

Hex. Screw M8 X 25

207182544

$0.74

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

30

Tensioner

503190827

Unavailable

31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

32

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

33

Hex. Nut M10 X 1.5

232006414

$1.11

34

Wheel 180 | Includes 600 to 600a

503191491

$49.97

35

Ball Bearing

293350115

$11.15

36

Rear Axle

503167900

$129.20

37

Hex. Screw With Nylon

250000019

$1.42

38

Washer

503183300

$5.68

39

Outer Spacer

503189809

$15.35

40

Inner Spacer

503182900

$10.18

41

Wheel 180 | Includes 600 to 600a

503191491

$49.97

42

Ball Bearing

293350115

$11.15

43

Center Spacer

503156000

$8.92

44

Washer

503180400

$3.37
