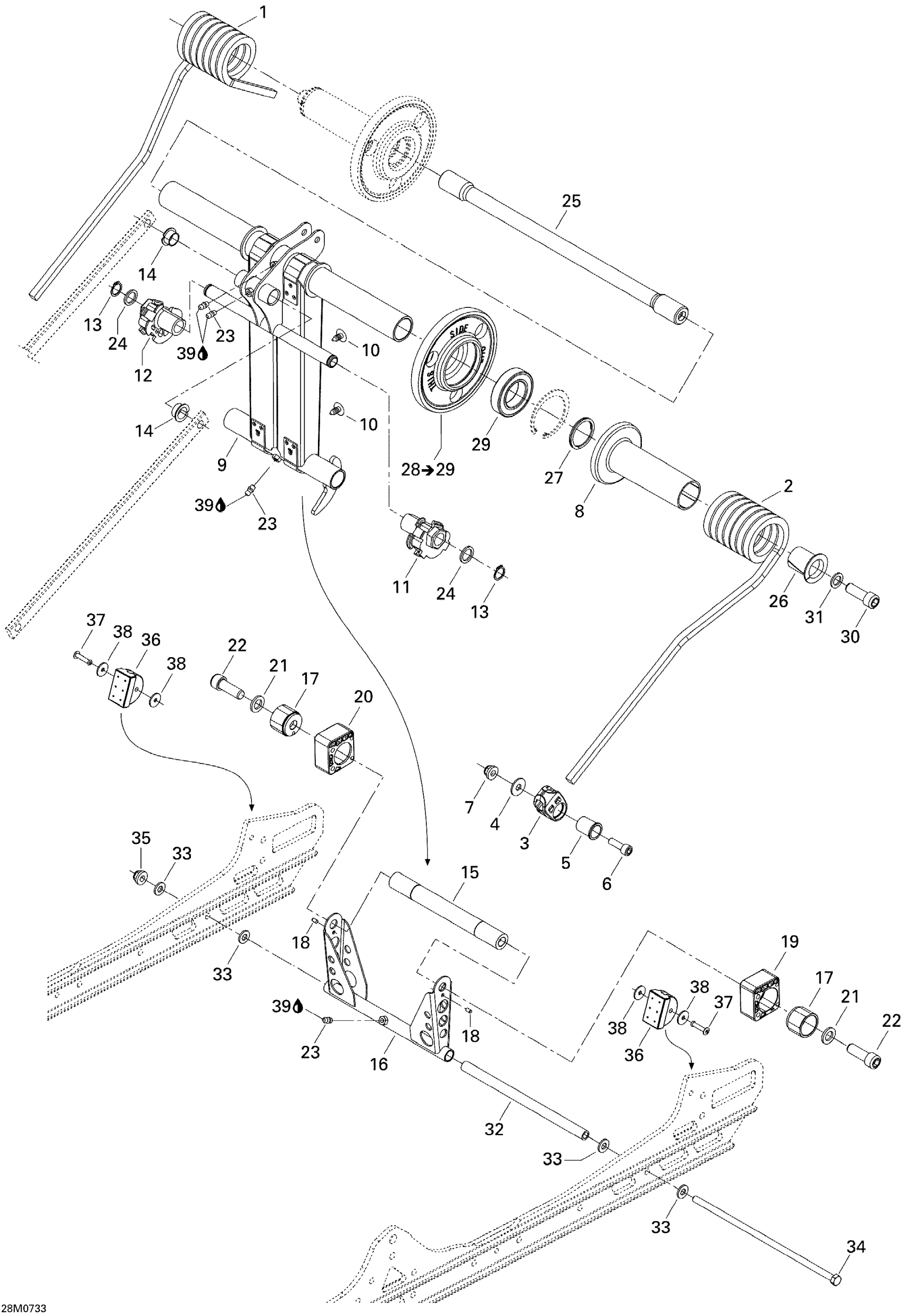

Ski-Doo MX Z 440X Racing, 2007 08- Rear Arm Diagram

#

Description
Price

1

RH Spring

503191492

Unavailable

2

LH Spring

503191493

Unavailable

3

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Spring Support Kit

861805547

$10.49

6

Socket Head Screw M8 X 25

205082544

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

PLASTIC BUSHING - Call your local BRP dealership

503190584

Unavailable

9

Rear Arm

503190645

Unavailable

10

Black, Dart

414644300

$0.98

11

LH SPRING CAM - Call your local BRP dealership

503190585

Unavailable

12

RH SPRING CAM - Call your local BRP dealership

503190586

Unavailable

13

CIRCLIP - Call your local BRP dealership

293370043

Unavailable

14

Swivel Bushing

503191555

$7.83

15

LOWER SHAFT - Call your local BRP dealership

503190725

Unavailable

16

Pivot Arm

503191302

$124.99

17

Block Guide

503189488

$39.99

18

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

19

RH Block, 4 Positions

503190622

Unavailable

20

LH Block, 4 Positions

503191563

Unavailable

21

Washer | 7415/7416. 7417/7418.

503189148

$2.85

22

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

23

Grease Fitting

408200700

$3.49

24

WASHER - Call your local BRP dealership

503183400

Unavailable

25

UPPER SHAFT - Call your local BRP dealership

503190618

Unavailable

26

CUSHION - Call your local BRP dealership

503190619

$4.49

27

AXLE SPRING - Call your local BRP dealership

503190690

Unavailable

28

WHEEL 141 - Call your local BRP dealership | Includes 28 to 29

503190620

Unavailable

29

Ball Bearing

503190621

Unavailable

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

31

Washer

503189276

$3.28

32

Pivot Arm Axle

503189156

$21.99

33

Washer

503189157

$3.28

34

Bolt M8 X 248mm

503192440

$30.49

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Rubber Stopper

503191291

$19.99

37

Pop Rivet 3/16"

293150142

$2.29

38

Washer

503191273

$1.35

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
