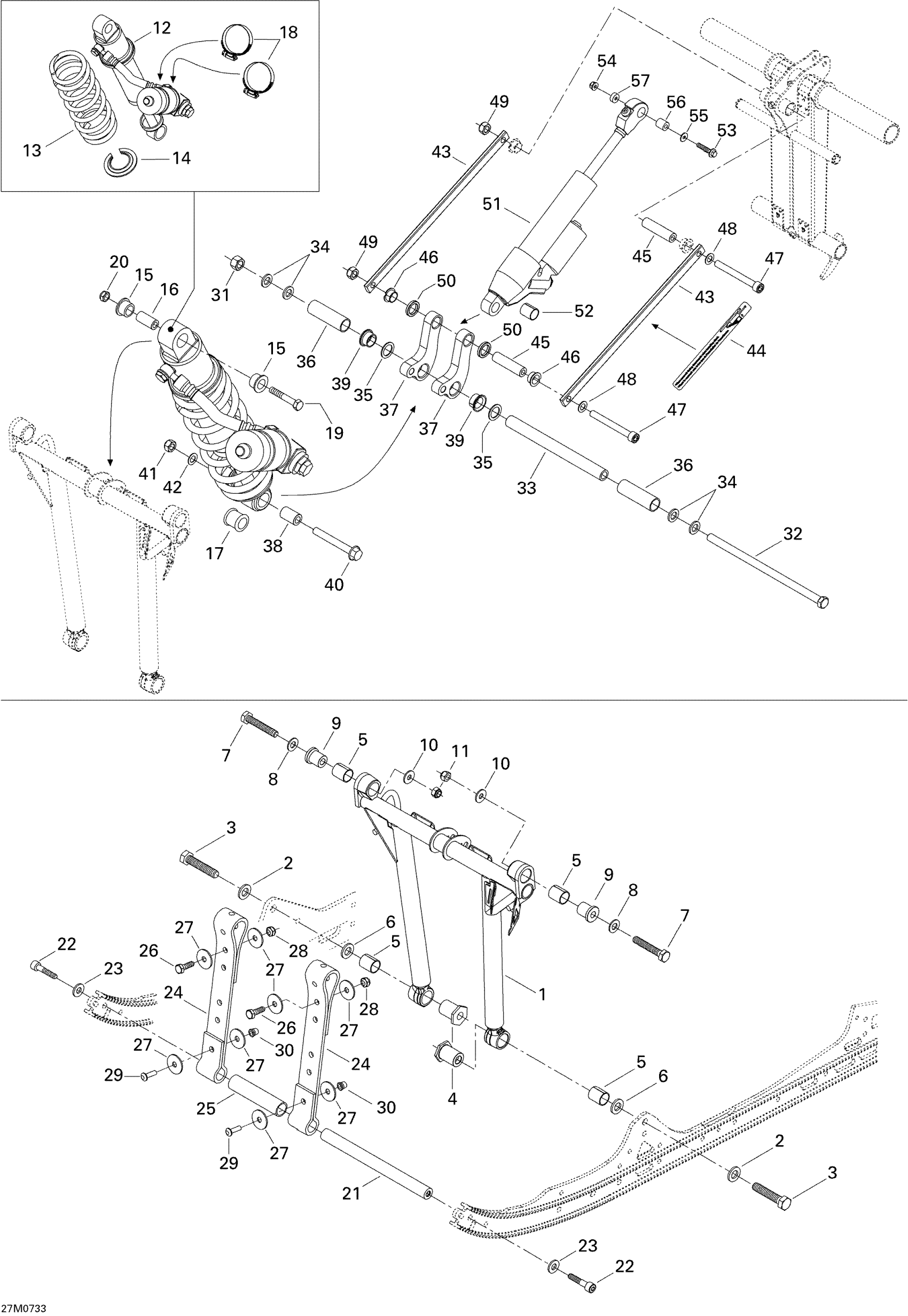

Ski-Doo MX Z 440X Racing, 2007 08- Front Arm Diagram

#

Description
Price

1

FRONT ARM - Call your local BRP dealership

503191536

Unavailable

2

Washer | 7415/7416. 7417/7418.

503189148

$2.85

3

Hex. Cap Screw M12 X 35

250000537

$3.17

4

Lower Axle

503191966

$15.89

5

Bushing

503190974

$12.49

6

Washer

503190656

$2.96

7

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

8

Flat Washer M10 | 4X4

250200014

$1.49

9

Axle

503190698

$20.99

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Center Shock

503190582

Unavailable

13

Spring

503191019

Unavailable

14

Spring Stopper

503190271

$22.49

15

Urethane Bushing

503189117

$8.19

16

Bushing | Includes 240d to 240d1

503189282

$4.34

17

Bushing

503189271

$13.99

18

Tridon Clamp

293650035

$7.29

19

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

20

Elastic Stop Nut M10

232500416

$1.90

21

Axle Strap

503191260

$30.99

22

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

23

Washer

503189564

$0.74

24

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

25

Spacer

503189265

$4.99

26

Hex. Flange Screw M8 X 25

207682544

$1.35

27

Flat Washer

224081301

$0.88

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Hex. Nut M12

232021416

$4.65

32

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

33

PIVOT SHAFT - Call your local BRP dealership

503191047

Unavailable

34

Washer | 7415/7416. 7417/7418.

503189148

$2.85

35

WASHER - Call your local BRP dealership

503190697

Unavailable

36

SPACER - Call your local BRP dealership

503190600

Unavailable

37

ROCKER ARM - Call your local BRP dealership

503190601

Unavailable

38

Central Shock Axle

503190604

$14.15

39

CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership

503190605

Unavailable

40

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

41

Elastic Stop Nut M10

232500416

$1.90

42

Washer

503175800

$3.28

43

Tie Rod

503190644

Unavailable

44

Shock Position Decal

516005609

$19.99

45

Bar Axle

503191192

$41.49

46

Swivel Bushing

503191555

$7.83

47

Socket Screw M10 X 90

205009044

$8.01

48

Washer

503175800

$3.28

49

Elastic Stop Nut M10

232500416

$1.90

50

Plastic Spacer

503190694

$2.11

51

Rear Shock

503190581

Unavailable

52

BUSHING - Call your local BRP dealership

503190706

Unavailable

53

Hex. Screw M8 X 55

207085586

$7.41

54

Hex. Elastic Flange Nut M8

233281416

$1.48

55

Washer

503189157

$3.28

56

Bushing

414936000

$13.99

57

Spacer

503190526

$10.49
