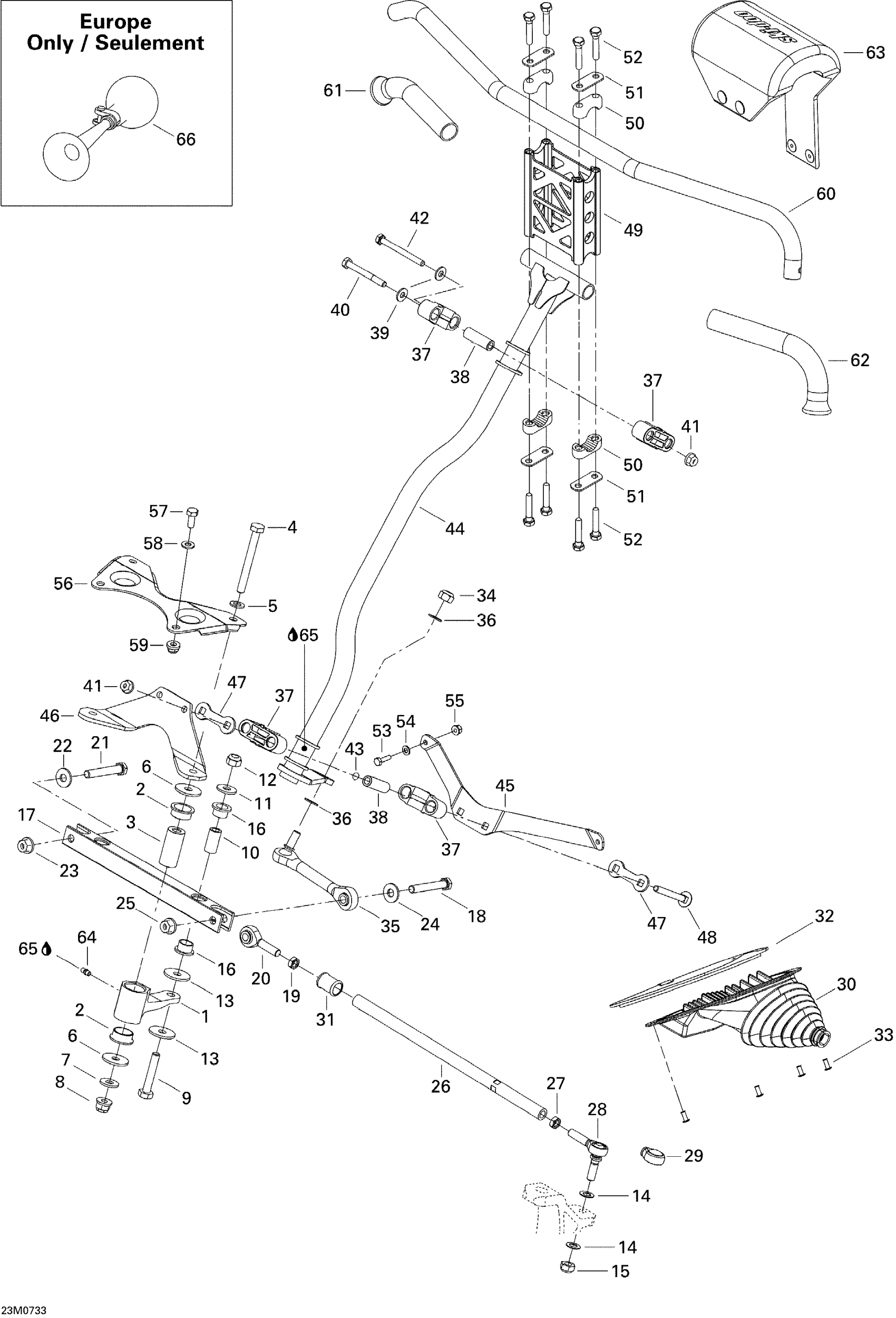

Ski-Doo MX Z 440X Racing, 2007 07- Steering System Diagram

#

Description
Price

1

RH SWIVEL ARM - Call your local BRP dealership

506152124

Unavailable

1

LH SWIVEL ARM - Call your local BRP dealership

506152123

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

250200032

$5.08

14

Washer

503175800

$3.28

15

Hex. Flange Elastic Nut M10

250100165

$0.85

16

Swivel Bushing

503191555

$7.83

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

LH Ball Joint

506151810

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.69

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.58

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$43.99

31

BUSHING - Call your local BRP dealership

572036500

Unavailable

32

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

30

LH Tie-Rod Cap

506151726

$43.99

32

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

33

Avex Rivet

390909100

$0.30

34

Hex. Flange Elastic Nut M10

250100165

$0.85

35

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

36

Washer

503175800

$3.28

37

Housing Half

506150400

$7.62

38

Housing Bushing

506150500

$7.99

39

Washer

503189157

$3.28

40

Hex. Screw M8 X 70

207087044

$2.19

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Hex. Screw M8 X 80

207088044

$1.68

43

O-RING - Call your local BRP dealership

506151140

Unavailable

44

MAIN TUBE - Call your local BRP dealership

506152161

Unavailable

45

REAR SUPPORT - Call your local BRP dealership

506151854

Unavailable

46

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

47

Stopper Plate

506150600

$4.39

48

Carriage Bolt M8 X 70

207787044

$1.37

49

Handle Bar Extension | X

506152457

Unavailable

50

Steering Support

709400919

$22.49

51

Stiffner

709400509

$4.69

52

Hex. Screw With Nylon M8 X 40

250000074

$1.90

53

Hex. Forming Screw M6 X 20

207162060

$1.29

54

Flat Washer 6 mm

234061410

$1.36

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

57

Hex. Screw M8 X 25

207182544

$0.90

58

Flat Washer 8 mm

234081410

$0.83

59

Hex. Flange Elastic Nut M8

233281414

$1.47

60

HANDLEBAR - Call your local BRP dealership

506151820

Unavailable

61

RH Grip 6-1/2"

506151530

$16.49

62

LH GRIP 8-3/4 - Call your local BRP dealership

506151541

Unavailable

63

STEERING PAD - Call your local BRP dealership

506152522

$53.99

64

Grease Fitting

408200700

$3.49

65

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

66

Horn

549011291

$35.99
