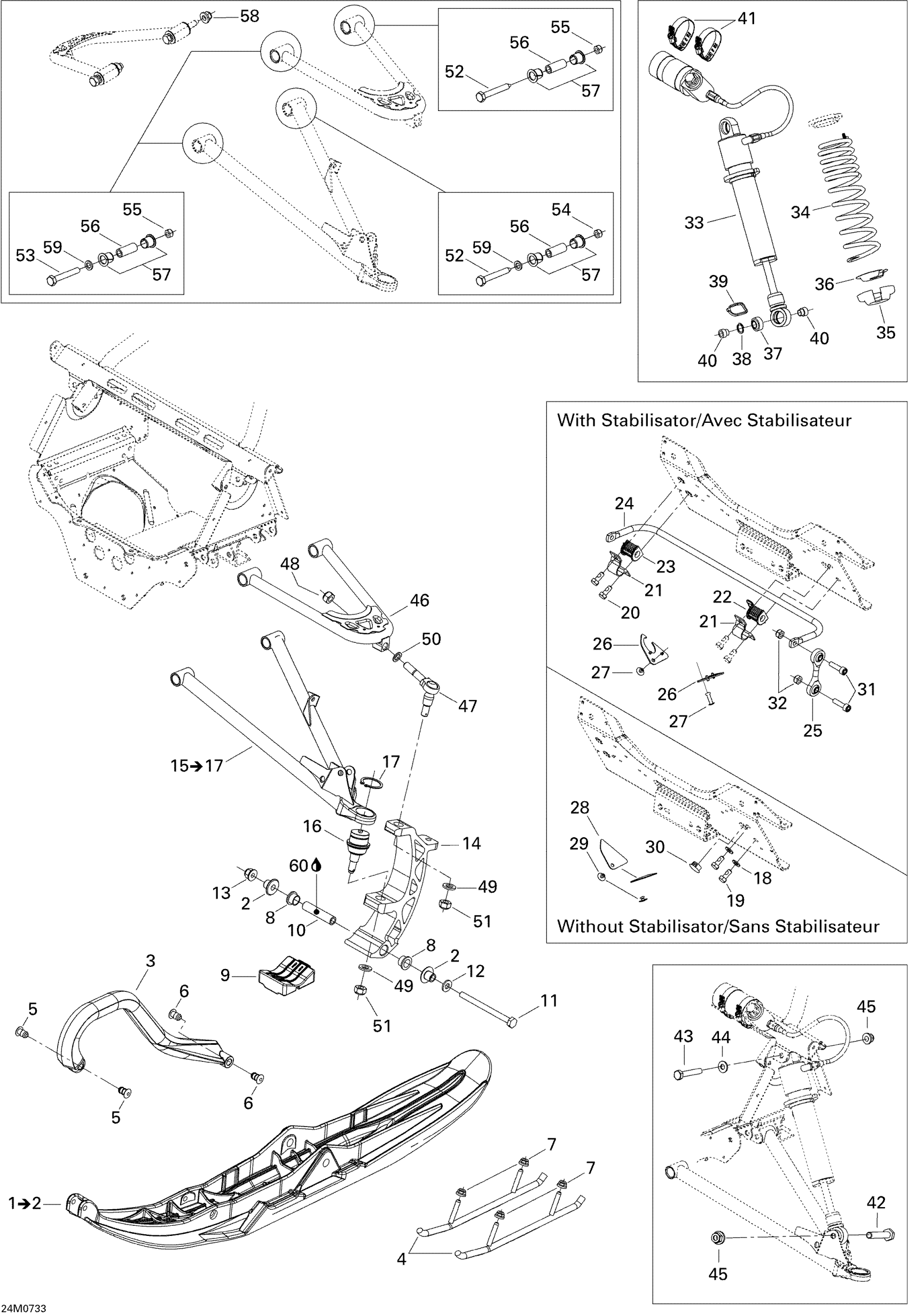

Ski-Doo MX Z 440X Racing, 2007 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski 5.7X

505072205

$153.49

2

Ski Bushing

505071781

$16.18

3

HANDLE_SKI - Call your local BRP dealership

505071674

Unavailable

4

Round Carbide Runner

860201043

$109.99

5

Retainer 17mm long

505071812

$5.95

6

Retainer 23mm Long

505072133

$6.78

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Leg Bushing

505072690

$12.49

9

Ski Stopper

505071779

$18.78

10

BUSHING - Call your local BRP dealership

505071271

Unavailable

11

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

12

Washer

732900049

$0.58

13

Flange Nut M10

732610084

$6.79

14

RH SKI LEG - Call your local BRP dealership

505071395

Unavailable

14

LH SKI LEG - Call your local BRP dealership

505071396

Unavailable

15

RH LOWER ARM - Call your local BRP dealership | Includes 15 to 17

860512700

Unavailable

15

LH Lower Arm | Includes 15 to 17

860512600

Unavailable

16

Ball Joint

505073636

$51.99

17

Circlip

293370035

$2.64

18

Flat Washer 8 mm

234081410

$0.83

19

Hex. Screw With Nylon

250000118

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

23

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

24

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

25

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

26

PLUG - Call your local BRP dealership

505071253

Unavailable

27

Pop Rivet 3/16"

293150103

$0.55

28

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

29

Pop Rivet 3/16"

293150103

$0.55

30

CAP - Call your local BRP dealership

572072100

Unavailable

31

Socket Head Screw M8 X 30

205083044

$1.15

32

Hex. Elastic Stop Nut M8

232581414

$0.56

33

RH Front Shock

505070952

Unavailable

33

LH FRONT SHOCK - Call your local BRP dealership

505070953

Unavailable

34

SPRING - Call your local BRP dealership

505071677

Unavailable

35

Spring Stopper

505072635

$35.99

36

Cap

505071199

Unavailable

37

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

38

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

39

Tie-Rap 180 mm

414115200

$0.11

40

BUSHING - Call your local BRP dealership

506120200

Unavailable

41

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

42

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

43

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

44

Washer

503189564

$0.74

45

Hex. Flange Elastic Nut M10

233201414

$1.58

46

RH UPPER ARM - Call your local BRP dealership

505071958

Unavailable

46

LH Upper Arm

505071959

Unavailable

47

Upper Ball Joint

505072049

Unavailable

48

Hex. Elastic Hex. Nut M12

250100089

$0.46

49

Flat Washer 12 mm

234021410

$0.72

50

Washer

503189276

$3.28

51

Hex. Elastic Hex. Nut M12

250100089

$0.46

52

Hex. Screw M10 X 75

250001063

$13.16

53

Hex. Screw M10 X 75

250001063

$13.16

54

Hex. Flange Elastic Nut M10

250100165

$0.85

55

Hex. Flange Elastic Nut M10

250100165

$0.85

56

Aluminium Bushing

505070960

$14.15

57

Arm Bushing

505071397

Unavailable

58

Elastic Flange Nut M10

232501416

$1.48

59

Washer

503189564

$0.74

60

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
