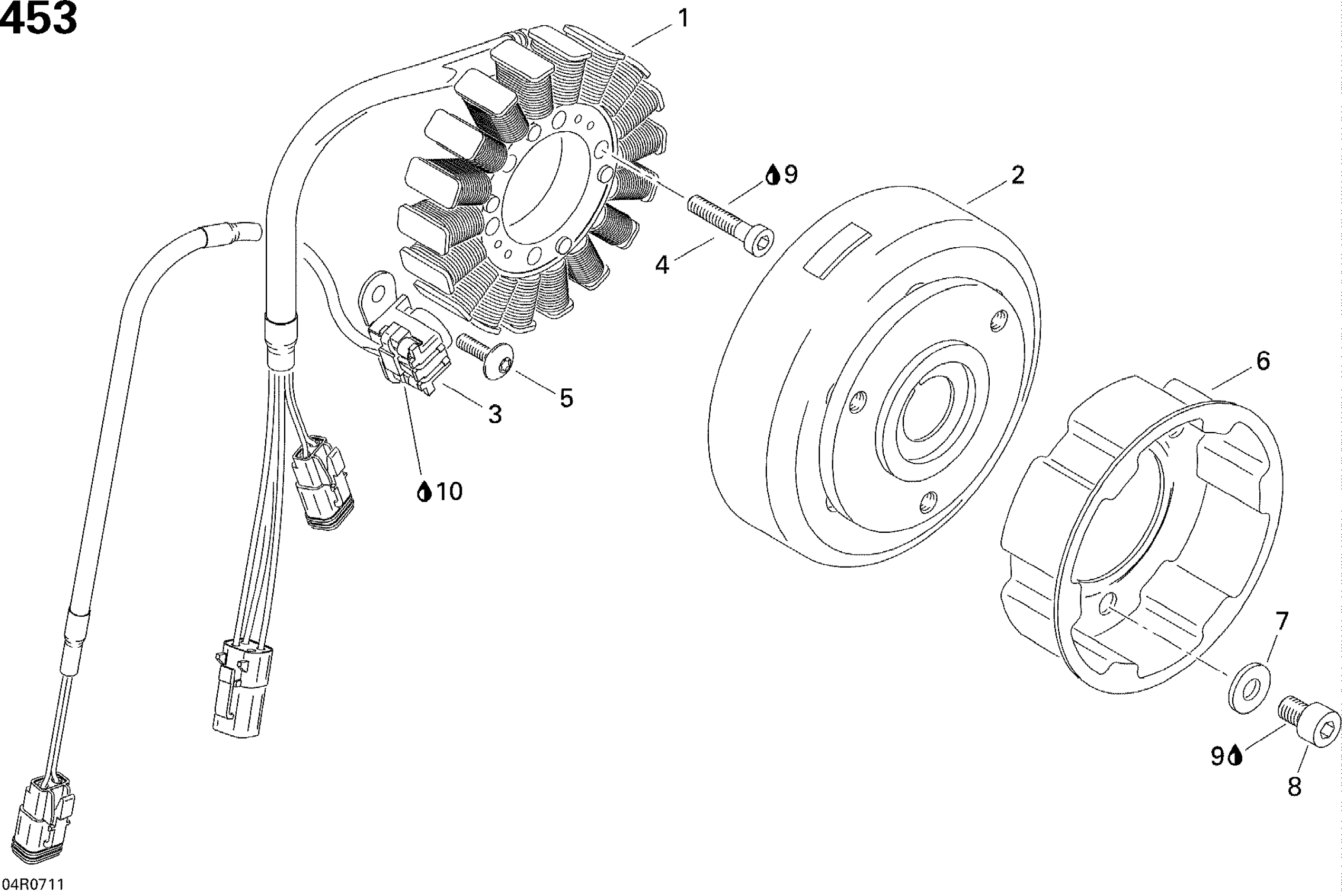

Ski-Doo MX Z 440X Racing, 2007 Magneto Diagram

#

Description

Price

1

Stator Plate A

420889905

$319.49

2

FLYWHEEL - Call your local BRP dealership

410922953

Unavailable

3

Pick-Up Ass'y

410922969

$103.05

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Torx Screw M6 X 16

420640324

$2.06

6

Starting Pulley

420852590

$28.43

7

Flat Washer

420827405

$1.66

8

Socket Head Screw M8 X 12

420841520

$1.68

9

Loctite 243, 10 ml

293800060

$20.77

10

Not Available As Spare Part - Friction Washer

Unavailable
