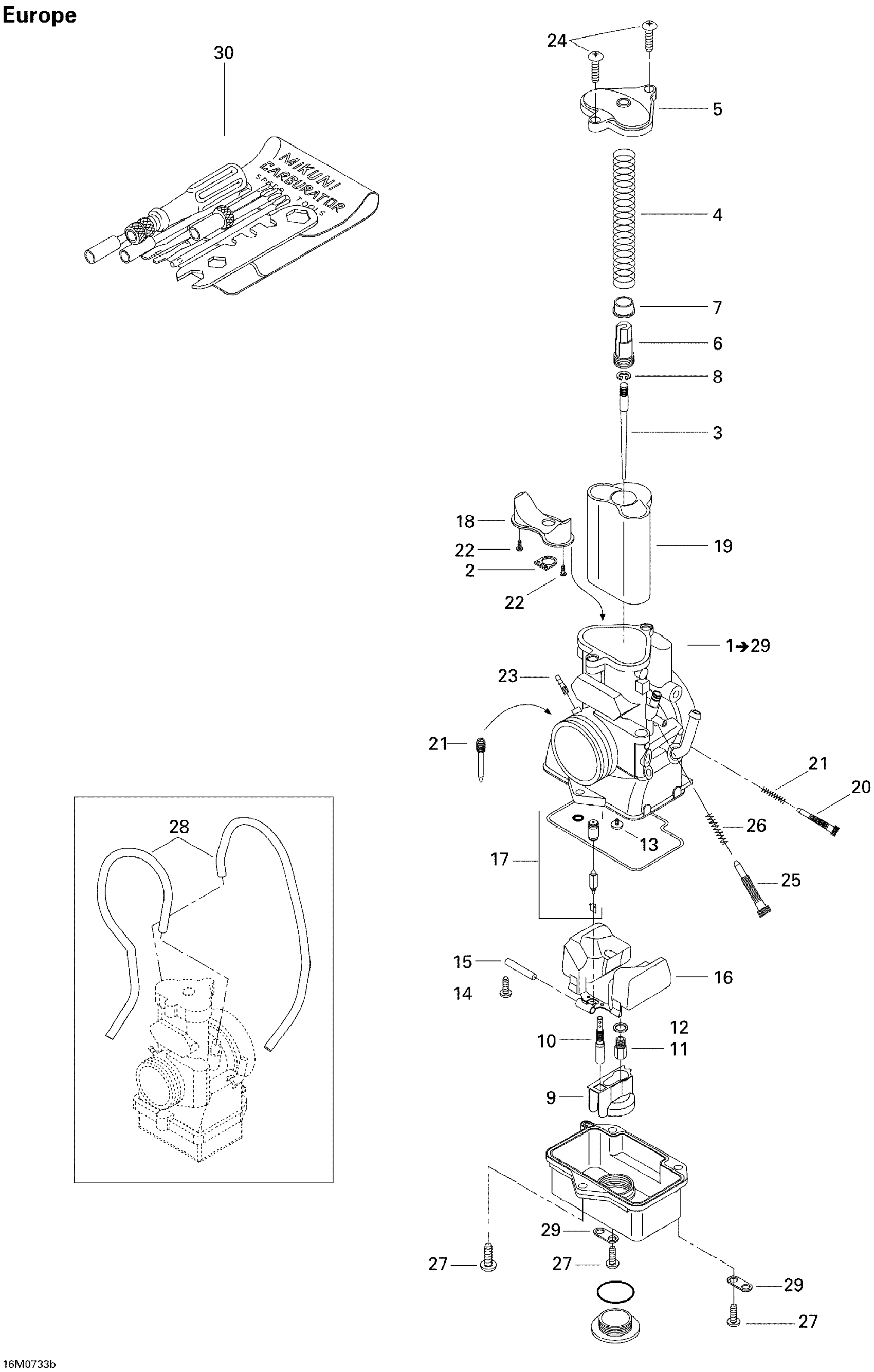

Ski-Doo MX Z 440X Racing, 2007 02- Carburetor Europe Diagram
#
Description
Price
1
Carburator TMX34-38 | Europe
403138799
Unavailable
3
NEEDLE JET - Call your local BRP dealership
404162066
Unavailable
4
SPRING - Call your local BRP dealership
404161864
Unavailable
5
TOP CAP - Call your local BRP dealership
404161857
Unavailable
6
GUIDE HOLDER - Call your local BRP dealership
404161856
Unavailable
7
RING - Call your local BRP dealership
404161863
Unavailable
9
HOLDER - Call your local BRP dealership
404161855
Unavailable
10
PILOT JET 25 - Call your local BRP dealership
404161870
Unavailable
12
WASHER - Call your local BRP dealership
404161862
Unavailable
14
SCREW - Call your local BRP dealership
404138600
Unavailable
15
PIN - Call your local BRP dealership
404161860
Unavailable
16
FLOAT - Call your local BRP dealership
404161859
Unavailable
18
VENTURI - Call your local BRP dealership
404161974
Unavailable
19
PISTON VALVE 4.0 - Call your local BRP dealership
404161867
Unavailable
20
ADJUSTER - Call your local BRP dealership
404161866
Unavailable
21
SPRING - Call your local BRP dealership
404132400
Unavailable
22
SCREW - Call your local BRP dealership
404161852
Unavailable
26
SPRING - Call your local BRP dealership
404161849
Unavailable
28
AIR VENT TUBE - Call your local BRP dealership
404161851
Unavailable
29
PLATE - Call your local BRP dealership
404103000
Unavailable
30
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
