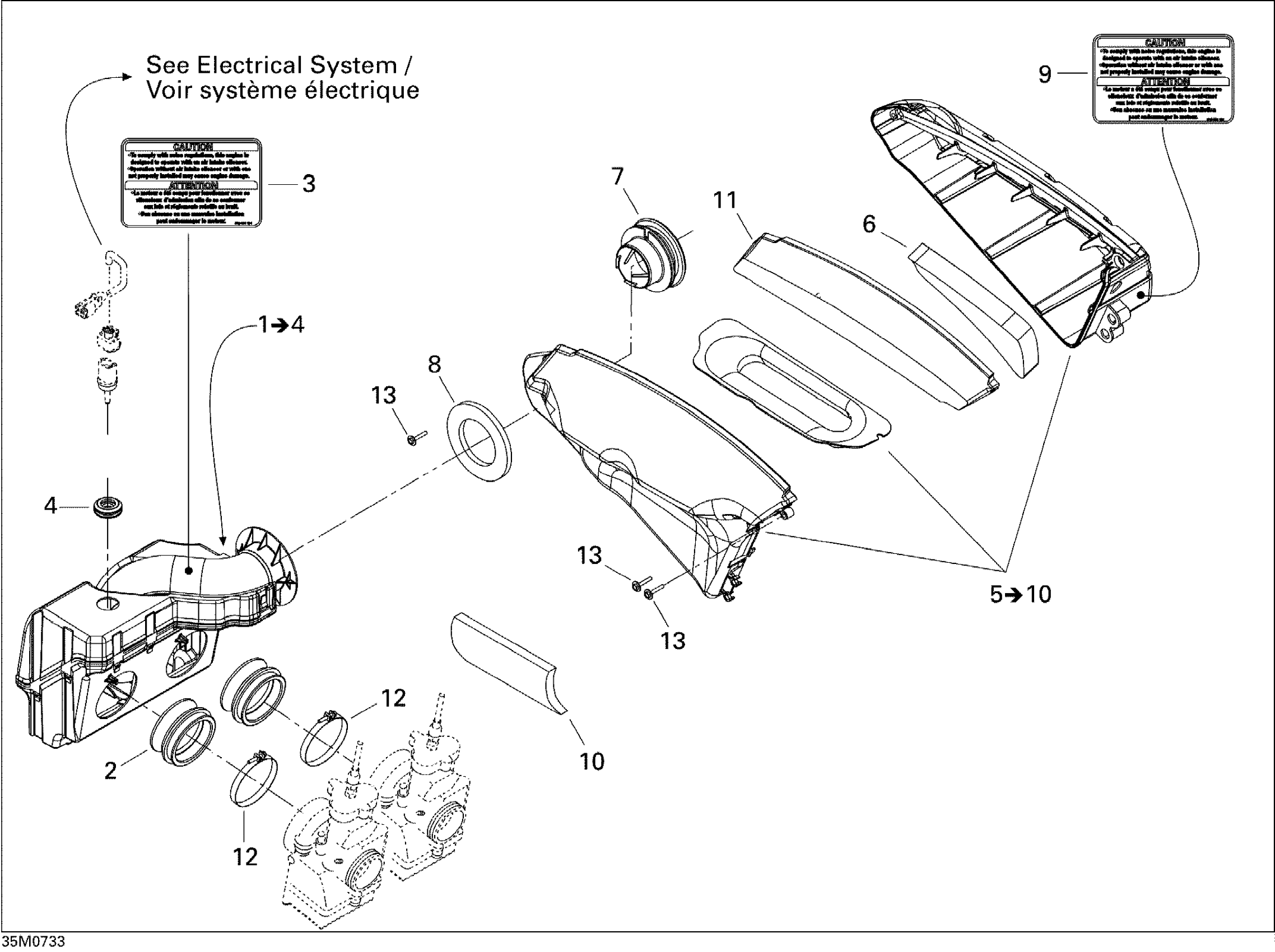

Ski-Doo MX Z 440X Racing, 2007 Air Intake System Diagram

#

Description
Price

1

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 1 to 4

508000505

Unavailable

2

Air Intake Adaptor

508000306

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

SECONDARY CHAMBER ASSY - Call your local BRP dealership | Includes 5 to 10

508000502

Unavailable

6

Inner Foam

508000145

Unavailable

7

GUIDE - Call your local BRP dealership

508000240

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

9

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

10

FOAM - Call your local BRP dealership

508000326

Unavailable

11

Air Filter

508000394

$51.99

12

Gemi Clamp

508000369

$13.16

13

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
