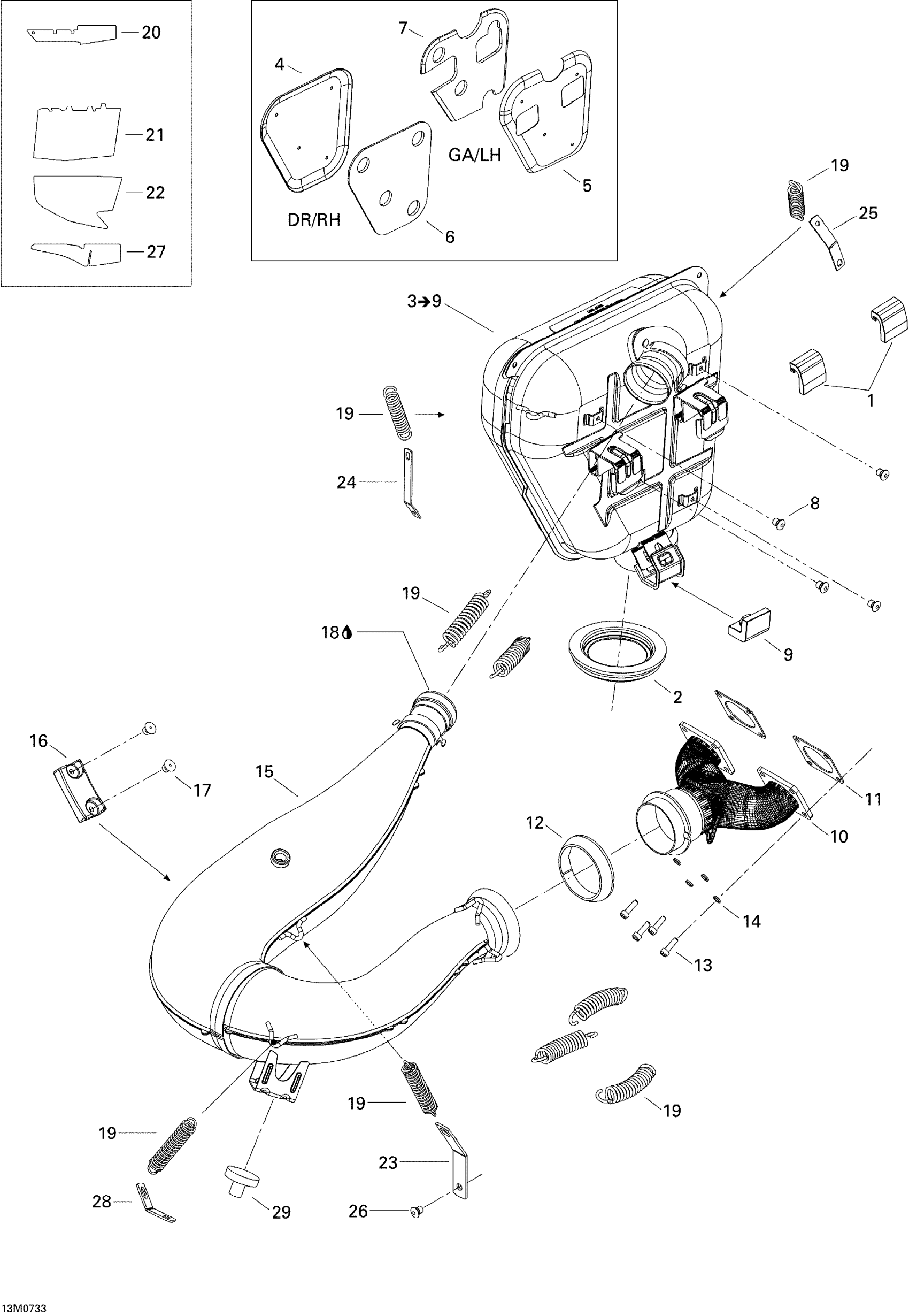

Ski-Doo MX Z 440X Racing, 2007 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

EXHAUST GROMMET - Call your local BRP dealership

514054240

Unavailable

3

Muffler Ass'y

514054206

Unavailable

4

RH HEAT SHIELD - Call your local BRP dealership

514053139

Unavailable

5

LH Heat Shield

514053883

Unavailable

6

RH INSULATING WOOL - Call your local BRP dealership

514053141

Unavailable

7

LH INSULATING WOOL - Call your local BRP dealership

514053884

Unavailable

8

Pop Rivet 3/16”

390910000

$0.57

9

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

10

MANIFOLD - Call your local BRP dealership

420973557

Unavailable

11

Gasket

420850552

$8.85

12

Exhaust Gasket

514053487

$26.49

13

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

14

Washer

514053953

$0.77

15

CALIBRATED TUBE - Call your local BRP dealership

514054324

Unavailable

16

BUMPER - Call your local BRP dealership

514053352

Unavailable

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

19

Spring

415107100

$6.35

20

REFLECTION SHEET - Call your local BRP dealership

514053702

Unavailable

21

REFLECTIVE SHEET - Call your local BRP dealership

514054350

Unavailable

22

REFLECTIVE SHEET - Call your local BRP dealership

514053562

Unavailable

23

SPRING BRACKET - Call your local BRP dealership

514049700

Unavailable

24

Spring Bracket

514053393

$14.16

25

Spring Bracket

514053436

$11.47

26

Avex Rivet

390909200

$0.30

27

REFLECTIVE SHEET - Call your local BRP dealership

514053673

Unavailable

28

Spring Bracket

514054522

$8.45

29

Rubber Bumper

514053654

$50.99
