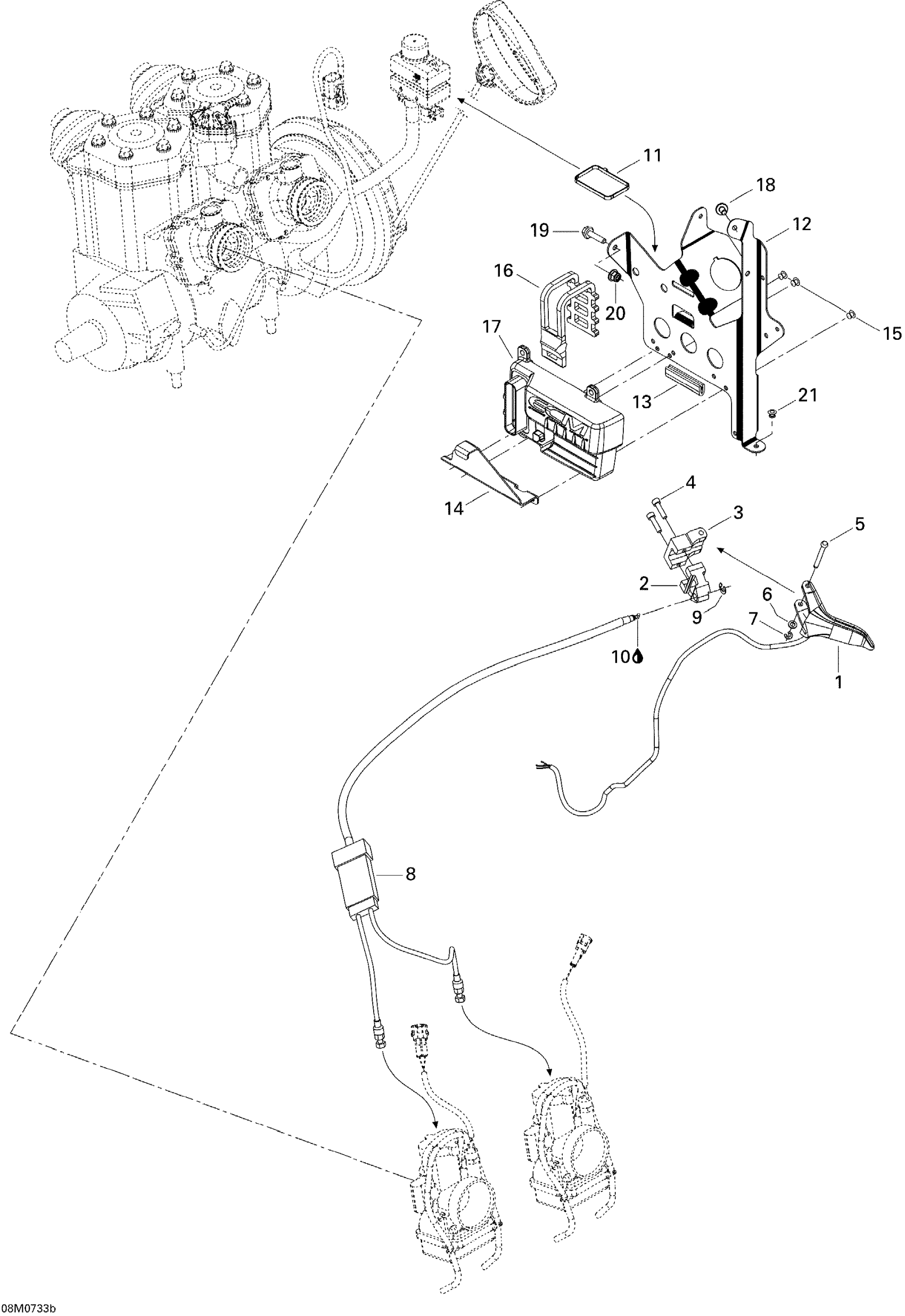

Ski-Doo MX Z 440X Racing, 2007 01- Engine 2 Diagram

#

Description
Price

1

Handle Ass'y

512060214

$124.99

2

Lower Housing

512059537

$74.99

3

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

4

Socket Screw M5 X 25

205052544

$1.68

5

Lever Pin

414438700

$11.64

6

Flat Washer M5, Stainless

234051600

$0.77

7

Circlip

293370050

$0.46

8

THROTTLE CABLE - Call your local BRP dealership

512059742

Unavailable

9

Circlip

414274500

$0.90

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Tie Wrap 368 mm

293750008

$1.04

12

ECM Support

512060141

Unavailable

13

Was 271000110 Protection Trim

219704353

$15.99

14

Plate

518324951

Unavailable

15

Pop Rivet 3/16"

390402400

$0.35

16

LATCH - Call your local BRP dealership

570069700

Unavailable

17

Calibrated Module

512060235

Unavailable

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

19

Hex. Flange Screw M6 X 25

207662544

$0.64

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Pop Rivet 3/16"

390402400

$0.35
