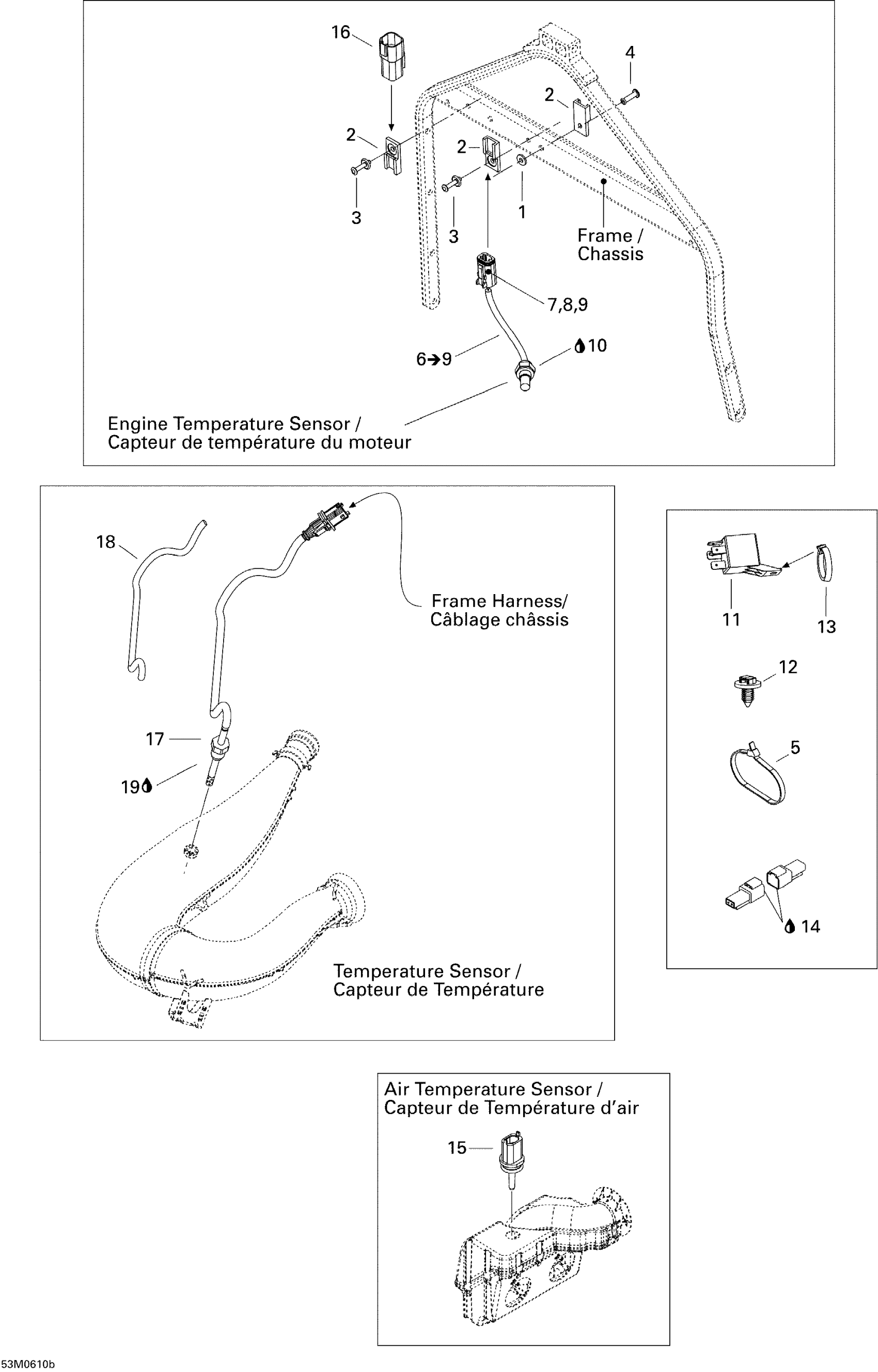

Ski-Doo MX Z 440 Racing, 2006 Electrical Accessories 2 Diagram

#

Description
Price

1

Flat Washer

517225900

$0.16

2

Clip

270000141

$9.57

3

Avdel Rivet 3/16"

293150037

$0.54

4

Pop Rivet 3/16”

390410100

$0.52

5

Tie Wrap 368 mm

293750008

$0.97

6

Temperature Sensor This part replaces 515176043.

515177835

$91.76

7

Male Connector, 4 Circuits | CE

278000739

$17.13

8

Female Terminal

278000632

$1.94

9

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

10

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

11

Relay | DS 650 X

710010053

Unavailable

12

Mount Dart

293730040

$0.99

13

Tie-Rap 180 mm

414115200

$0.10

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

15

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

16

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

17

Temperature Sensor

515176132

Unavailable

18

Tubing 6 Mm 3000Mm Long

219704425

$12.75

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
