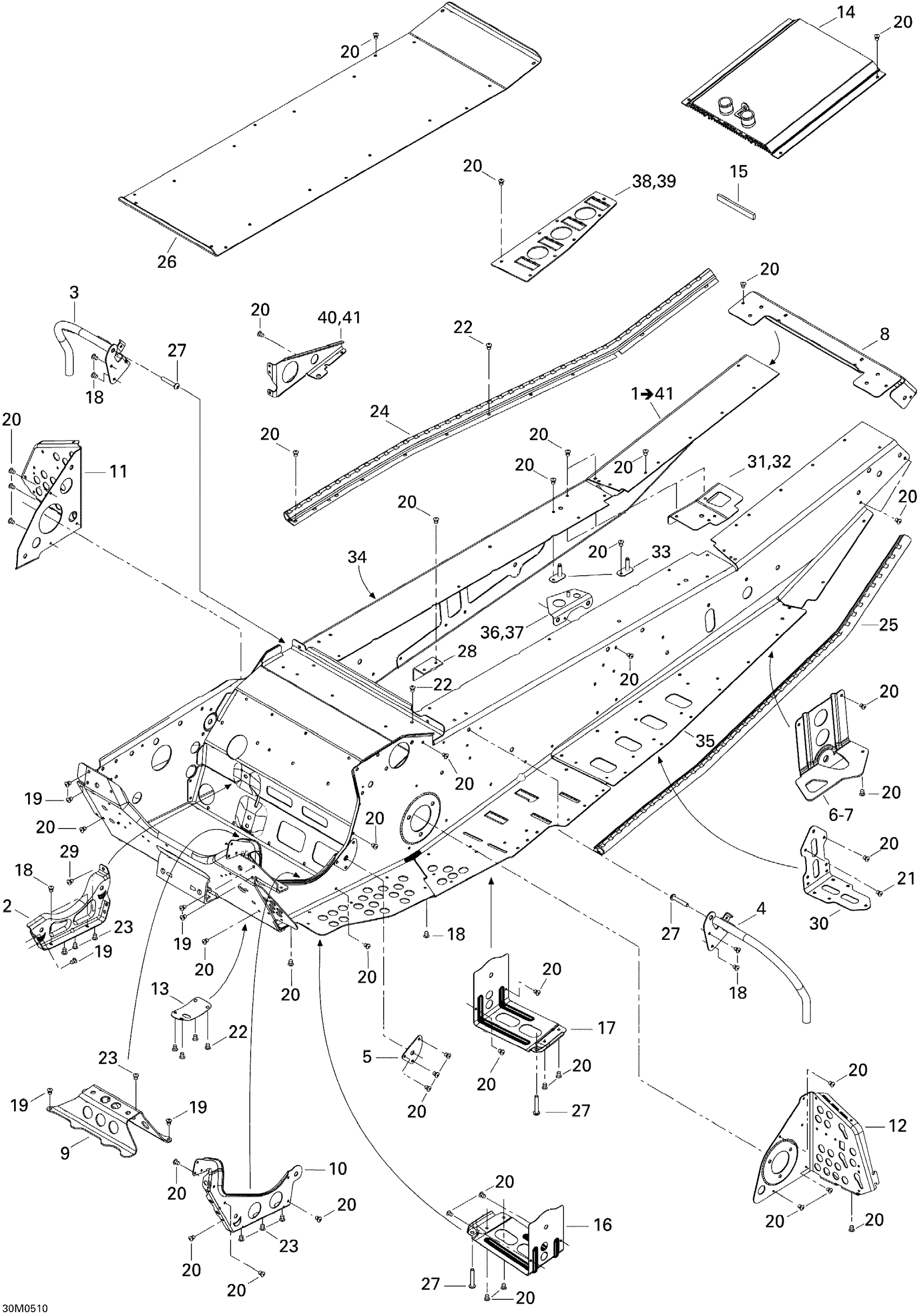

Ski-Doo MX Z 440 Racing, 2006 09- Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 41

415129150

Unavailable

2

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

3

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

4

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

5

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

6

RH SUSPENSION BRACKET, BLACK - Call your local BRP dealership

518324703

Unavailable

7

LH Suspension Bracket, Black

518324704

Unavailable

8

Rear Cap

518325030

Unavailable

9

CENTER CROSS LINK - Call your local BRP dealership

518324093

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator

518325019

Unavailable

15

GASKET - Call your local BRP dealership

293200096

Unavailable

16

RH Footrest Reinforcement, Black

518324712

Unavailable

17

LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership

518324713

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Not Available As Spare Parts

XXX

Unavailable

22

Pop Rivet 3/16"

390402400

$0.35

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

RH Roller

518323310

Unavailable

25

LH Roller

518323311

Unavailable

26

Center Plate

518324588

Unavailable

27

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

28

Tunnel Reinforcement

518323185

Unavailable

29

Hemlock Rivet, 6.5 mm

293150096

$3.27

30

CENTER REINFORCEMENT - Call your local BRP dealership

518323578

Unavailable

31

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

32

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

33

Tank Bracket

518322791

Unavailable

34

RH Footrest

518325190

Unavailable

35

LH Footrest

518325191

Unavailable

36

RH Frame Reinforcement, Black

518323336

Unavailable

37

LH Frame Reinforcement, Black

518323337

Unavailable

38

RH LINER TUNNEL - Call your local BRP dealership

518325023

Unavailable

39

LH Liner Tunnel

518325024

Unavailable

40

RH BRACKET - Call your local BRP dealership

518323187

Unavailable

41

LH BRACKET - Call your local BRP dealership

518323188

Unavailable
